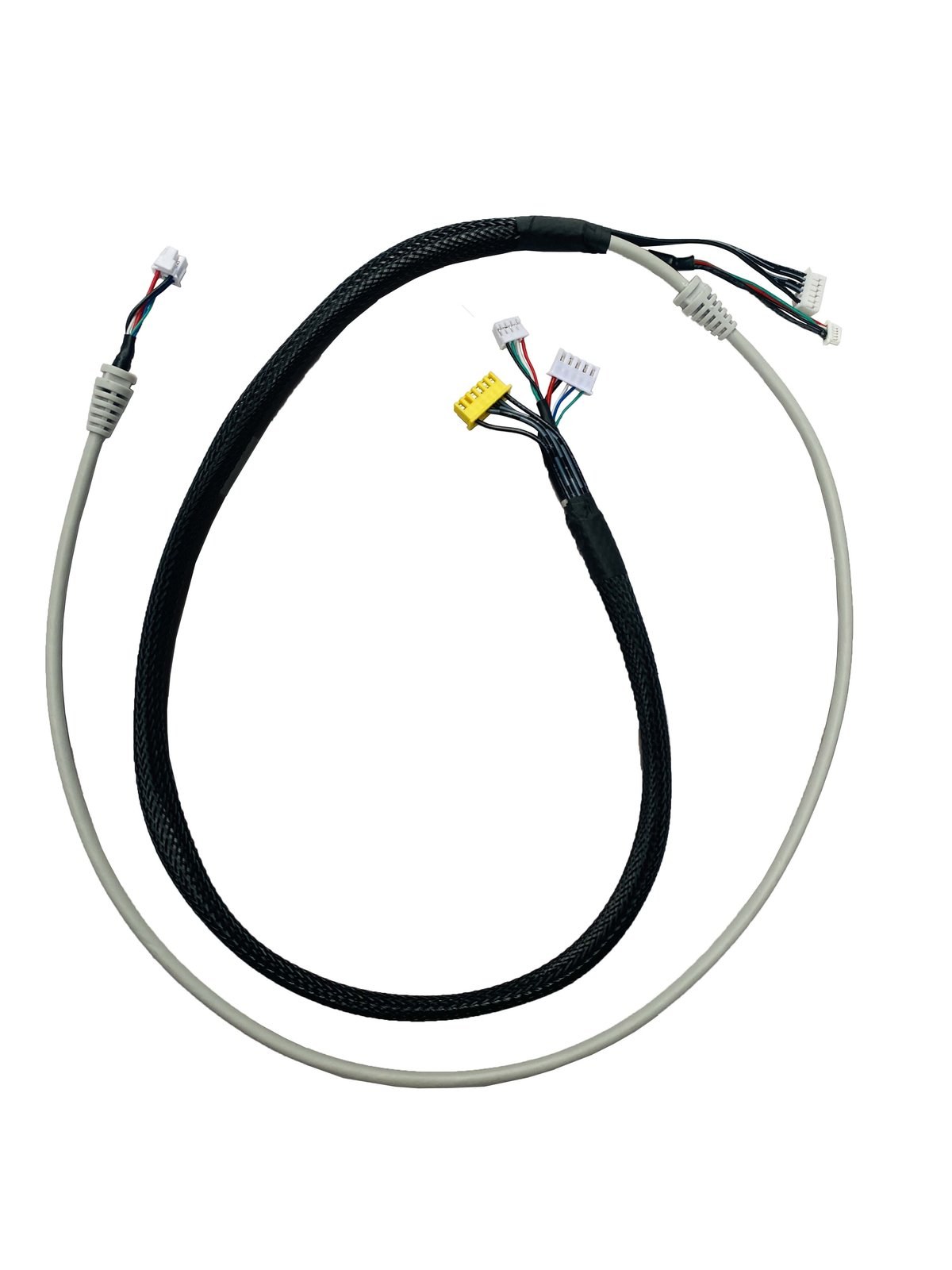

3D printer main wire harness with drag chain support for 3 million cycles

3D Printer Main Wire Harness for Drag Chain | 3M Cycles

High-durability 3D printer main wire harness designed for drag chain applications, rated for 3 million cycles.

Model No.: QCZJTH-325025
Applicable Brands: QCconnector

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM and ODM services to tailor the wire harness to your specific 3D printer models. Custom options may include varying cable lengths, connector types, and shielding requirements to ensure perfect integration. Please provide your technical drawings or specifications for a detailed proposal.

Quality & Testing

Cyclic flexing test (3 million cycles) RoHS material compliance check ISO 9001 process verification

Standards & Compliance

ISO 9001-certified quality management system | factory audited by TÜV Rheinland | RoHS-compliant materials | OEM/ODM capability available. Please note that the certifications listed above refer to the manufacturing facility and material compliance, not a specific product-level certification for this individual item.

Frequently Asked Questions

Q: Is this wire harness suitable for high-speed 3D printers?
A: Yes, it is designed for dynamic applications and rated for 3 million cycles, making it ideal for high-speed and continuous motion environments.

Q: Can I customize the length or connectors?
A: Yes, we support OEM and ODM customization. You can specify the cable length, connector type, and other technical details to fit your equipment.

Q: What quality standards does the manufacturer follow?
A: The factory operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. Materials are RoHS-compliant.

Part Number: QCZJTH-325025

Product Introduction

This product is engineered specifically for the dynamic environment of 3D printers, where continuous movement and flexing are constant. It serves as the primary power and signal conduit within the printer's motion system, ensuring reliable connectivity between the stationary control unit and the moving print head or gantry. The design addresses the critical need for longevity in high-frequency operational scenarios, making it suitable for professional and industrial-grade 3D printing equipment that demands uninterrupted performance.

Constructed with materials compliant with RoHS standards, this wire harness utilizes high-grade conductors and durable insulation to withstand mechanical stress. It is explicitly rated for 3 million cycles when used with a drag chain system, ensuring minimal signal loss and power interruption over extended periods. The manufacturing process adheres to an ISO 9001-certified quality management system, and the factory has been audited by TÜV Rheinland, guaranteeing consistent quality. OEM/ODM capability is available to meet specific technical requirements.

The product offers significant flexibility for customization, allowing buyers to tailor specifications to their unique machinery needs without compromising on durability. Whether for standard replacement or bespoke industrial integration, the harness supports various configurations to fit diverse 3D printer architectures. Contact us to discuss your requirements and request a quotation.

Key Features

High Cycle Durability: Rated for 3 million cycles, ensuring long-term reliability in continuous motion applications typical of 3D printers. Drag Chain Compatible: Specifically designed to operate within drag chain systems, preventing tangling and wear during rapid movement. RoHS Compliant Materials: Manufactured using environmentally friendly materials that meet strict RoHS compliance standards for safety and sustainability. ISO 9001 Certified Production: Produced under an ISO 9001-certified quality management system, ensuring consistent manufacturing quality. Factory Audited Quality: The manufacturing facility is audited by TÜV Rheinland, providing an additional layer of trust in production standards. OEM/ODM Support: Flexible customization options are available to accommodate specific voltage, length, or connector requirements for unique projects.
