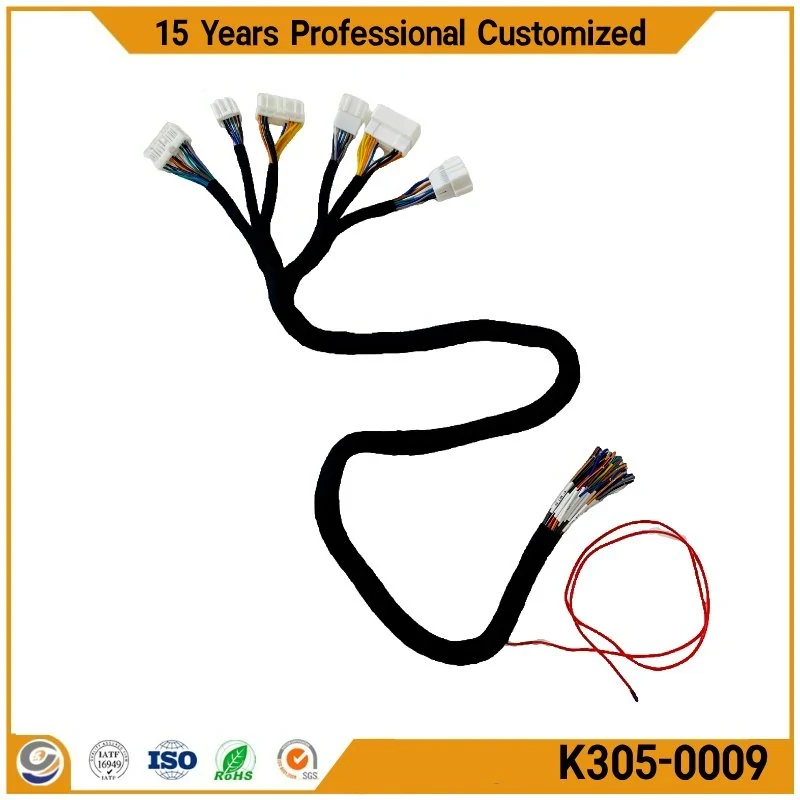

K305-0009 BYD DSP power cable L=1150mm UL 1007 18AWG

BYD DSP Cable L=1150mm | K305-0009 Power Wire Harness

K305-0009 DSP power cable, L=1150mm, UL 1007 18AWG, designed for BYD vehicle amplifier connections.

Model No.: K305-0009
Applicable Brands: BYD
Connector Part No.: DJ7162S-2.3-21 16P connector
Pin Count: 16P
Wire Specification: 1007 18AWG
Cable Length: 1150mm
Voltage / Current: 12~24V
Temperature Range: -20~85°
MOQ: 200 pcs
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

The factory specializes in custom T-harness production where customers provide their specific machine or amplifier unit. We then redesign and mass-produce dedicated T-line harnesses with interfaces exclusively fitted for that machine. This OEM/ODM capability allows for precise adaptation to unique vehicle or audio system requirements.

Quality & Testing

RoHS material compliance verification ISO 9001 quality process audit

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Is this cable compatible with all BYD models?
A: This specific part (K305-0009) is designed for BYD DSP applications. For exact fitment confirmation, please provide your specific vehicle model and amplifier interface details.

Q: Can I order a custom length or connector for this harness?
A: Yes. The factory offers OEM/ODM services where you can provide your machine or amplifier for us to redesign and produce a dedicated T-harness with the required interfaces and length.

Q: What are the material certifications for this wire?
A: All raw materials are RoHS compliant. Supplier SGS RoHS test reports are available for the applicable wire materials used in this assembly.

Part Number: K305-0009

Product Introduction

The K305-0009 is a dedicated DSP power cable engineered specifically for BYD vehicle audio installations. This 1150mm length wire harness ensures precise fitment for connecting DSP amplifiers, eliminating the need for excessive trimming or extension adapters during assembly. It is typically specified by automotive audio integrators and OEM line builders seeking reliable, model-specific power delivery solutions.

Constructed with UL 1007 18AWG wire, this harness provides robust current carrying capacity and durability for automotive environments. The fixed 1150mm length is optimized for standard BYD chassis routing, reducing installation complexity and potential signal interference points. While this specific SKU serves as a reference, the manufacturing facility specializes in custom T-harness production, where customers can provide their specific machine or amplifier unit for bespoke redesign and mass production.

For OEM/ODM projects, the facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. To receive an accurate quotation for this standard part or to initiate a custom T-harness design, please provide your specific machine interface requirements or request the standard sample price.

Key Features

Exact Application Fit: Designed specifically for BYD vehicle DSP systems, ensuring correct length and connector alignment without modification.

Verified Wire Standard: Utilizes UL 1007 18AWG electronic wire, offering reliable performance and durability for automotive power applications.

Optimized Length: Fixed 1150mm cable length reduces installation time and ensures consistent routing for standard amplifier placements.

Custom T-Harness Capability: Factory supports OEM/ODM services by redesigning and mass-producing dedicated T-line harnesses based on customer-provided machines.

Quality Management: Produced in a facility certified to ISO 9001 standards and audited by TÜV Rheinland for consistent manufacturing quality.

Material Compliance: All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials to meet environmental regulations.
