Wire Harness for Cadillac 360 Panoramic View Original Screen Upgrade
SW-ZIV-020/KDLK 56P power harness for Cadillac 360 panoramic view screen upgrades, featuring Nissan Altima 12P connector.
- Model No.
- *0010/200006
- Applicable Brands
- Cadillac
- Connector Part No.
- KDLK-56P connector
- Pin Count
- 56P
- Wire Specification
- 1007 20AWG / AVSS 0.5mm²
- Voltage / Current
- 12~24V
- Temperature Range
- -40~105°
- Weight
- 100.5
- MOQ
- 500
- Sample
- Paid samples; request a sample quotation.
- Lead Time
- Made to order. Contact us to confirm production lead time.
Customization Options
We support OEM and ODM customization for the SW-ZIV-020/KDLK 56P harness. Buyers can provide specific connector requirements, wire lengths, or pinout diagrams to tailor the harness to their decoder or vehicle model.
Quality & Testing
Visual Inspection Continuity Testing Insulation Resistance Testing
Standards & Compliance
QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.
Frequently Asked Questions
A: This harness is specified for Cadillac 360 panoramic view screen upgrades. Please provide your vehicle's multimedia connector details to verify fitment.
Q: What information do I need to provide for a custom quote?
A: Please provide photos of your car's multimedia connector and the decoder model you are using to ensure the correct pinout and connector type.
Q: Are the wire materials RoHS compliant?
A: Yes, all raw materials used in our harnesses are RoHS compliant, and supplier SGS RoHS test reports are available for applicable wire materials.
Part Number: *0010/200006
Product Introduction

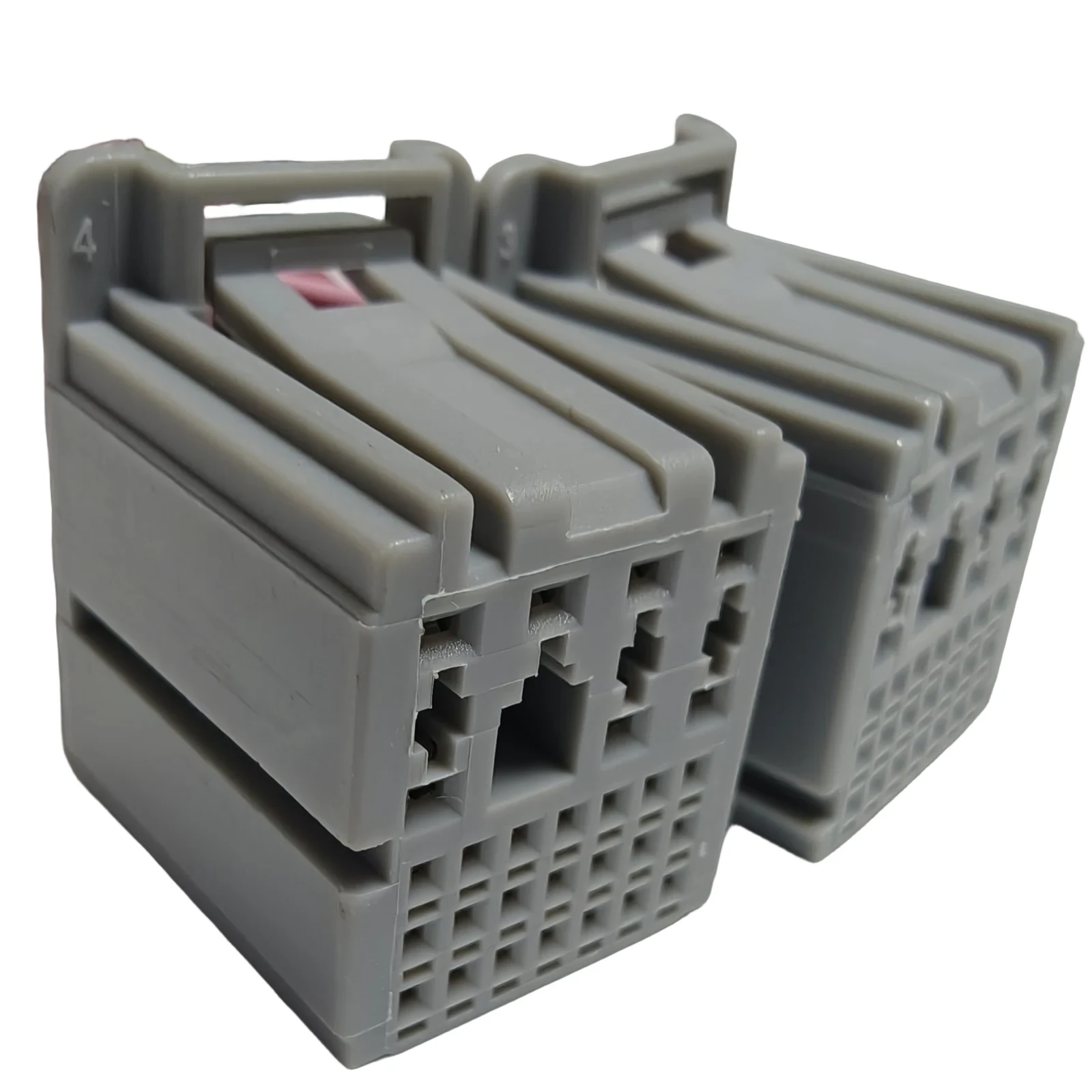

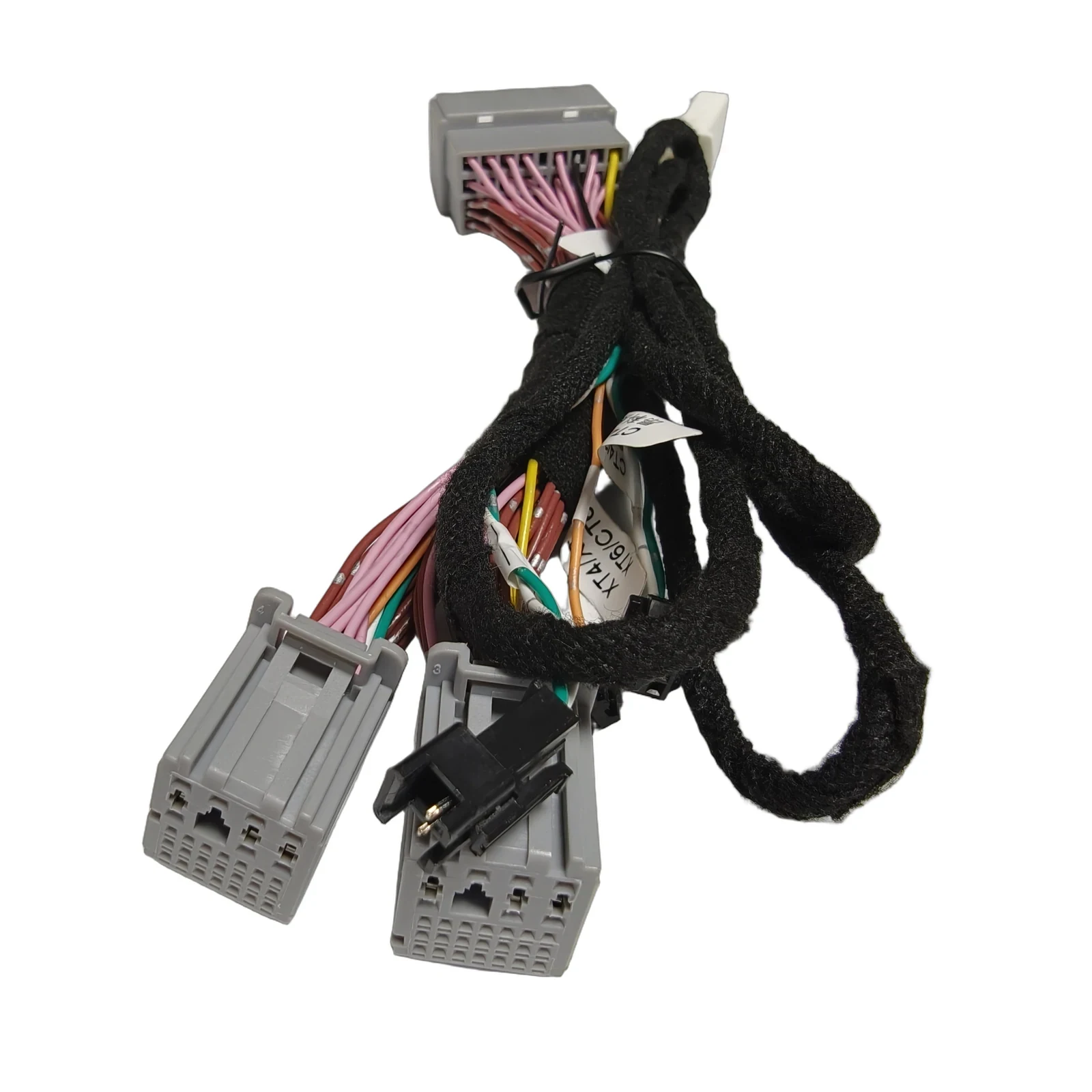

The SW-ZIV-020/KDLK 56P power harness is a specialized automotive wiring solution designed for upgrading Cadillac vehicles with 360-degree panoramic view systems. It serves as a critical interface between the vehicle's existing multimedia or audio connectors and aftermarket 360 decoder units, enabling seamless integration without damaging original wiring.

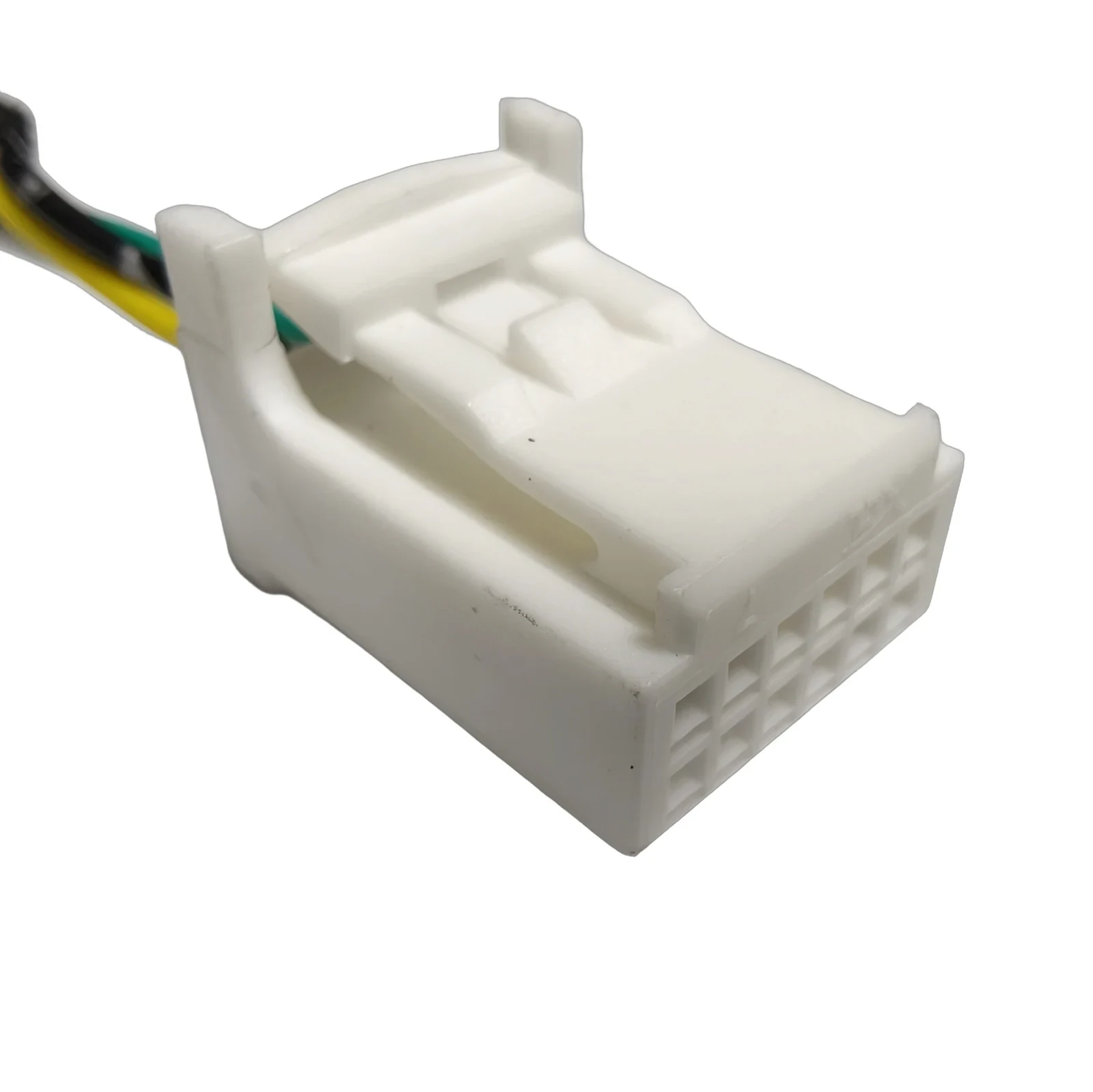

This harness utilizes a 56-pin male/female connector configuration to bridge the primary power, ACC, ground, and CAN bus signals. It incorporates a secondary Nissan Altima 12P connector for specific signal routing, ensuring compatibility with standard AVSS thin-wall automotive wire standards. The design facilitates a non-destructive connection, preserving the integrity of the car's original electrical system while providing stable power and data transmission for the panoramic display.
We support OEM and ODM customization for this harness type. To ensure accurate fitment and quotation, please provide your vehicle's specific multimedia connector photos or the exact decoder model you intend to use. Our ISO 9001-certified facility, audited by TÜV Rheinland, ensures all raw materials are RoHS compliant, with supplier SGS test reports available for applicable wire materials. Contact us to confirm production lead time and pricing for your specific requirements.
Key Features
- Connector Configuration: Features a SW-ZIV-020/KDLK 56P male/female connector for secure, high-density signal transmission.
- Compatibility Interface: Includes a Nissan Altima 12P connector to facilitate specific signal routing for compatible decoder units.
- Wire Standard: Constructed with verified 1007 20AWG and AVSS 0.5mm² wires for reliable power and data integrity.
- Non-Destructive Design: Allows for seamless integration of 360 panoramic screens without cutting or damaging original vehicle wiring.
- Signal Bridging: Effectively bridges power, ACC, ground, and CAN signals from the car's multimedia connector to the decoder.
- Quality Assurance: Manufactured in an ISO 9001-certified facility audited by TÜV Rheinland, ensuring consistent build quality.
