Dongfeng Power Cable SW-ZIV-055 | 40P+20P+12P Connector

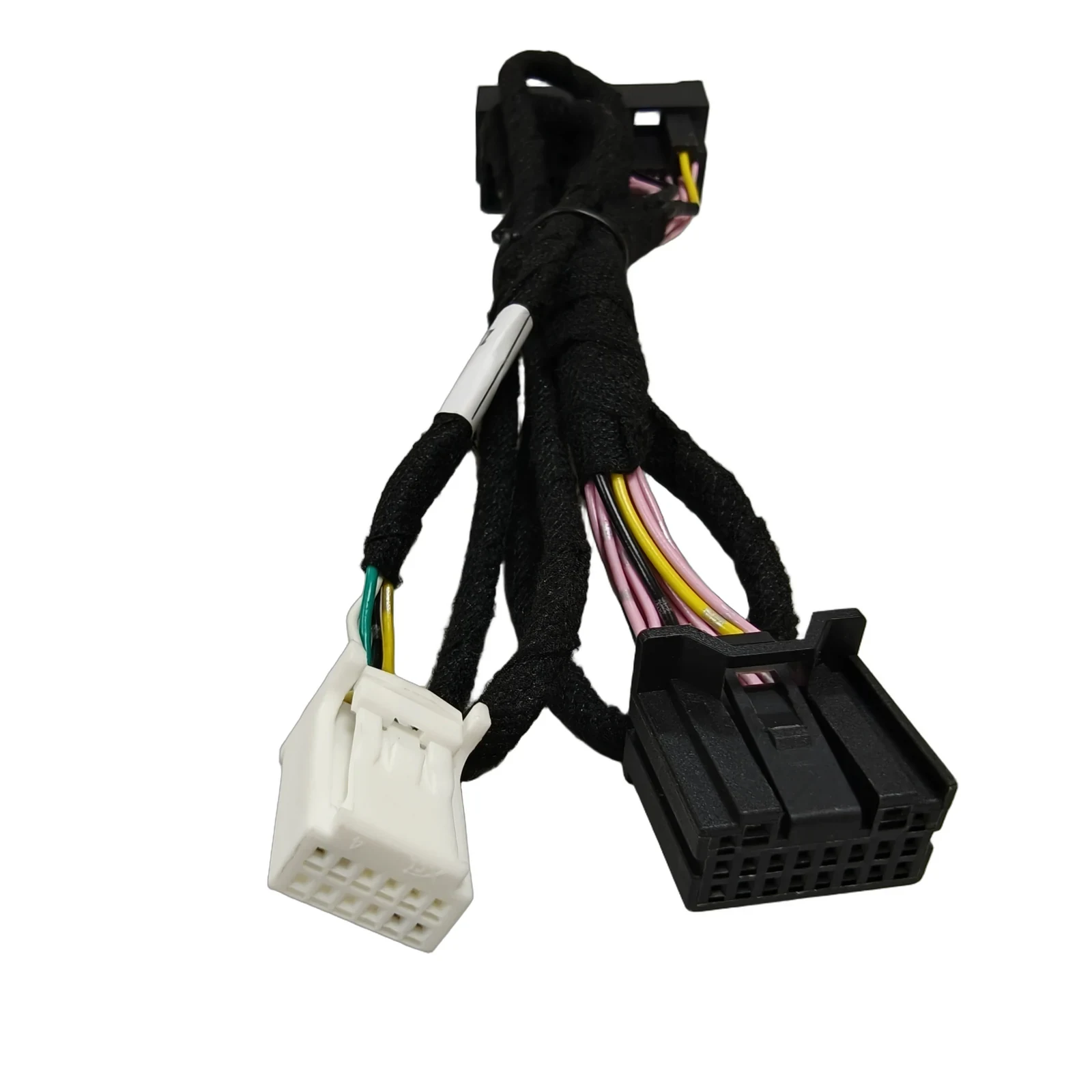

AVSS 0.85mm² Dongfeng No.2 power cable with Jingyi 40P female, 20P male, and Teana 12P connectors.
- Model No.
- *0010/200051
- Applicable Brands
- Dongfeng
- Vehicle Models
- Jingyi, Teana
- Connector Part No.
- X5-40P connector
- Pin Count
- 40P
- Wire Specification
- AVSS 0.85mm²
- Voltage / Current
- 12~24V
- Temperature Range
- -40~105°
- Weight
- 64
- MOQ
- 500
- Sample
- Paid samples; request a sample quotation.
- Lead Time
- Made to order. Contact us to confirm production lead time.
Customization Options
OEM/ODM capability is available for volume orders. Buyers may provide specific connector types, wire lengths, or pin configurations for custom assembly. Please provide detailed requirements for accurate quotation and engineering review.
Quality & Testing
RoHS compliance verification for raw materials ISO 9001 quality management system processes
Standards & Compliance
QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.
Frequently Asked Questions
A: The cable features a mixed connector setup: 40P female Jingyi, 20P male, and 12P Teana connectors.
Q: Is this cable compatible with other Dongfeng models besides Jingyi and Teana?
A: This specific harness (SW-ZIV-055) is specified for Dongfeng No.2 applications. Please provide your vehicle details for compatibility verification.
Q: What is the minimum order quantity for this power cable?
A: The MOQ is 500 PCS. Paid samples are available for evaluation.
Part Number: *0010/200051
Product Introduction
This Dongfeng No.2 power cable, designated SW-ZIV-055, is a specialized automotive wiring assembly designed for critical power distribution within Dongfeng vehicle architectures. It serves as a direct replacement or OEM-specification component for procurement buyers and engineers managing power train or chassis electrical systems. The harness integrates distinct connector interfaces to bridge power sources to specific vehicle modules, ensuring reliable signal and power transmission in high-vibration environments.

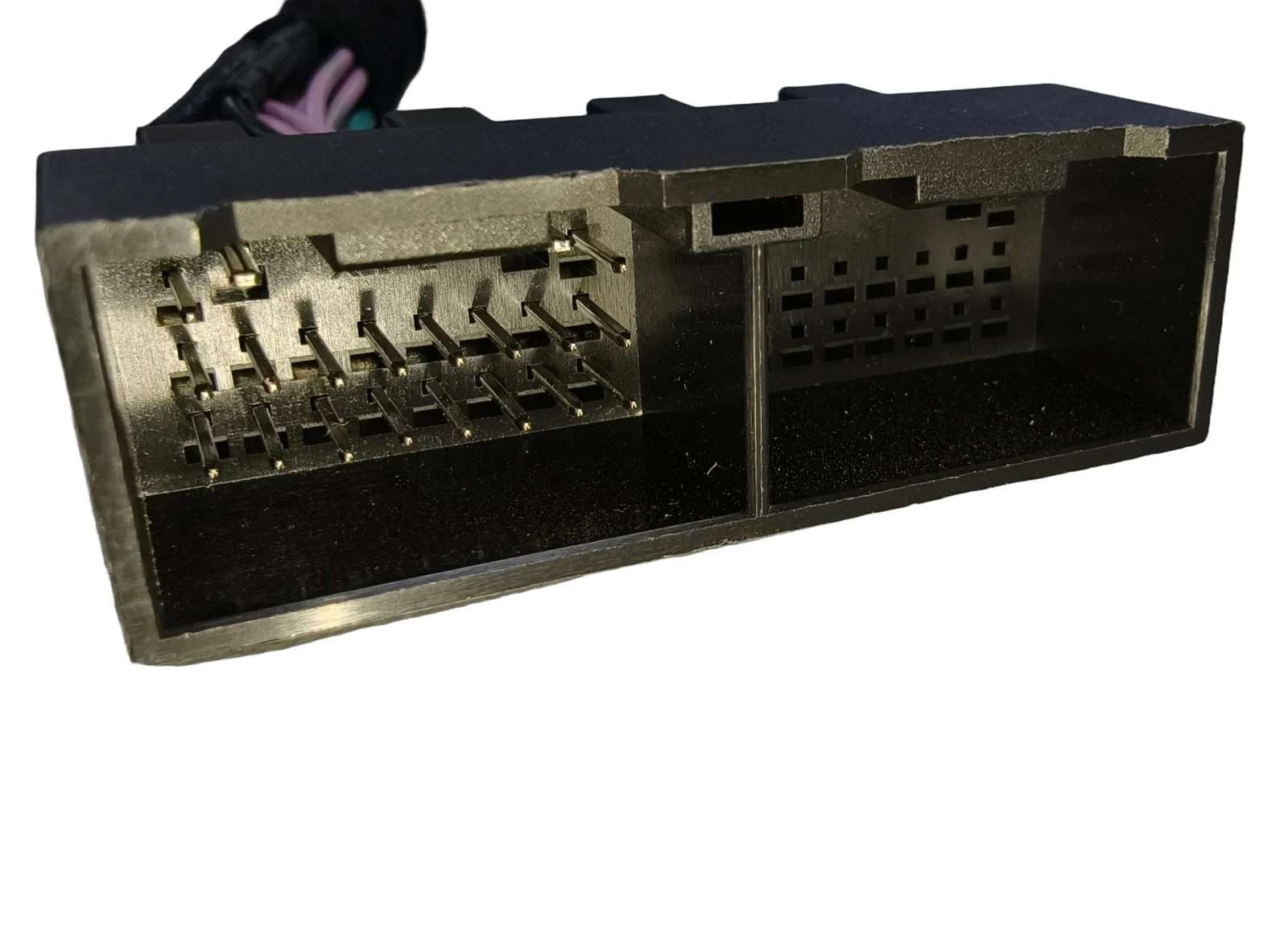

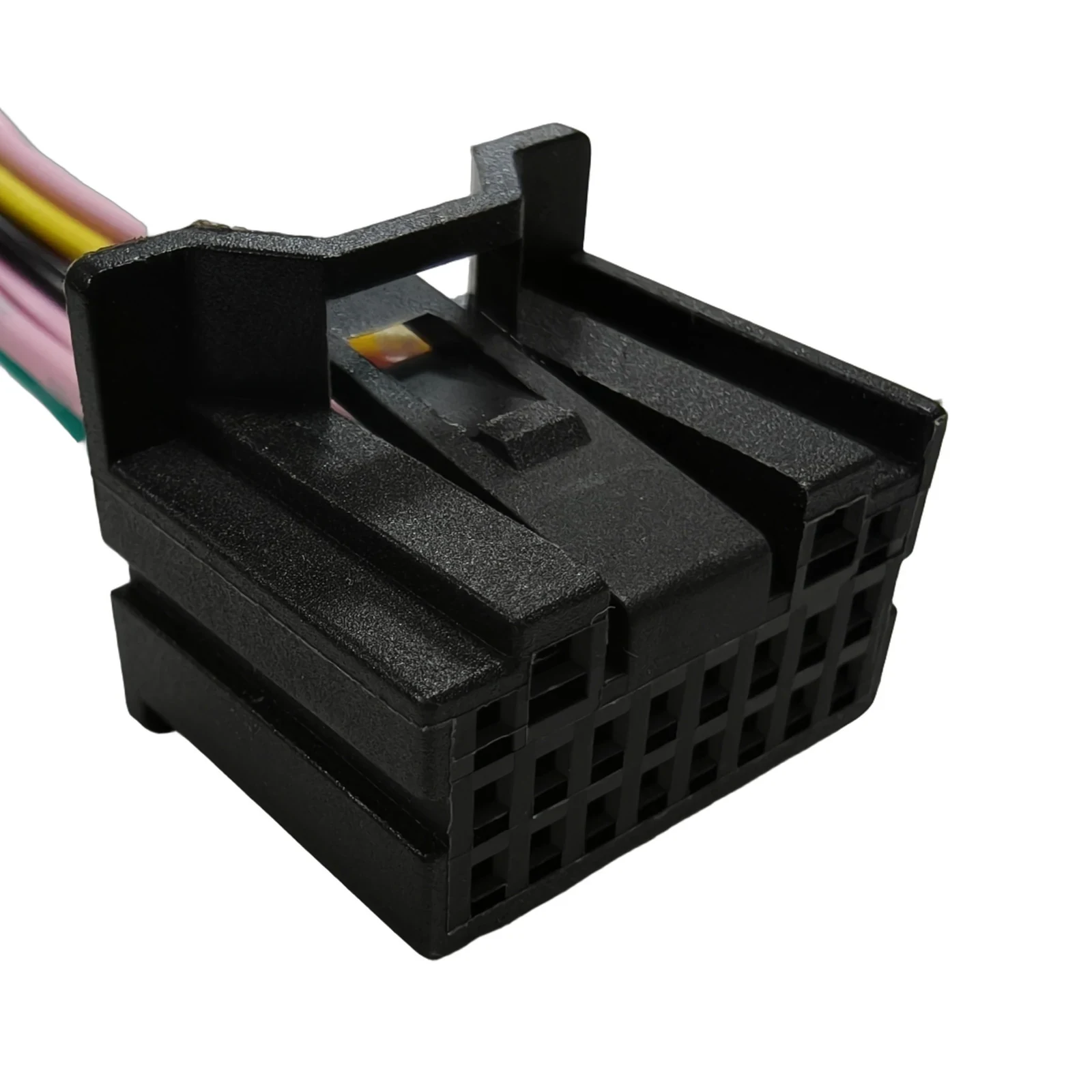

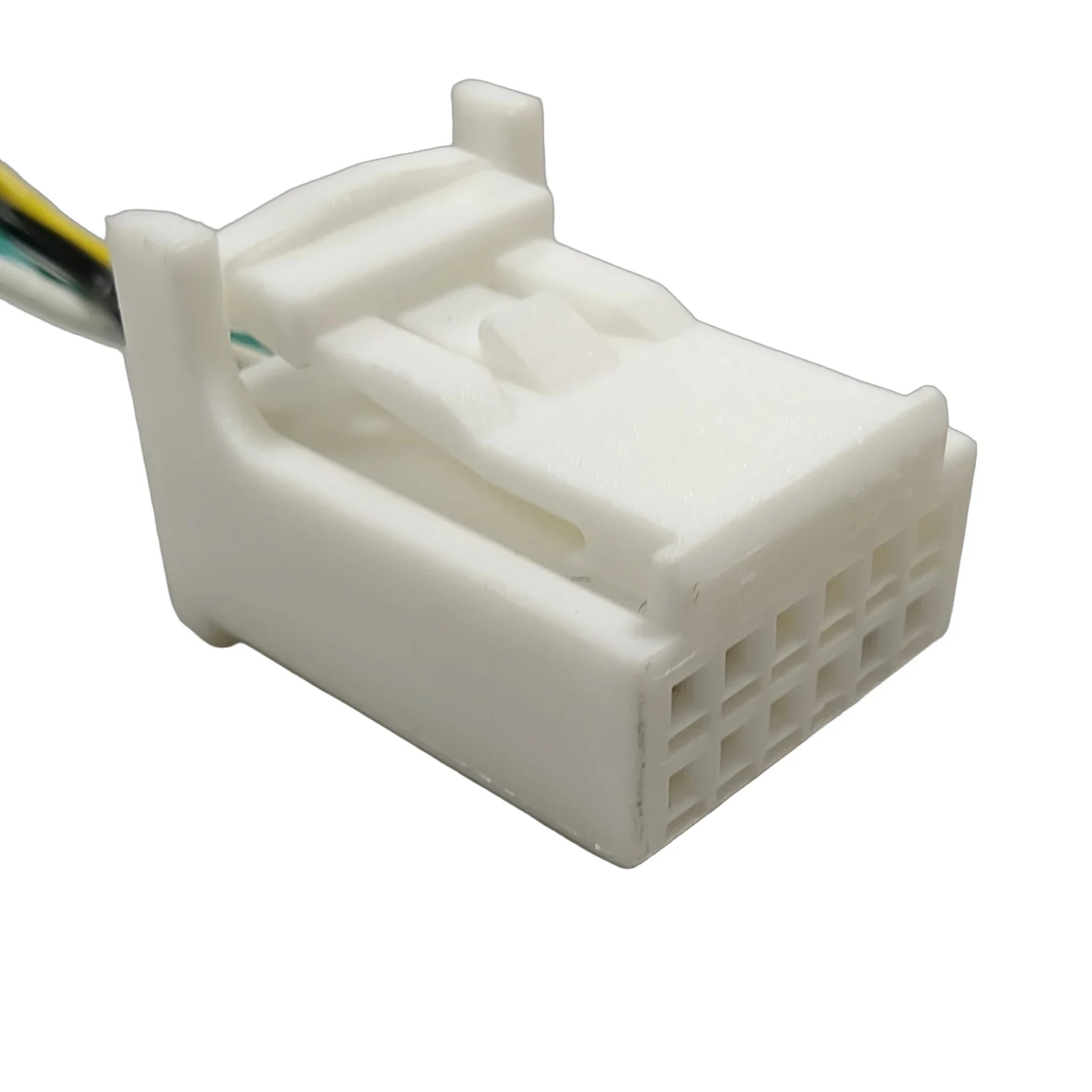

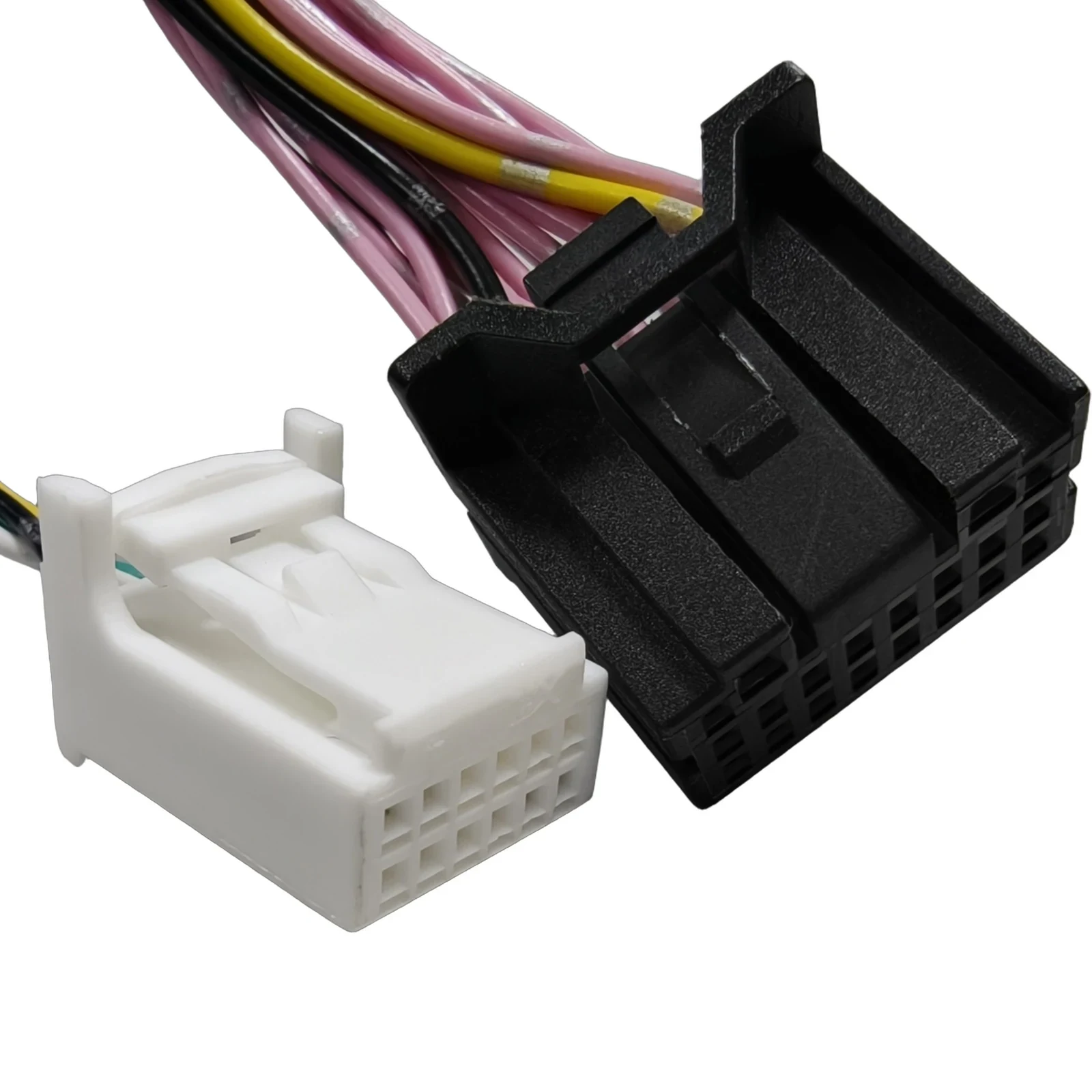

Constructed with AVSS 0.85mm² thin-wall automotive wire, this cable offers a balance of flexibility and current-carrying capacity suitable for compact engine bays or chassis routing. The assembly features a mixed connector configuration: a 40-pin female Jingyi interface, a 20-pin male connector, and a 12-pin Teana connector. This specific pinout and connector combination addresses unique mating requirements for Dongfeng platforms, eliminating the need for adapter harnesses. The AVSS standard ensures durability against heat and oil exposure typical in automotive applications.
For accurate procurement, buyers should provide the Article No. *0010/200051 or the full specification SW-ZIV-055 to ensure compatibility. We support OEM/ODM customization for volume orders, backed by an ISO 9001-certified quality management system and factory audits by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your specific quantity and delivery requirements to receive a precise quotation.
Key Features
Connector Configuration: Integrates Jingyi 40P female, 20P male, and Teana 12P connectors for specific Dongfeng platform mating.
Wire Standard: Utilizes AVSS 0.85mm² thin-wall automotive wire, providing flexibility and durability for compact routing.
Application Specificity: Designed exclusively for Dongfeng No.2 power cable applications, ensuring precise fitment.
Electrical Performance: AVSS 0.85mm² conductor supports standard automotive power distribution requirements.
Quality Assurance: Manufactured under ISO 9001-certified quality management system with TÜV Rheinland factory audits.
Material Compliance: All raw materials are RoHS compliant, with supplier SGS test reports available for wire materials.
