DSP Wire Harness for Mercedes-Benz 26P/2P (MDS206) (900-)

Plug-and-play DSP modification wire harness for Mercedes-Benz subwoofers with 26P adapter, 2P sub, and 5557 5m cable.

Model No.: *0000/100316
Applicable Brands: Mercedes-Benz
Vehicle Models: Electric Vehicle
Connector Part No.: Mercedes-Benz 26P connector
Pin Count: 26P
Wire Specification: 1007 20AWG / AVSS 2mm²
Cable Length: 5m
Voltage / Current: 12~24V
Temperature Range: -40~105°
Weight: 453
MOQ: 200 pcs
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We support OEM/ODM customization for DSP wire harnesses. Buyers can provide their specific DSP amplifier units, and we will redesign and mass-produce dedicated T-harnesses with interfaces exclusively fitted for that machine. Please provide your target machine model and interface requirements for an accurate quotation.

Quality & Testing

RoHS compliance testing for raw materials

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Does this harness require cutting or soldering the original vehicle wires?
A: No, the MDS206 900- is designed for plug-and-play installation. It connects directly to the original vehicle connector without the need for cutting or soldering.

Q: What information do I need to provide for a custom DSP harness quotation?
A: To receive an accurate quotation for a customized harness, please provide the specific DSP amplifier model or unit you intend to connect, along with any interface requirements.

Q: Is this harness compatible with all Mercedes-Benz models?
A: This harness is specified for Mercedes-Benz DSP systems with 26P and 2P subwoofer connections. Please verify your specific vehicle's connector type and DSP configuration for compatibility.

Part Number: *0000/100316

Product Introduction

The MDS206 900- is a specialized DSP modification wire harness designed for Mercedes-Benz audio systems, specifically facilitating the connection of subwoofers and DSP amplifiers. It serves as a critical interface for automotive audio engineers and procurement specialists looking to integrate aftermarket DSP units without altering the vehicle's original wiring architecture.

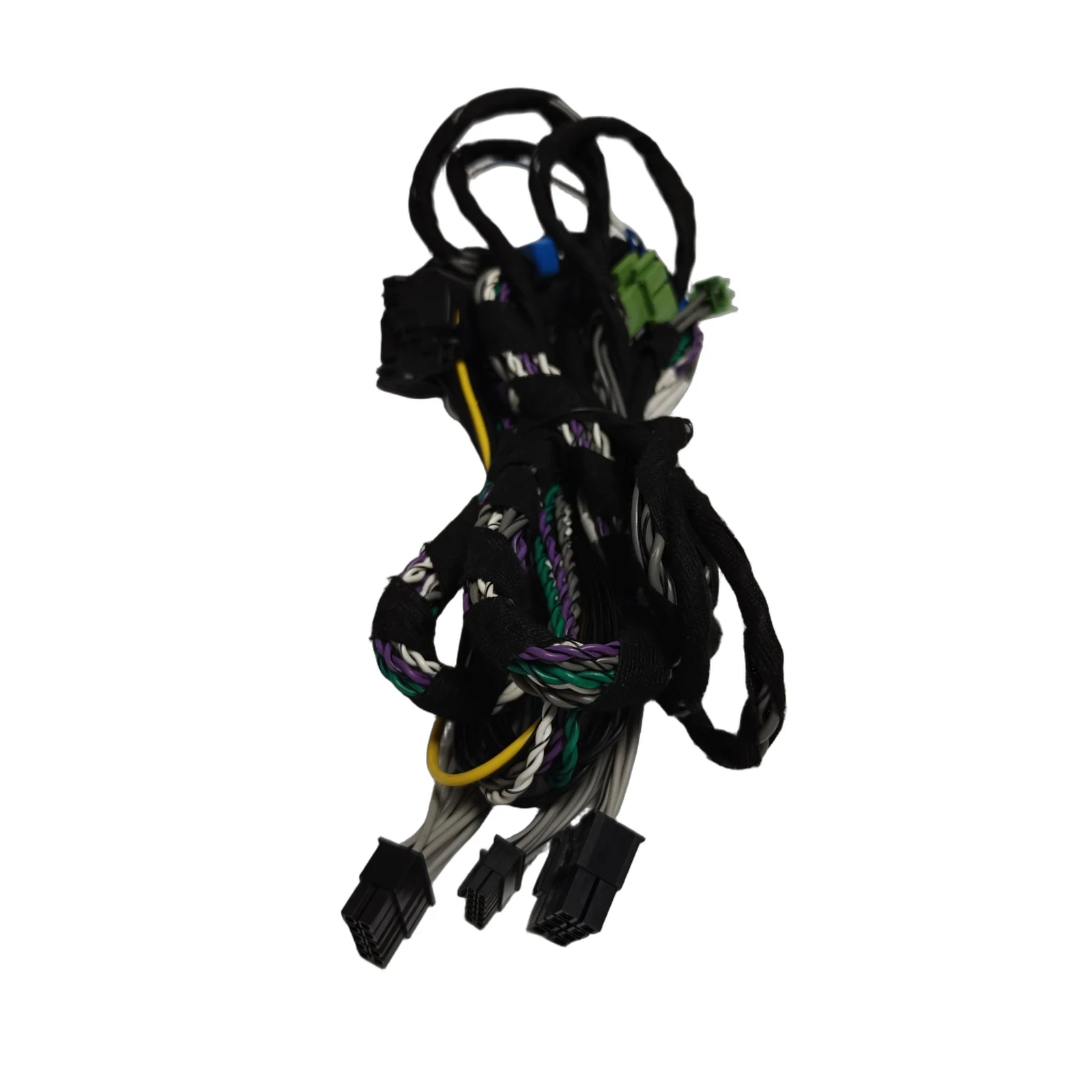

This harness features a 26P male/female adapter for seamless signal routing, a dedicated 2P connection for the subwoofer, and a 5557 5m cable for extended reach. Constructed with standard AVSS or UL1007 series wires, it ensures signal stability and durability. The design allows for factory-position installation, eliminating the need for wire cutting or soldering, which preserves the integrity of the original vehicle connectors.

For projects requiring specific machine interfaces, we offer robust OEM/ODM customization capabilities. Buyers can provide their specific DSP amplifier units, and we will redesign and mass-produce dedicated T-harnesses with interfaces exclusively fitted for that machine. To obtain an accurate quotation, please provide your target machine model and any specific interface requirements.

Key Features

Plug-and-Play Design: Enables direct connection to the original vehicle connector without breaking wires or requiring soldering, ensuring a clean and reliable installation.

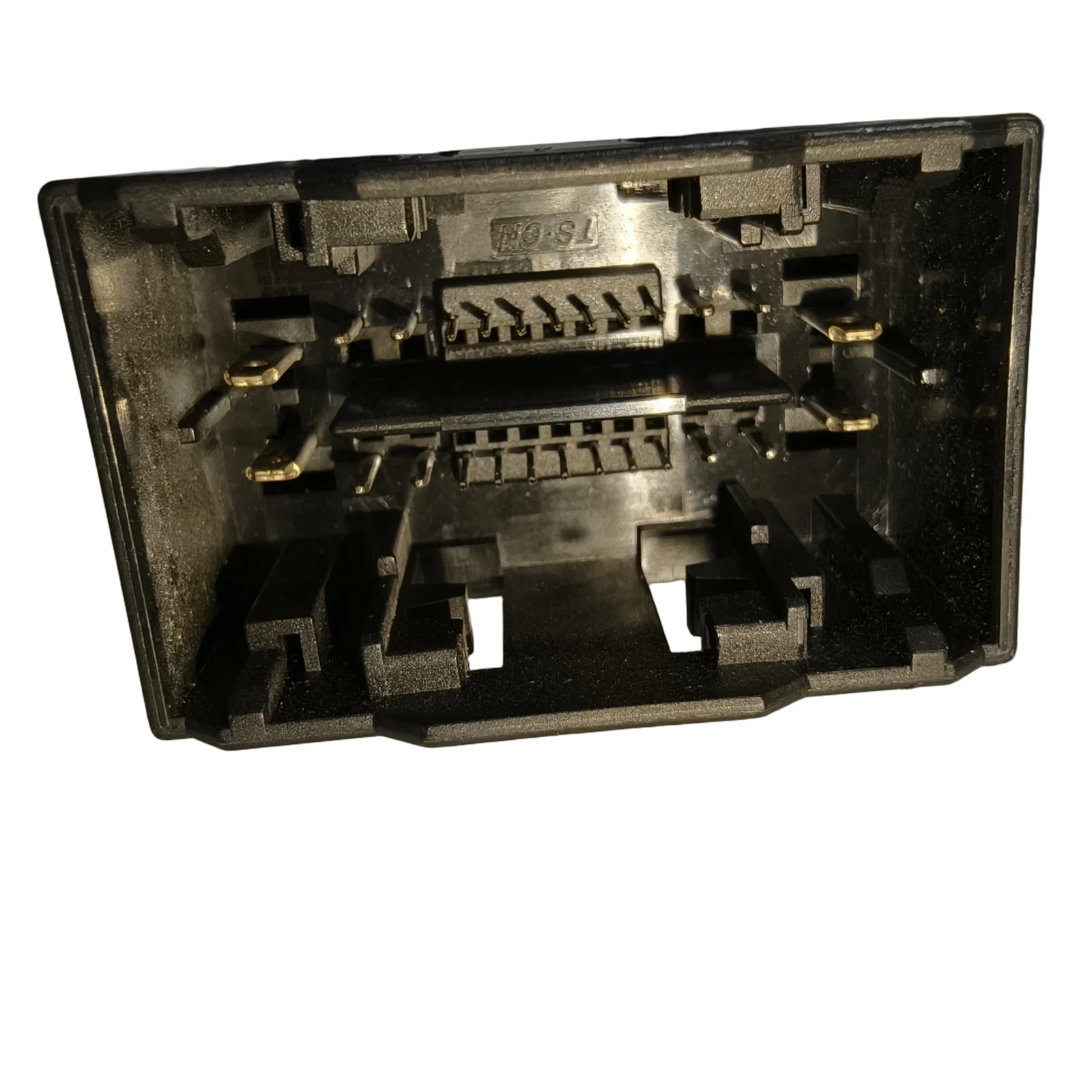

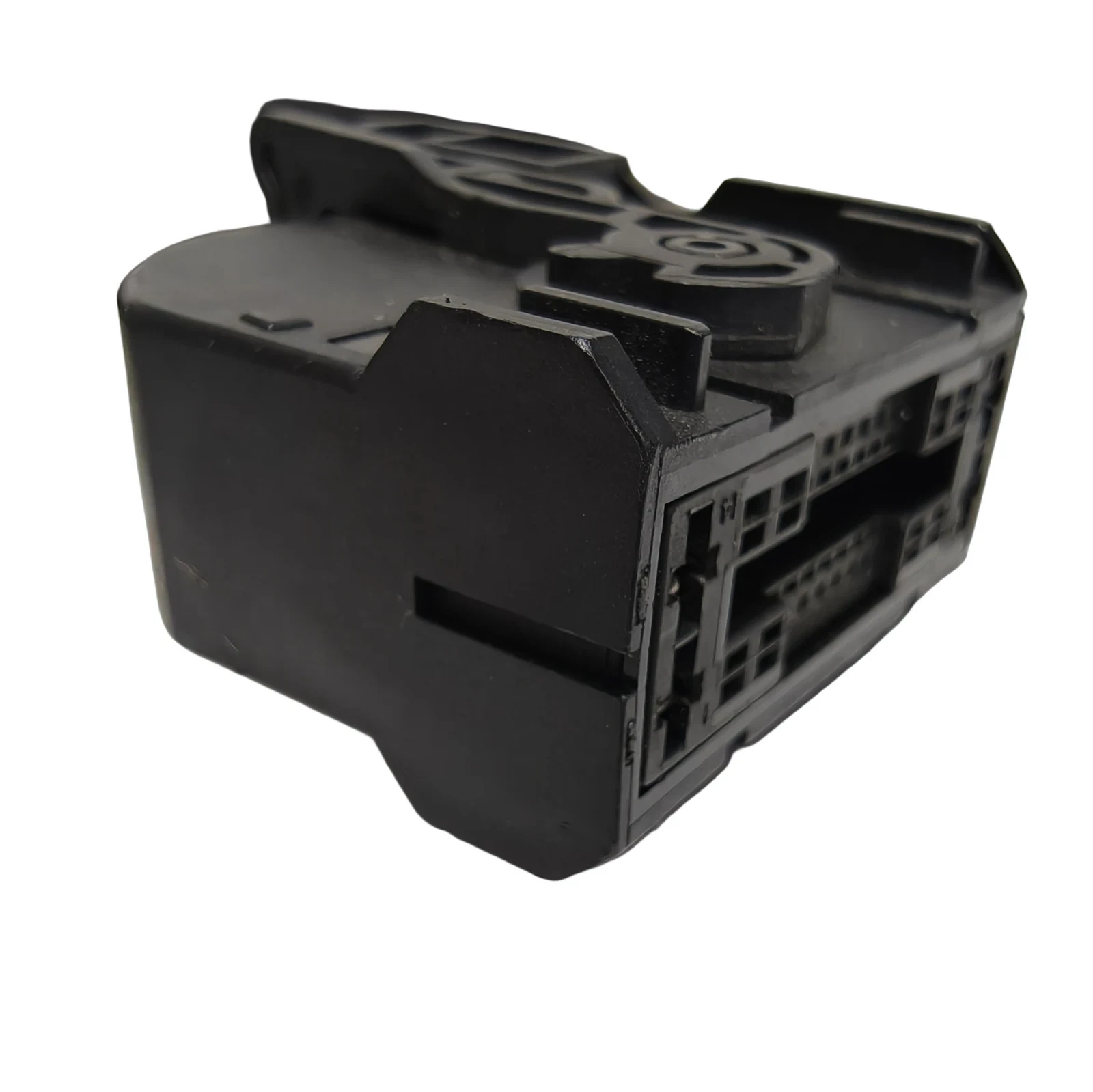

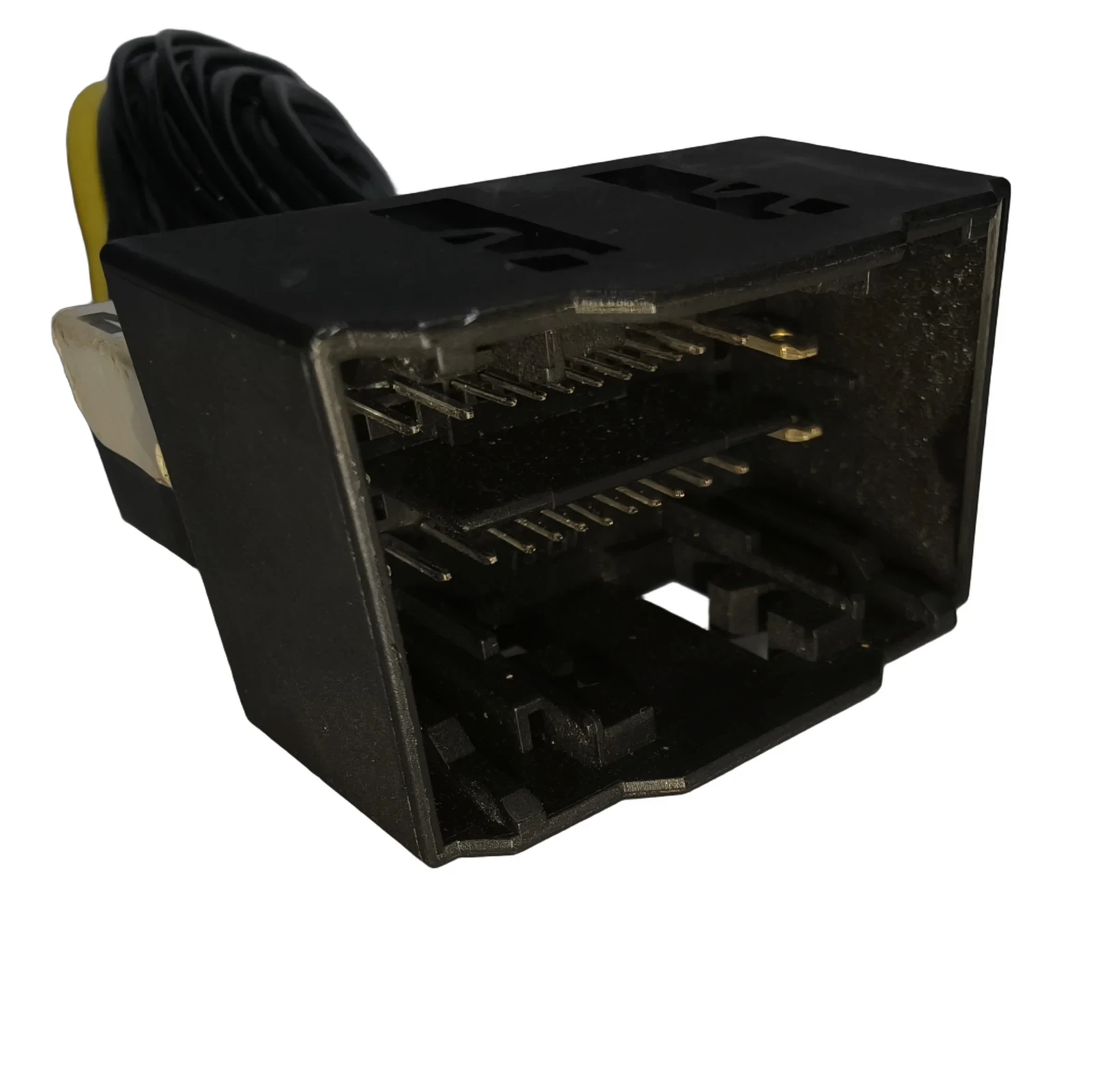

26P Adapter Integration: Includes a 26P male/female adapter that bridges the gap between the factory harness and the DSP amplifier, preserving signal integrity.

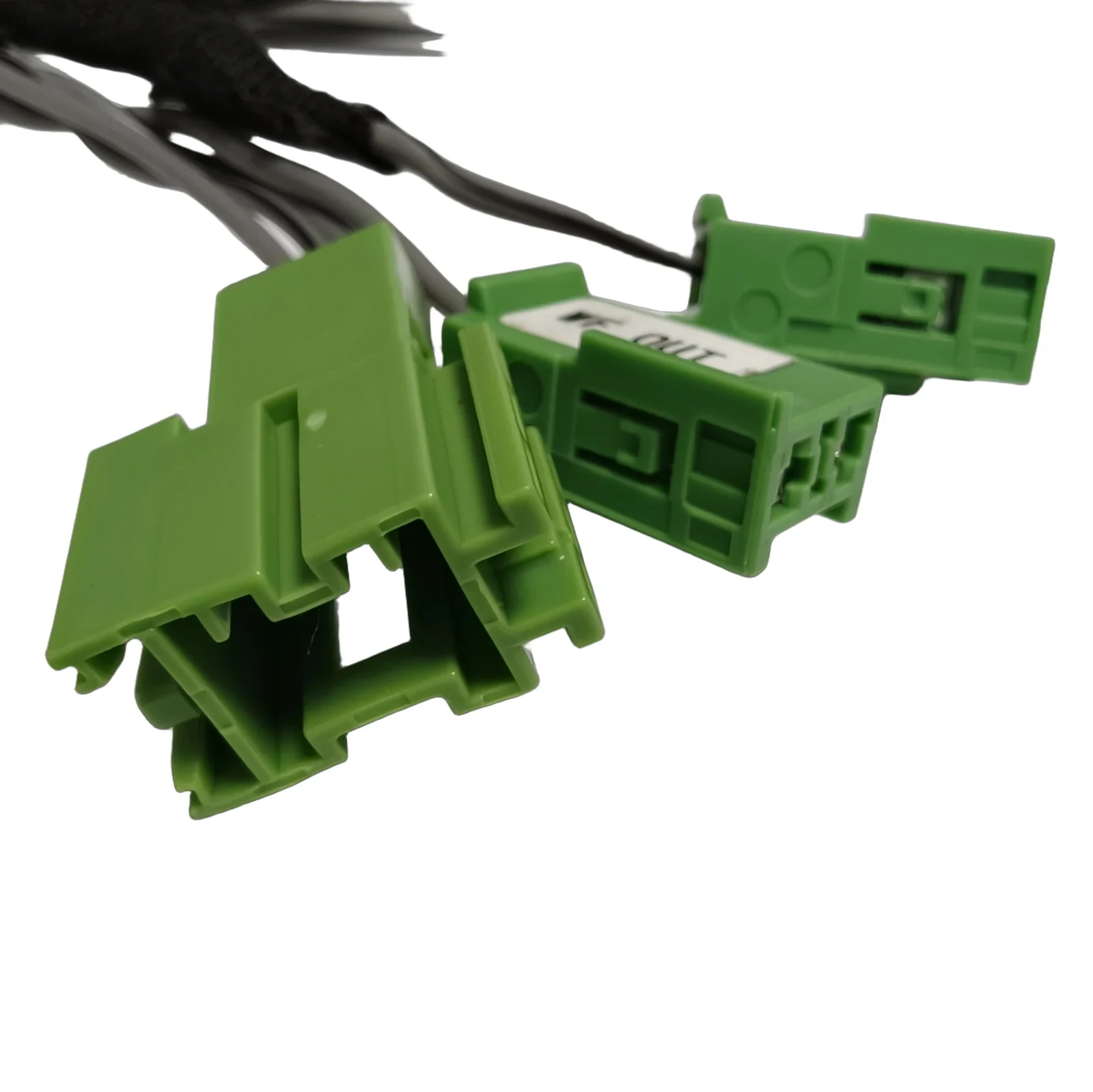

Dedicated Subwoofer Output: Features a specific 2P connector for subwoofer connection, simplifying the integration of low-frequency audio components.

Extended Cable Length: Comes with a 5557 5m cable, providing ample length for routing connections to DSP amplifiers located away from the head unit.

High-Quality Wiring: Utilizes standard AVSS or UL1007 series wires, ensuring durability and electrical performance suitable for automotive environments.

Customization Capability: Supports OEM/ODM services where dedicated T-harnesses can be designed and mass-produced based on customer-provided DSP amplifier units.
