GAC Trumpchi Power Cable SW-ZIV-067 56P Harness | AVSS

OEM power cable for GAC Trumpchi featuring SW-ZIV-067 56P connectors and AVSS 0.5mm² wire.

Model No.: *0010/200034
Applicable Brands: GAC Trumpchi
Vehicle Models: GAC Trumpchi
Connector Part No.: KDLK-56P connector
Pin Count: 56P
Wire Specification: AVSS 0.5mm²
Voltage / Current: 12~24V
Temperature Range: -40~105°
Weight: 100
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

OEM/ODM customization is available for this power cable, including adjustments to connector types, wire specifications, and harness geometry. Buyers should provide detailed engineering drawings or mating part information for precise manufacturing.

Quality & Testing

Continuity testing Insulation resistance testing Hi-pot testing Connector mating force testing

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the primary application of this power cable?
A: This power cable is designed for GAC Trumpchi vehicles, serving as a critical component in the vehicle's electrical power distribution system.

Q: What information do I need to provide for an OEM quote?
A: Please provide the specific vehicle model, connector details, wire length, and any unique routing or termination requirements for an accurate quotation.

Q: Are the materials used in this harness RoHS compliant?
A: Yes, all raw materials are RoHS compliant, and supplier SGS RoHS test reports are available for the applicable wire materials used in the assembly.

Part Number: *0010/200034

Product Introduction

This product is a specialized power cable assembly designed for GAC Trumpchi vehicles, facilitating critical electrical connections within the power distribution system. It is typically specified by automotive engineers and procurement buyers requiring precise OEM-compliant wiring solutions for vehicle manufacturing or aftermarket replacement.

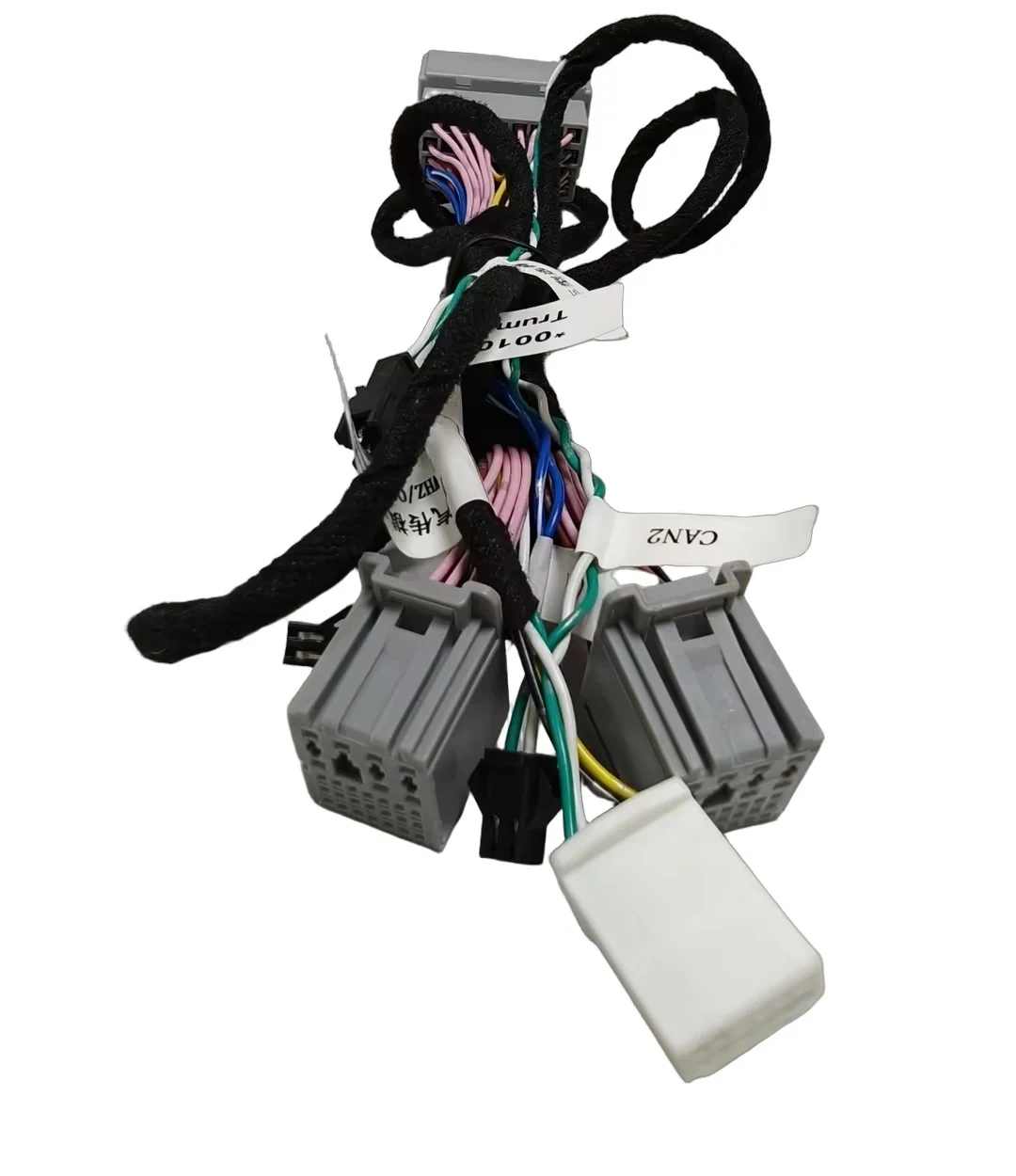

The harness utilizes SW-ZIV-067/KDLK connectors with a 56-pin male/female configuration, integrated with an Altima 12P interface. Constructed with AVSS 0.5mm² thin-wall automotive wire, it ensures reliable signal transmission and power delivery in compact spaces. The design supports efficient routing and secure mating, addressing the need for durable, space-saving electrical interconnects in modern automotive architectures.

We support comprehensive OEM/ODM scope for this power cable, allowing for customization based on specific vehicle requirements. To obtain an accurate quotation, please provide the exact application details, connector specifications, and any unique routing or length requirements. Our facility operates under an ISO 9001-certified quality management system, is audited by TÜV Rheinland, and uses RoHS-compliant raw materials with available supplier SGS test reports. Contact us to discuss your specific project needs.

Key Features

OEM Compatibility: Designed specifically for GAC Trumpchi applications, ensuring precise fitment and reliable performance in original vehicle systems.

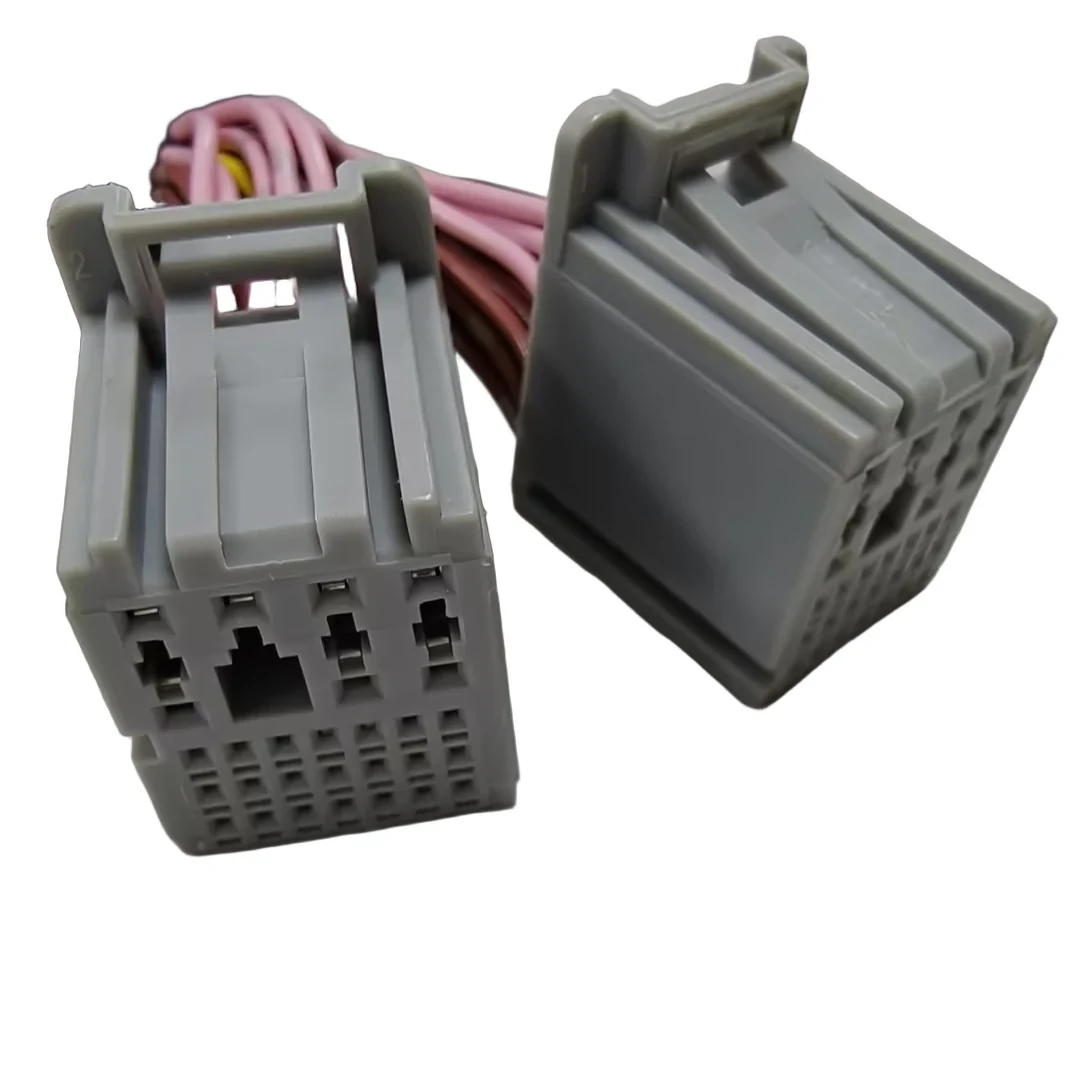

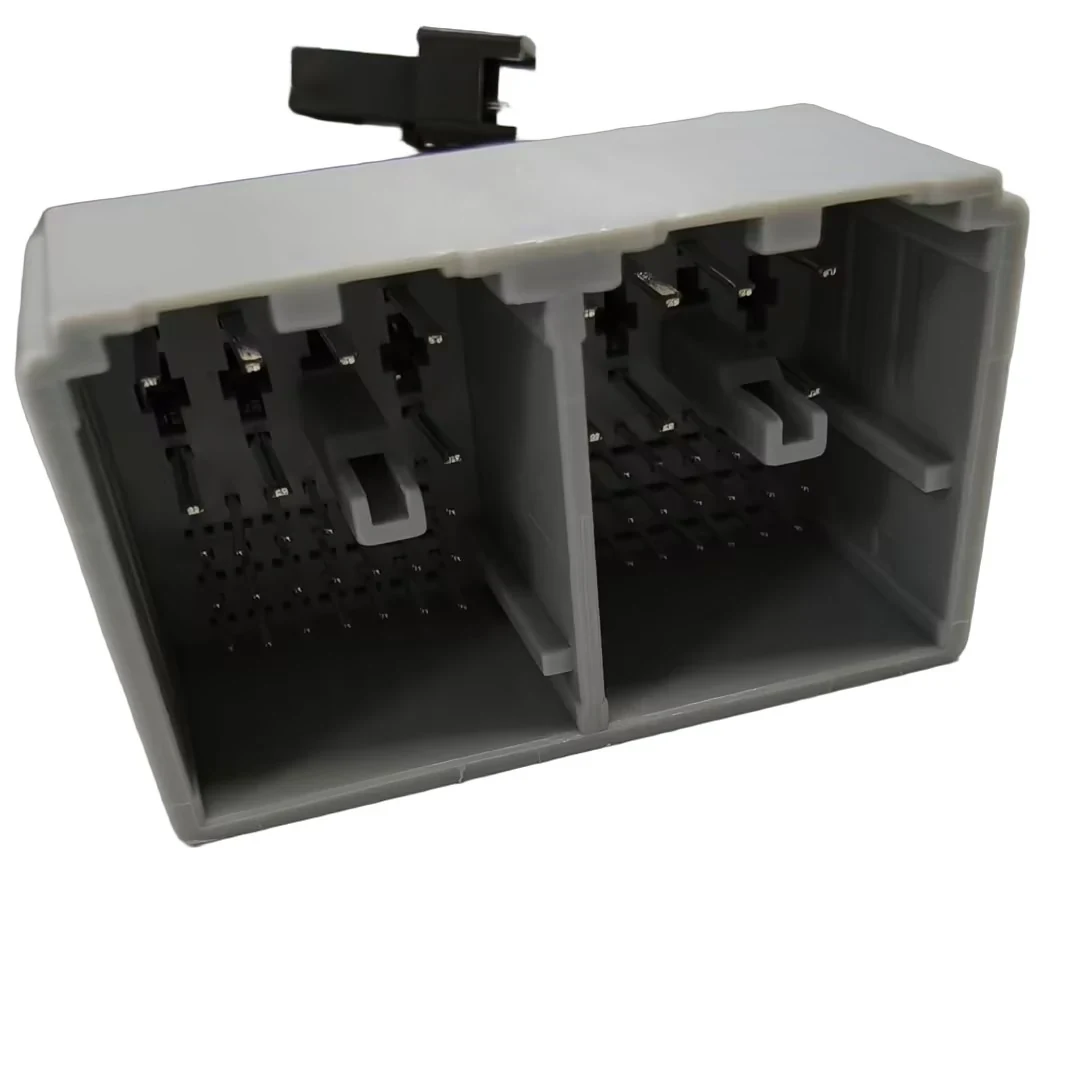

Connector Configuration: Features SW-ZIV-067/KDLK 56P male/female connectors combined with an Altima 12P interface for versatile electrical connectivity.
Wire Specification: Utilizes AVSS 0.5mm² thin-wall automotive wire, meeting Japanese standards for durability and signal integrity in compact harnesses.
Precision Engineering: Manufactured to strict tolerances to ensure consistent connector mating and reliable electrical performance across varying conditions.
RoHS Compliant Materials: All raw materials used in production are RoHS compliant, with supplier SGS test reports available for applicable wire materials.
Quality Assurance: Produced in a factory audited by TÜV Rheinland under an ISO 9001-certified quality management system for consistent high standards.
