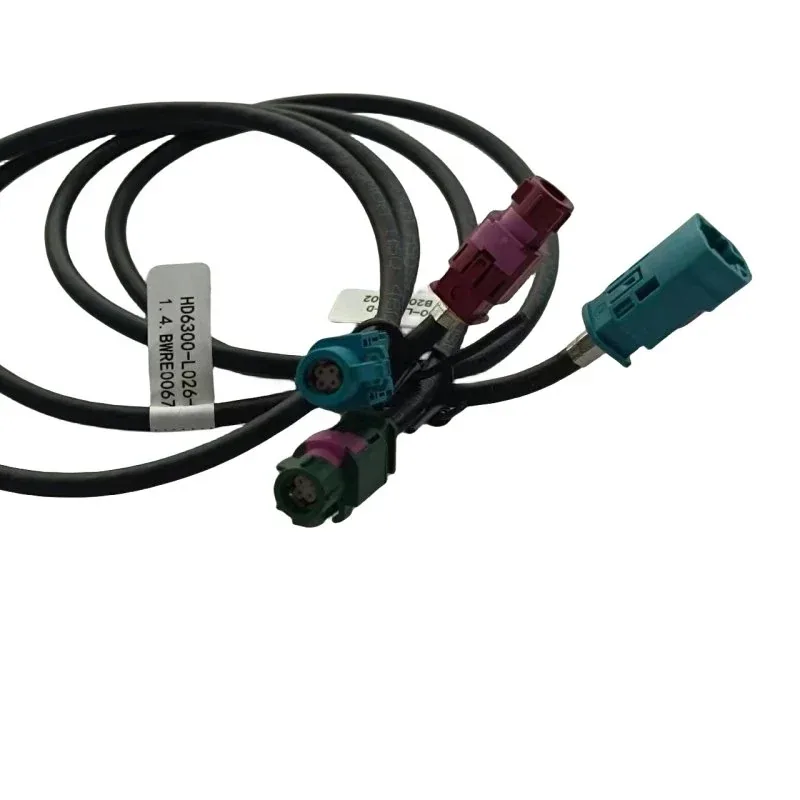

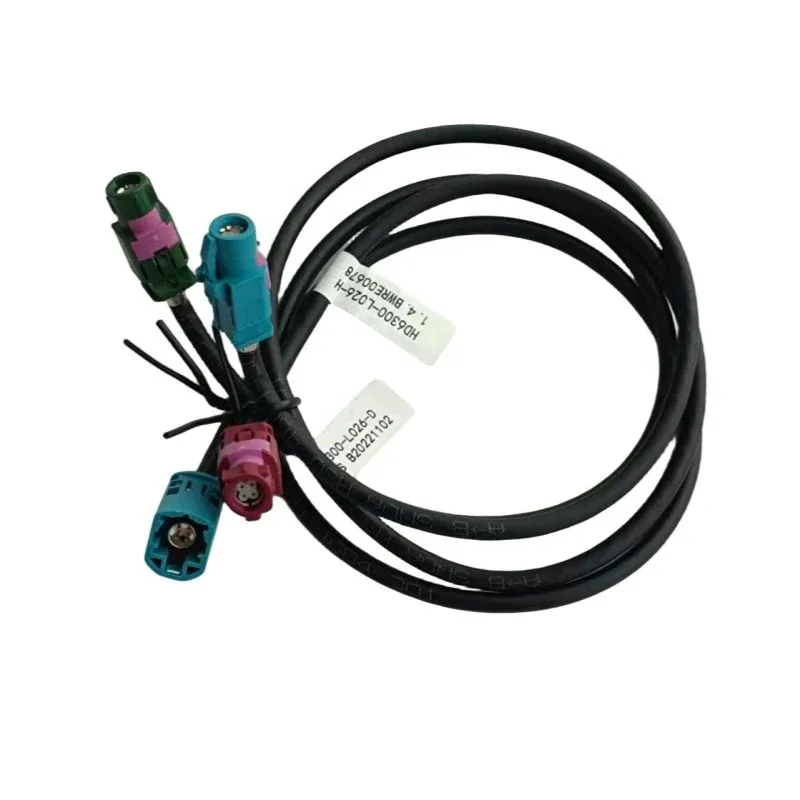

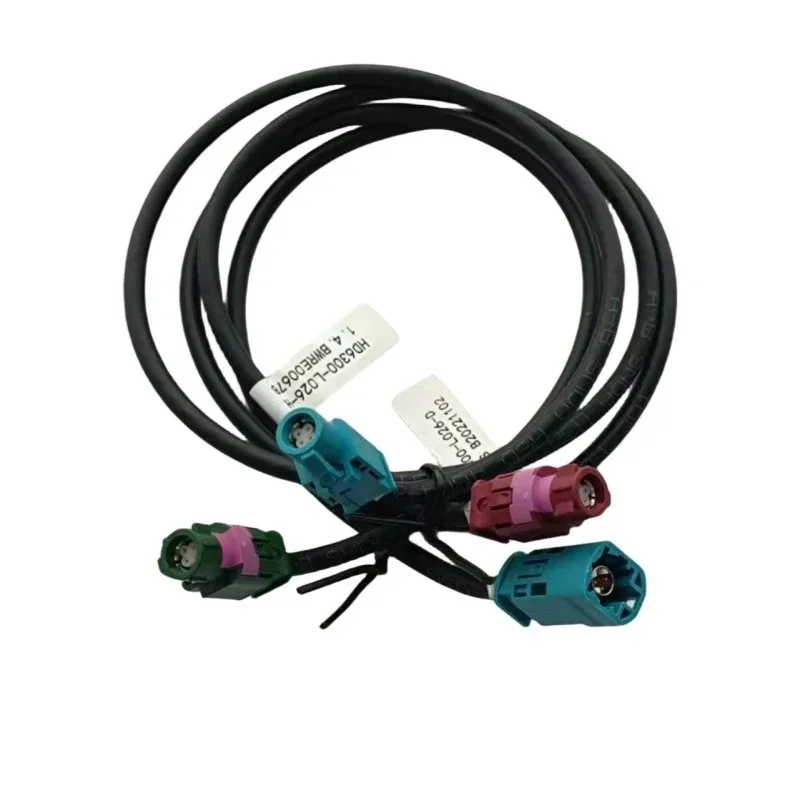

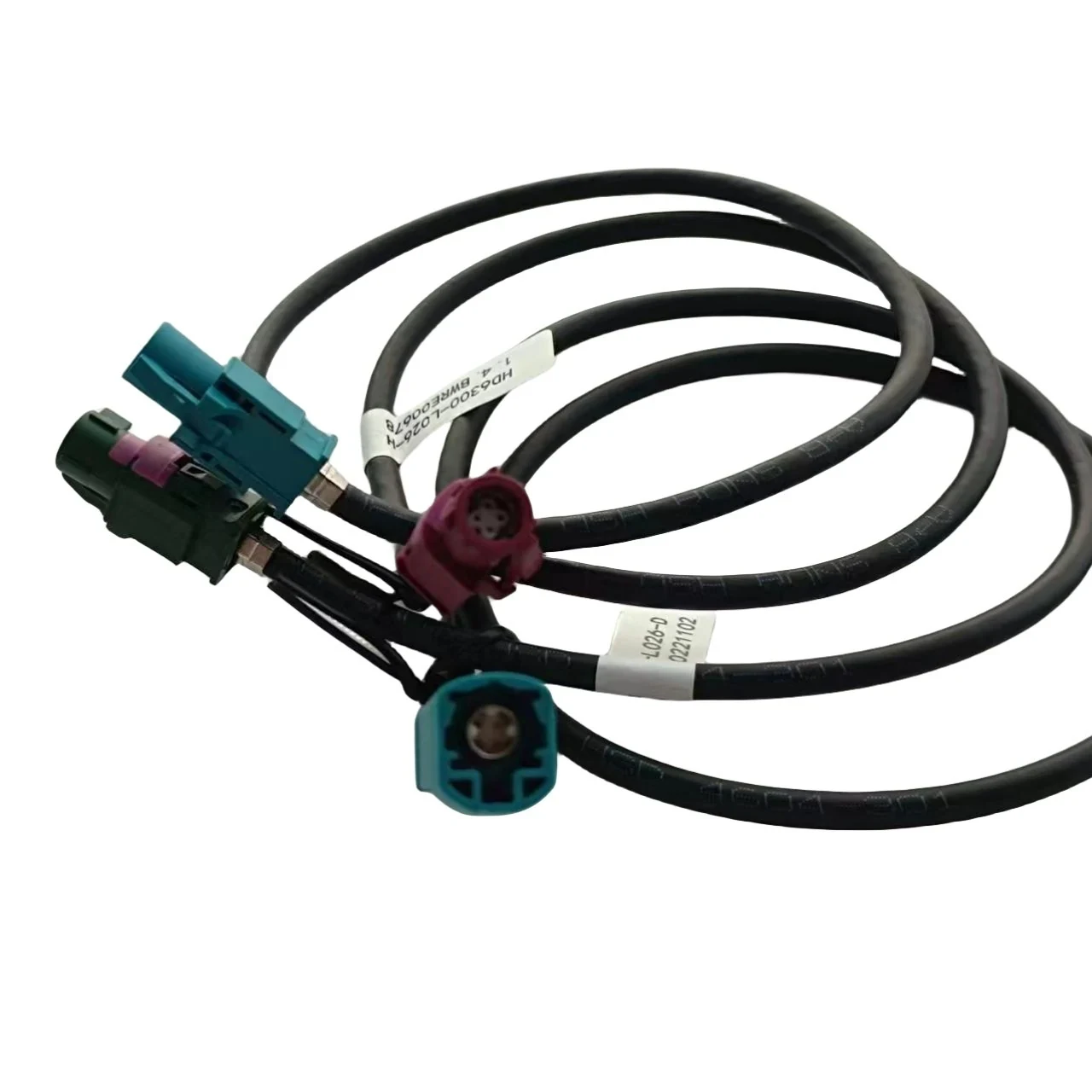

LVDS HSD Cable QCC-LVDS-0025 for Audi/Porsche/Haval

LVDS HSD cable Qcc-Lvds-0025 for Audi Q3/Q4/Q5, Porsche Cayenne/Macan, and Haval models.

Model No.: QCC-LVDS-0025
Applicable Brands: Porsche, Audi, Haval
Vehicle Models: Q3, Q4, Q5 E-TON, Cayenne, Macan, BJ80, Touareg, Grand General, Machiko, H6, Tank 300, Shenshou
Model Years: 2018-2024, 2021-2022, 2022, 2019-2022, 2019-2020
Cable Length: D L=690MM, H L=690MM
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM services for LVDS HSD cables, allowing customization of length, connector types, and shielding specifications. Buyers must provide exact mating connector part numbers and vehicle application details to ensure compatibility. All custom orders are subject to production lead time confirmation.

Quality & Testing

Insulation resistance testing Dielectric strength testing Continuity testing RoHS compliance verification (raw materials)

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact length of this LVDS HSD cable?
A: The cable length is specified as 690mm (D L=690MM and H L=690MM).

Q: Which vehicle models are compatible with part number QCC-LVDS-0025?
A: It fits Audi Q3/Q4/Q5 E-TON (2022-2023), Porsche Cayenne/Macan (2018-2024), Beijing BJ80, VW Touareg (2019-2020), Foton Grand General (2019-2022), Haval Machiko (2021-2022), Haval H6 (2021), Tank 300, and Haval Shenshou (2022).

Q: What information is needed to get a quote for a custom cable?
A: Please provide the mating connector part numbers, required cable length, and specific vehicle model/VIN for an accurate quotation.

Part Number: QCC-LVDS-0025

Product Introduction

This LVDS HSD cable, part number QCC-LVDS-0025, is a specialized high-speed data transmission harness designed for automotive infotainment and display systems. It serves as a critical interface component for connecting head units to display screens in premium SUVs and off-road vehicles, ensuring stable video signal integrity for drivers and passengers.

The cable features a precise 690mm length (specified as D L=690MM and H L=690MM) to fit specific chassis layouts. It is engineered for compatibility with complex wiring harnesses in Audi Q3/Q4/Q5 E-TON (2022-2023), Porsche Cayenne (2018-2024), Porsche Macan (2018-2024), Beijing BJ80, VW Touareg (2019-2020), Foton Grand General (2019-2022), Haval Machiko (2021-2022), Haval H6 (2021), Tank 300, and Haval Shenshou (2022). This ensures a direct fit for replacement or upgrade scenarios without modification.

We support OEM and ODM customization for this LVDS HSD cable profile. To receive an accurate quotation, please provide your mating connector part numbers, required cable length, and specific vehicle VIN or model details. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your technical requirements to proceed.

Key Features

Product Type: LVDS HSD cable designed for high-definition video signal transmission in automotive infotainment systems.
Part Number: QCC-LVDS-0025, ensuring precise identification for procurement and inventory management.
Cable Length: Available in 690mm length (D L=690MM, H L=690MM) to match specific vehicle harness routing.
Audi Compatibility: Verified fitment for Audi Q3, Q4, and Q5 E-TON models from 2022-2023.
Porsche Compatibility: Designed for Porsche Cayenne (2018-2024) and Macan (2018-2024) display interfaces.
Haval/Foton Compatibility: Supports Beijing BJ80, VW Touareg, Foton Grand General, and various Haval models.
