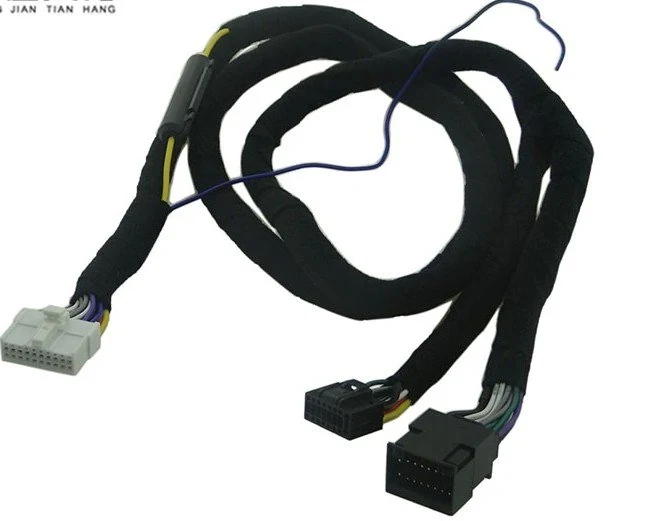

PAL0101R power cable for Chery series DSP series harness UL 1007 16AWG

PAL0101R Power Cable for Chery Series (13) | DSP Series

PAL0101R power cable for Chery series vehicles, constructed with UL 1007 16AWG wire for reliable DSP series connectivity.

Model No.: *10035/000013
Applicable Brands: Chery
Connector Part No.: 16P-01 connector
Pin Count: 16P
Wire Specification: 1007 16AWG
Voltage / Current: 12~24V
Temperature Range: -20~85°
MOQ: 200 pcs
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer dedicated T-harness customization where customers provide their machine, and we redesign and mass-produce T-line harnesses with interfaces exclusively fit for that machine. This OEM/ODM service allows for platform format customization to meet specific engineering requirements.

Quality & Testing

Insulation resistance testing Voltage withstand testing RoHS material compliance verification

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact wire specification for the PAL0101R?
A: The PAL0101R uses UL 1007 16AWG electronic wire, rated for 80°C and 300V.

Q: Can this harness be customized for a specific machine?
A: Yes, we offer OEM/ODM services where we redesign and mass-produce T-harnesses based on the customer's provided machine specifications.

Q: What is the minimum order quantity for this product?
A: The MOQ is 200 pcs.

Part Number: *10035/000013

Product Introduction

The PAL0101R is a dedicated power cable designed for the Chery series, specifically categorized under the DSP (Digital Signal Processing) series. This component serves as a critical power link for automotive audio installations, ensuring stable voltage delivery to DSP amplifiers or related head unit components in compatible Chery vehicles.

Constructed with UL 1007 16AWG electronic wire, this harness offers robust electrical conductivity and durability suitable for automotive environments. The 16AWG gauge provides adequate current capacity for power applications, while the UL 1007 standard ensures the insulation meets rigorous safety and temperature ratings (80°C / 300V). While specific connector pinouts are not listed, the unit is engineered to interface with existing DSP system requirements for the Chery platform, minimizing the need for complex rewiring during installation.

We support extensive OEM/ODM customization, including the bulk production of dedicated T-harnesses based on customer-provided machine specifications. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. To receive an accurate quotation for the PAL0101R or custom harness solutions, please provide your specific interface requirements or machine models.

Key Features

Chery Series Compatibility: Engineered specifically for power distribution within Chery series vehicles, ensuring precise fitment for DSP audio system upgrades.
UL 1007 16AWG Construction: Utilizes UL-listed PVC electronic wire rated for 80°C and 300V, providing reliable conductivity and insulation durability.
DSP Series Integration: Designed as part of the DSP series lineup, facilitating stable power delivery to digital signal processing amplifiers.
OEM/ODM Customization: Factory supports custom T-harness production based on customer machine specifications, allowing for exclusive interface redesign.
Quality Assurance: Manufactured in a facility certified to ISO 9001 standards and audited by TÜV Rheinland, ensuring consistent production quality.
Material Compliance: All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials to meet environmental standards.
