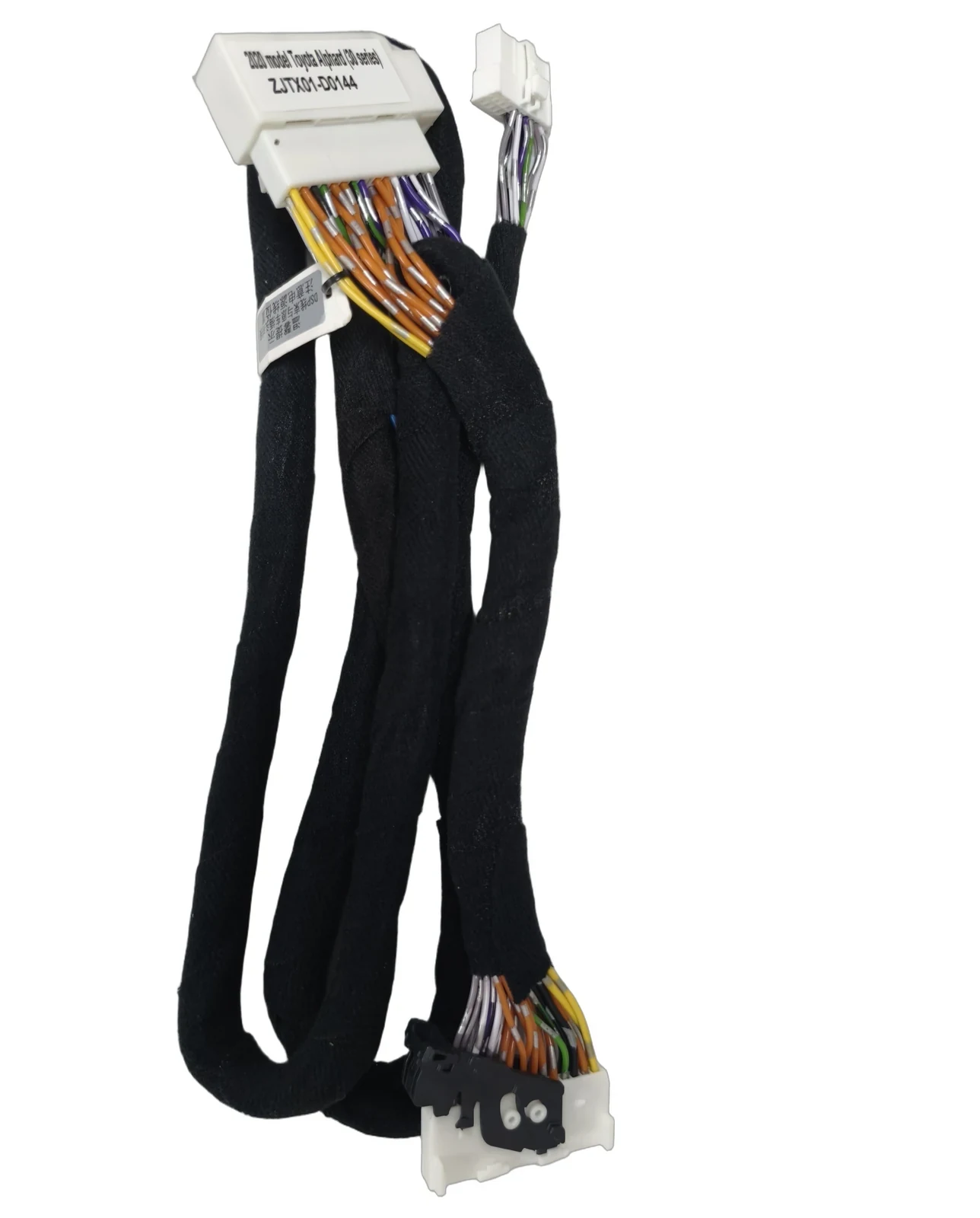

Toyota Alphard 30 Series Wire Harness 144 with AVSS and FLRY-B wiring

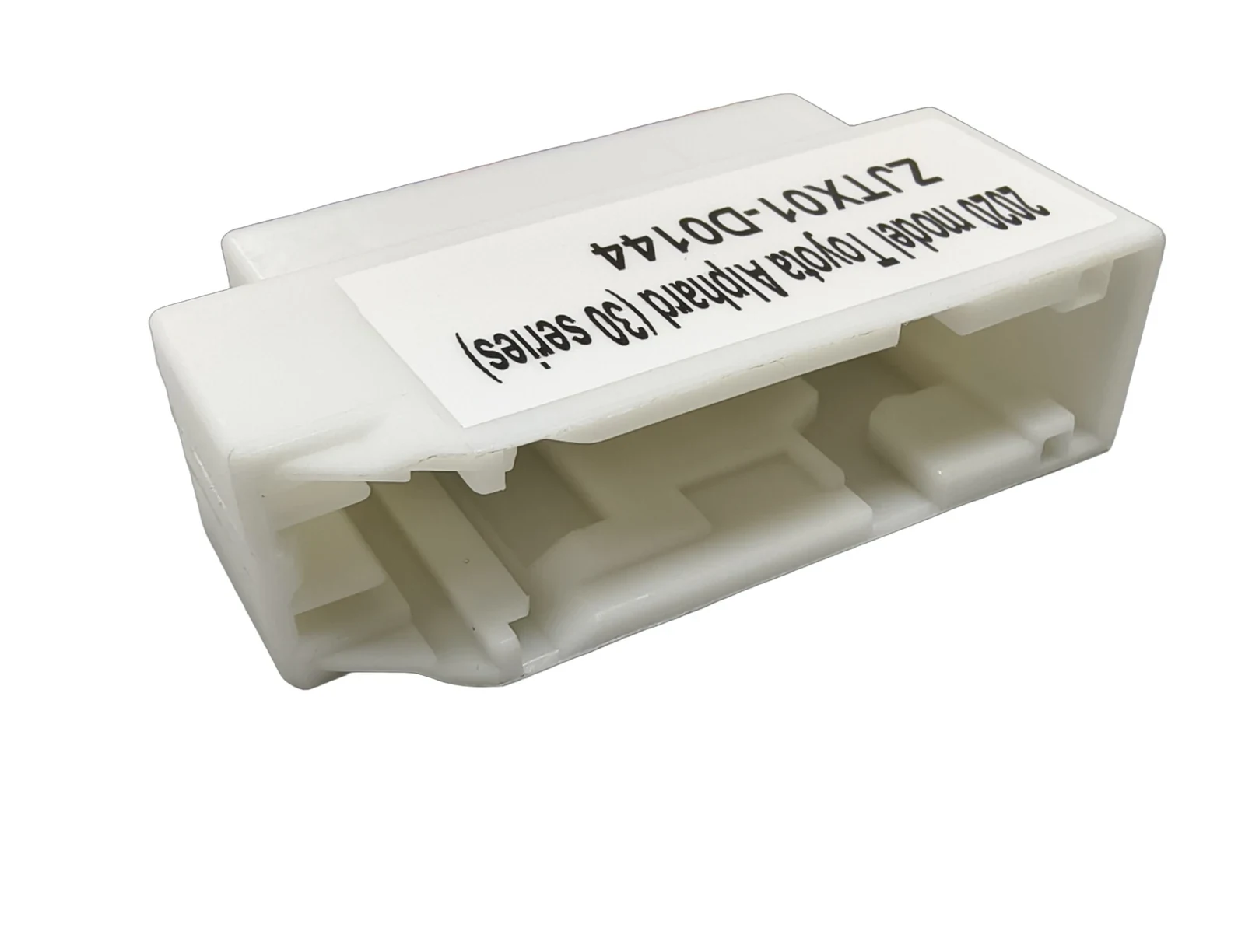

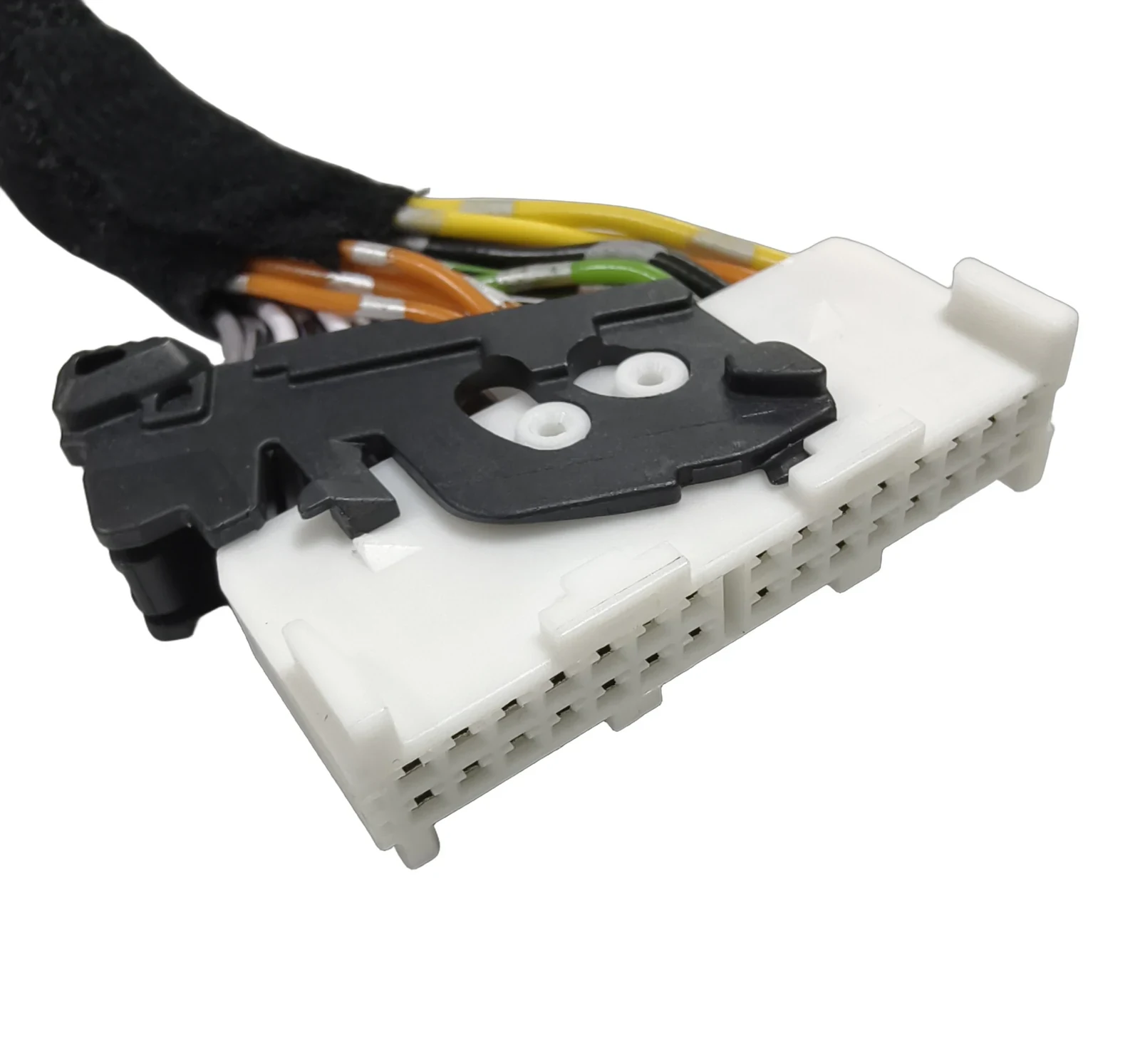

Toyota Alphard 30 Series Wire Harness 144 | AVSS/FLRY-B, part *0000/100373 - detail view 2

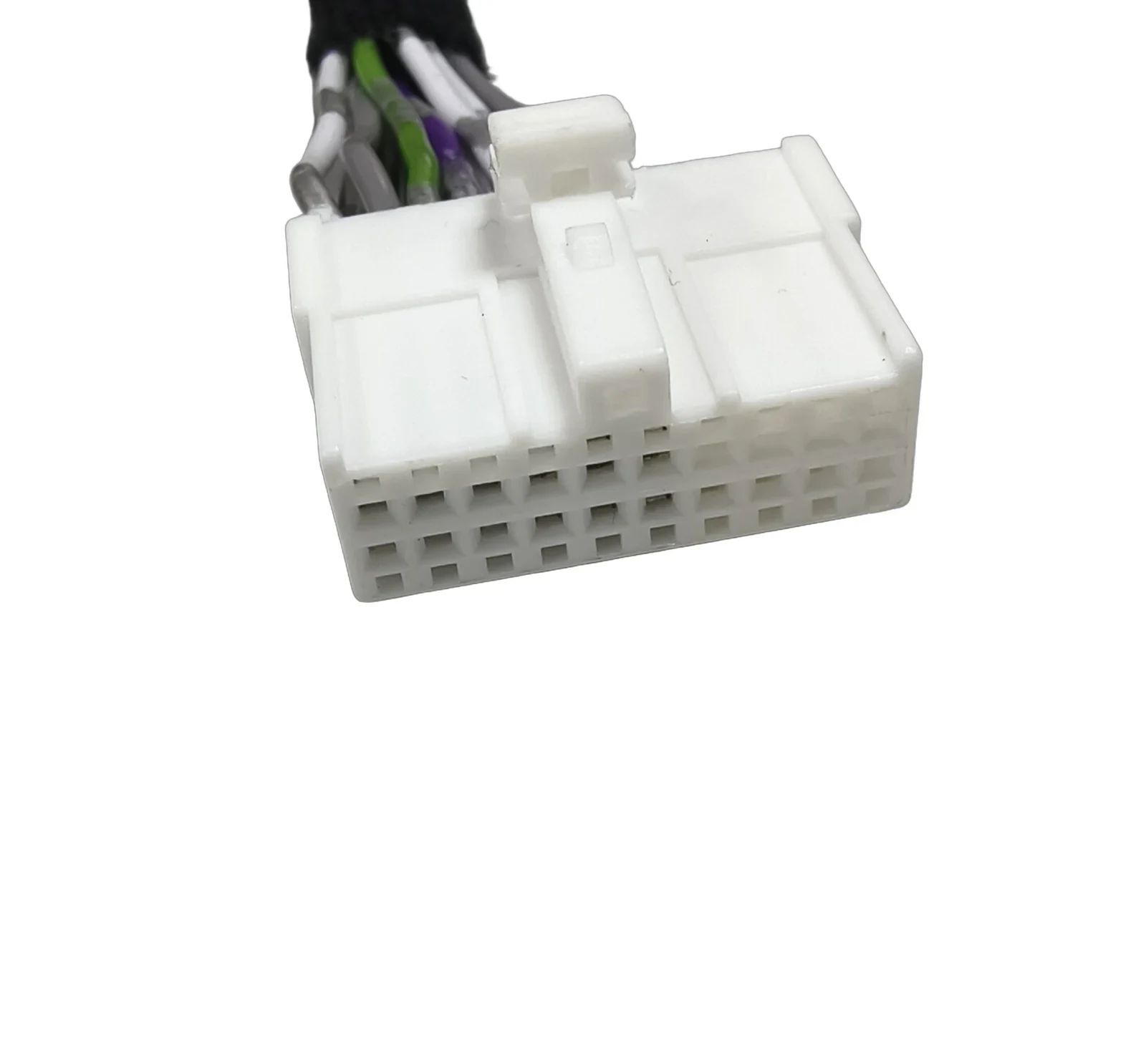

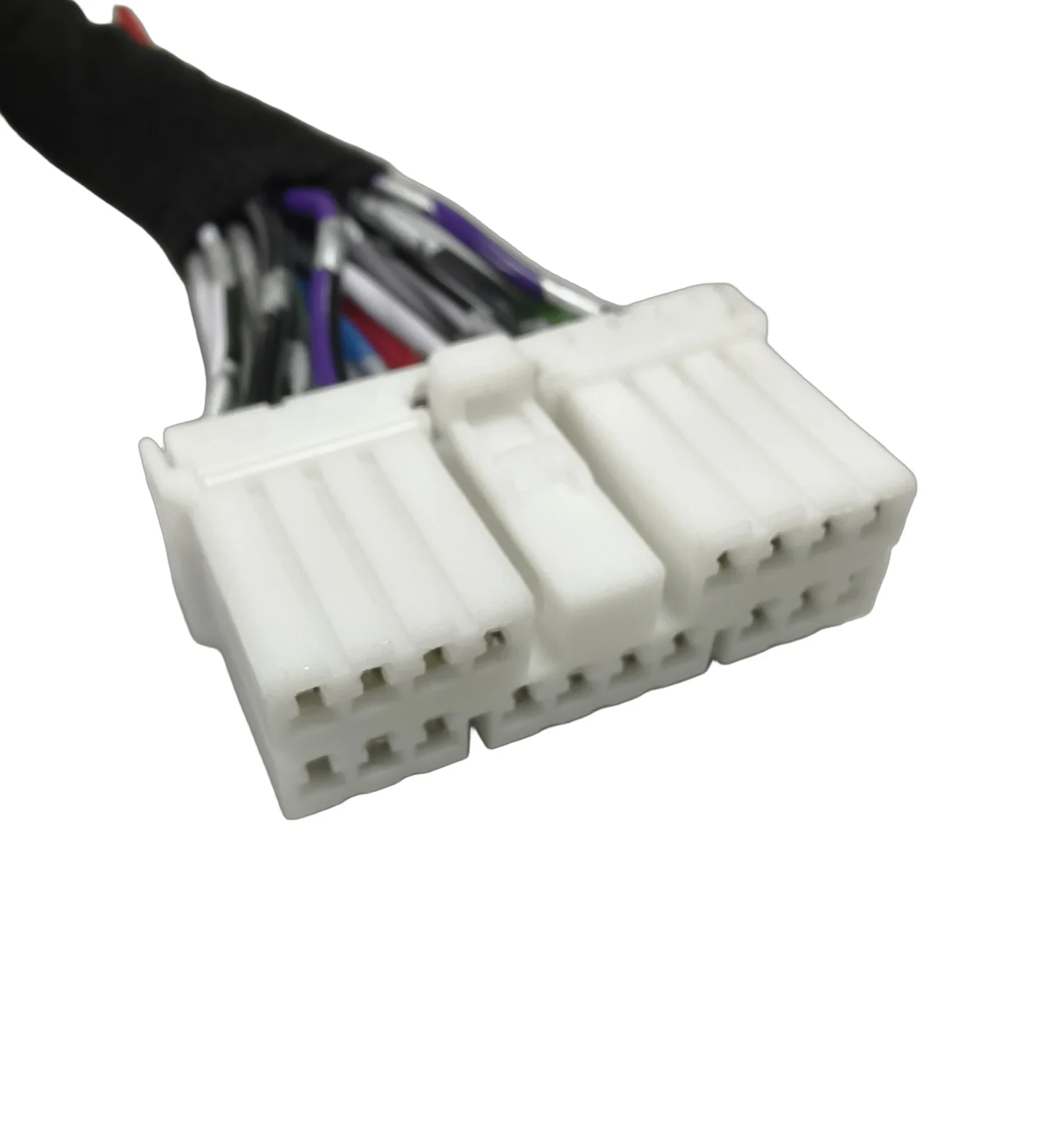

Toyota Alphard 30 Series Wire Harness 144 | AVSS/FLRY-B, part *0000/100373 - detail view 3

Toyota Alphard 30 Series Wire Harness 144 | AVSS/FLRY-B

OEM-spec wire harness 144 for Toyota Alphard (30 series), utilizing AVSS 1.25mm² and FLRY-B 0.75mm² wiring for reliable electrical connectivity.

Model No.: *0000/100373
Applicable Brands: Toyota
Vehicle Models: Alphard
Connector Part No.: 30P connector
Pin Count: 30P
Wire Specification: AVSS 1.25mm² / FLRY-B 0.75mm²
Voltage / Current: 12~24V
Temperature Range: -40~105°
Weight: 450.5
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We support OEM and ODM customization for this wire harness. Buyers can provide specific engineering drawings, connector types, or wiring diagrams to tailor the product to their exact requirements.

Quality & Testing

Visual Inspection Continuity Test Insulation Resistance Test Hi-Pot Test RoHS Material Compliance Check

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Is this wire harness compatible with all Toyota Alphard 30 series models?
A: This harness is specified for the Toyota Alphard (30 series) under specification #144. Please provide your vehicle VIN or detailed model information to confirm exact compatibility.

Q: What are the wire specifications used in this harness?
A: The harness utilizes AVSS 1.25mm² and FLRY-B 0.75mm² wires, providing reliable electrical performance and flexibility for automotive applications.

Q: Can I request a sample before placing a bulk order?
A: Yes, paid samples are available. Please contact us to request a sample quotation and confirm availability.

Part Number: *0000/100373

Product Introduction

This product is a specialized wire harness designed specifically for the Toyota Alphard (30 series), identified by specification #144. It serves as a critical electrical interconnection component, routing power and signals within the vehicle's complex electrical architecture. Procurement buyers and automotive engineers specify this part to ensure seamless integration and reliable performance in modern automotive applications.

The harness is constructed using high-standard AVSS 1.25mm² and FLRY-B 0.75mm² wires, ensuring durability and signal integrity. AVSS provides Japanese-standard thin-wall PVC insulation rated for 105°C, while FLRY-B offers German-standard thin-wall construction for space-constrained routing. This combination supports efficient weight reduction and precise fitment within the Alphard's engine bay or cabin, reducing installation time and potential for wiring errors.

We support OEM and ODM requirements for this component, allowing for custom configurations based on specific engineering drawings. To obtain an accurate quotation, please provide the exact product number, vehicle VIN, or detailed technical specifications. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us to confirm production lead time for this made-to-order item.

Key Features

Verified Fitment: Specifically engineered for the Toyota Alphard (30 series), ensuring precise physical and electrical compatibility with the #144 specification.
High-Grade Wiring: Utilizes AVSS 1.25mm² and FLRY-B 0.75mm² wires, offering superior heat resistance (105°C) and flexibility for complex routing.
Durable Construction: Thin-wall PVC insulation reduces overall harness weight and volume, optimizing space utilization within the vehicle's electrical system.
Material Compliance: Manufactured with RoHS-compliant raw materials, ensuring adherence to environmental standards for automotive components.
Quality Assurance: Produced in a facility audited by TÜV Rheinland under an ISO 9001-certified quality management system, ensuring consistent manufacturing standards.
Customization Support: Available for OEM/ODM projects, allowing for tailored solutions based on specific engineering requirements and drawings.
