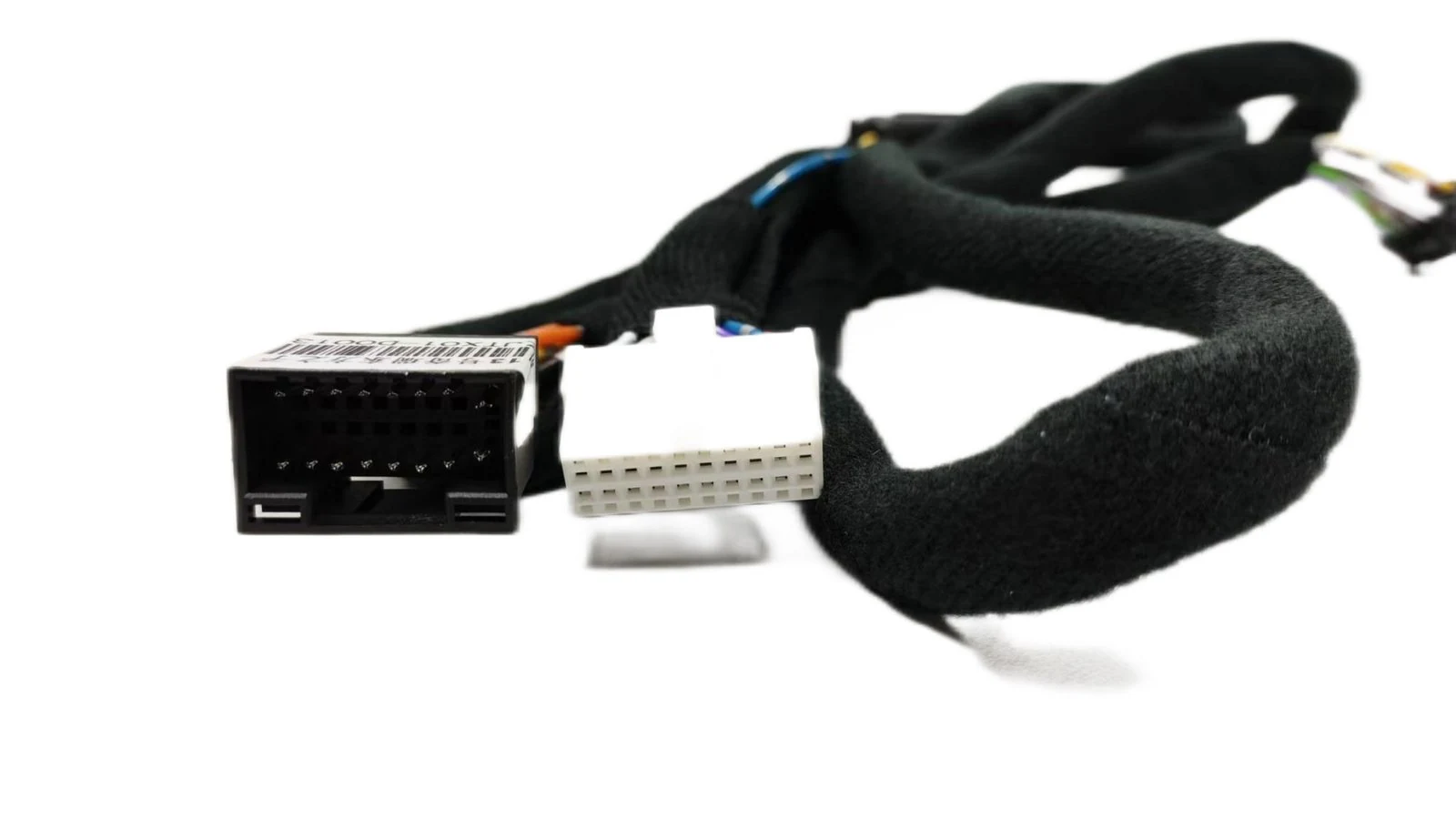

ZJTX01-D0013 13-terminal DSP power cable for Android series amplifier connection

ZJTX01-D0013 13-terminal DSP power cable for Android series amplifier connection - detail view 2

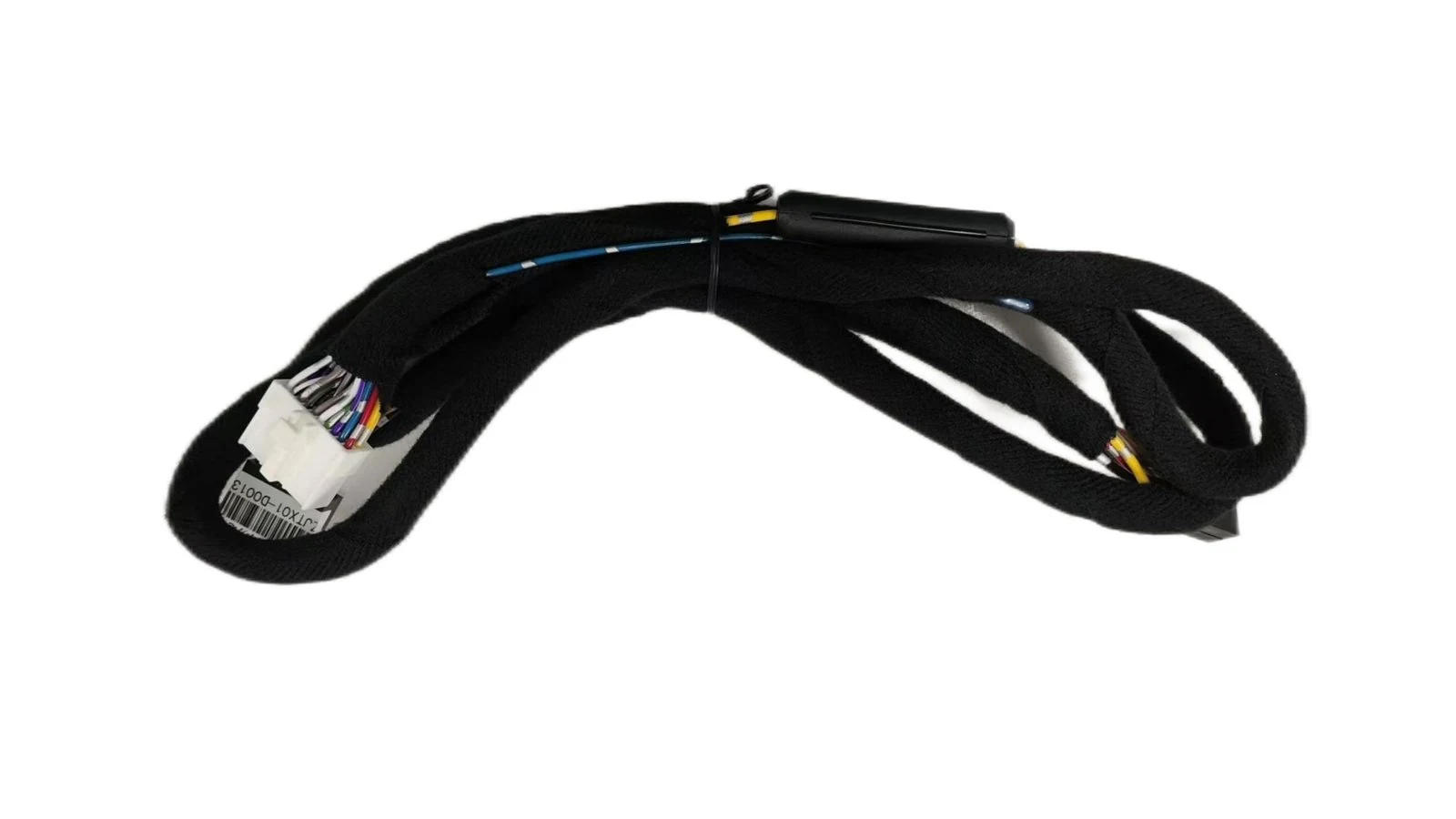

ZJTX01-D0013 13-terminal DSP power cable for Android series amplifier connection - detail view 3

ZJTX01-D0013 DSP Power Cable 13-Pin for Android Series

ZJTX01-D0013 is a 13-terminal power cable designed for Android series DSP systems.

Model No.: *0000/100305
Category: DSP Wire Harness
Applicable Brands: QCconnector
Pin Count: 13
MOQ: 200 PCS
Sample: Paid samples; request a sample quotation.

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM services for the ZJTX01-D0013 harness, allowing customization of connector types, wire lengths, and terminal specifications to match specific DSP amplifier requirements. Buyers should provide detailed technical drawings or target model numbers to ensure precise fitment. All custom orders are subject to minimum quantity requirements and material availability.

Quality & Testing

Visual inspection Continuity testing Insulation resistance testing

Standards & Compliance

ISO 9001-certified quality management system | factory audited by TÜV Rheinland | Product-specific material compliance requires supporting documentation | OEM/ODM capability available.

Frequently Asked Questions

Q: What is the primary application for the ZJTX01-D0013?
A: It is a 13-terminal power cable designed for Android series DSP systems.

Q: Can this harness be customized for different DSP models?
A: Yes, OEM/ODM customization is available for connectors and lengths based on technical specifications.

Q: What are the MOQ and sample terms?
A: The MOQ is 200 PCS. Samples are paid; please request a sample quotation.

Part Number: *0000/100305

Product Introduction

The ZJTX01-D0013 is a specialized 13-terminal power cable belonging to the DSP wire harness series, engineered specifically for Android series DSP amplifier connections. This component serves as a critical interface for automotive audio installations, ensuring stable power delivery to digital signal processors. It is typically specified by professional audio installers, system integrators, and procurement specialists looking for precise OEM-compatible replacement or upgrade parts for vehicle audio systems.

This harness features a fixed 13-pin configuration tailored to the power interface requirements of compatible Android series DSP units. The construction utilizes standard automotive-grade wiring materials to ensure durability and signal integrity within the engine bay or cabin environment. While specific wire gauges and insulation types are not detailed in the current product data, the design prioritizes a secure, repeatable connection that minimizes the need for custom splicing or rewiring during installation.

We support OEM and ODM customization for this DSP wire harness, allowing buyers to request specific connector layouts, pinouts, or material modifications. To obtain an accurate quotation, please provide the target DSP model number, required connector type, and desired cable length. Our facility operates under an ISO 9001-certified quality management system and has been audited by TÜV Rheinland. Product-specific material compliance requires supporting documentation upon request. Please contact us with your technical specifications to proceed with your order.

Key Features

13-Terminal Interface: Designed with exactly 13 power terminals to match the specific pinout requirements of Android series DSP systems.
DSP Series Compatibility: Specifically categorized under the DSP series, ensuring direct fitment for compatible digital signal processor power inputs.
Direct Factory Supply: Sourced directly from the manufacturing facility to ensure competitive pricing and consistent quality control.
Standardized Construction: Built to automotive industry standards for durability, providing a reliable connection for high-frequency audio power applications.
OEM/ODM Support: Capable of customization to meet specific client requirements for connector types, wire lengths, and terminal configurations.
Quality Assured: Manufactured within an ISO 9001-certified facility, ensuring consistent production standards and reliable batch-to-batch performance.
