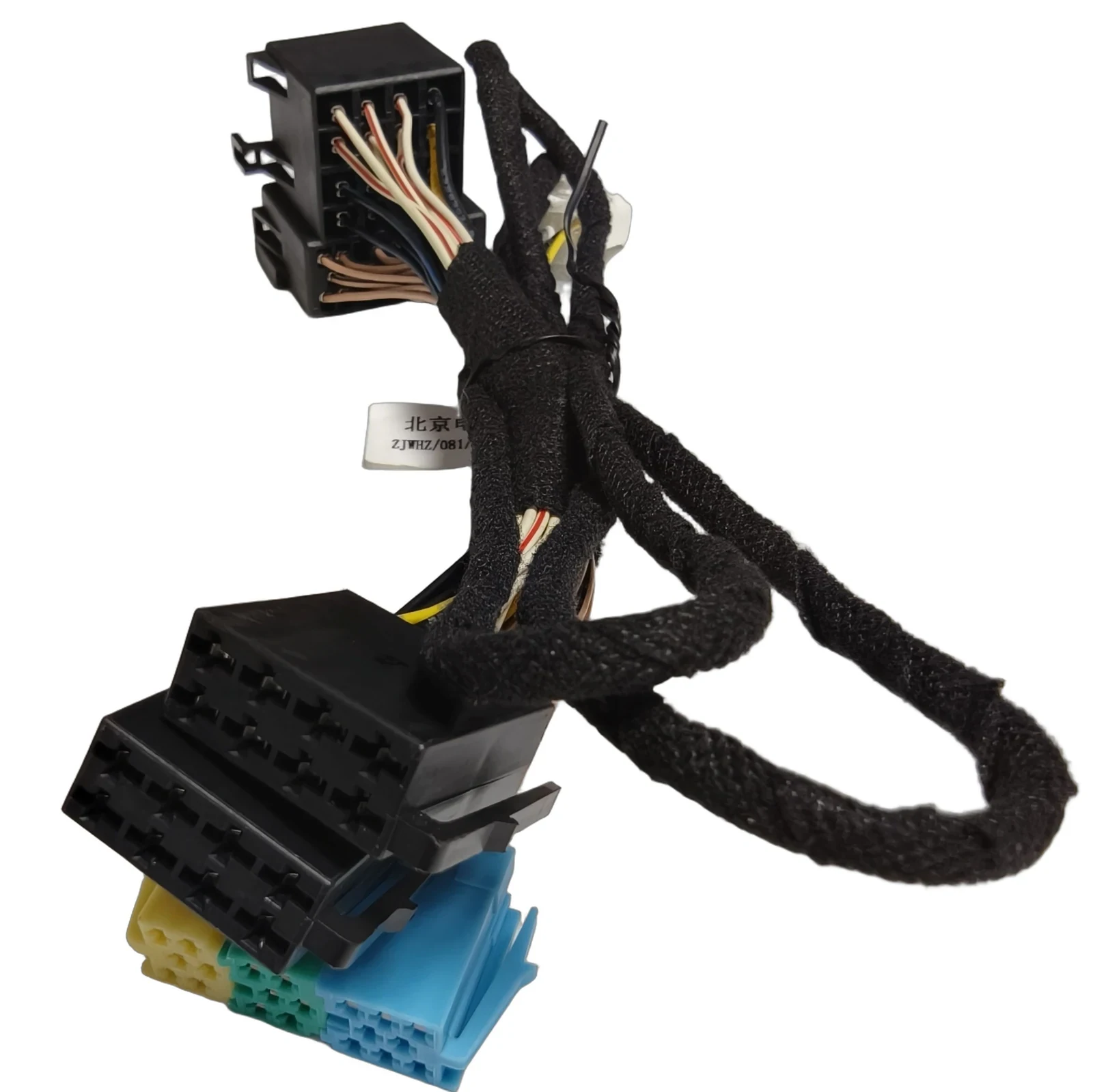

Beijing Power Cable No.1: SW-ZIV-081/109 Harness for Teana

SW-ZIV-081/109 power cable for Beijing/Teana vehicles, featuring ISO36P female, ISO left center 8P, and 12P connectors with 1007/AVSS wiring.

Model No.: *0010/200018
Applicable Brands: Beijing
Vehicle Models: Teana
Connector Part No.: ISO36P connector
Pin Count: 36P
Wire Specification: 1007 18AWG / AVSS 0.3mm²
Voltage / Current: 12~24V
Temperature Range: -40~105°
Weight: 110.5
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We support OEM/ODM customization for the SW-ZIV-081/109 power cable, including adjustments to cable length, connector types, and wire routing. Buyers can provide specific engineering drawings or mating part requirements to tailor the harness to their exact assembly needs.

Quality & Testing

Continuity Testing Insulation Resistance Testing Voltage Withstand Testing RoHS Material Compliance Verification

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact connector configuration for this power cable?
A: The harness includes an ISO36P female connector, an ISO Left Center 8P connector, an 8P connector with Yellow/Green/Blue wires, and a Teana 12P connector.

Q: Is this cable compatible with all Beijing brand vehicles?
A: This specific part (SW-ZIV-081/109) is designated for Beijing brand applications and is explicitly listed as compatible with the Teana model. Please verify your specific vehicle requirements.

Q: What are the customization options for this power cable?
A: We offer OEM/ODM services, allowing you to customize cable length, connector specifications, and wire configurations based on your provided engineering drawings or requirements.

Part Number: *0010/200018

Product Introduction

The SW-ZIV-081/109 Power Cable No.1 is a specialized automotive wiring harness designed for Beijing brand applications, specifically compatible with the Teana model. This assembly serves as a critical power distribution link, connecting main power sources to vehicle subsystems using a hybrid connector interface. It is typically specified by procurement teams or engineers requiring exact OEM replacement or custom integration for vehicle electrical systems.

Constructed with verified UL 1007 18AWG and AVSS 0.3mm² wires, this harness ensures reliable conductivity and durability in automotive environments. The connector configuration includes an ISO36P female interface, an ISO Left Center 8P connector, and an additional 8P connector with Yellow/Green/Blue wiring, plus a Teana 12P connector. This precise pinout and wire gauge selection (0.3mm² for power lines) supports stable voltage transmission, while the UL-listed PVC insulation provides standard automotive electrical protection.

We support OEM/ODM requirements for this power cable assembly, allowing for custom lengths, connector modifications, or packaging adjustments based on your specific engineering drawings. To receive an accurate quotation, please provide your required cable length, specific connector mating part numbers if different from standard, and your target quantity. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland, ensuring consistent manufacturing standards for all orders.

Key Features

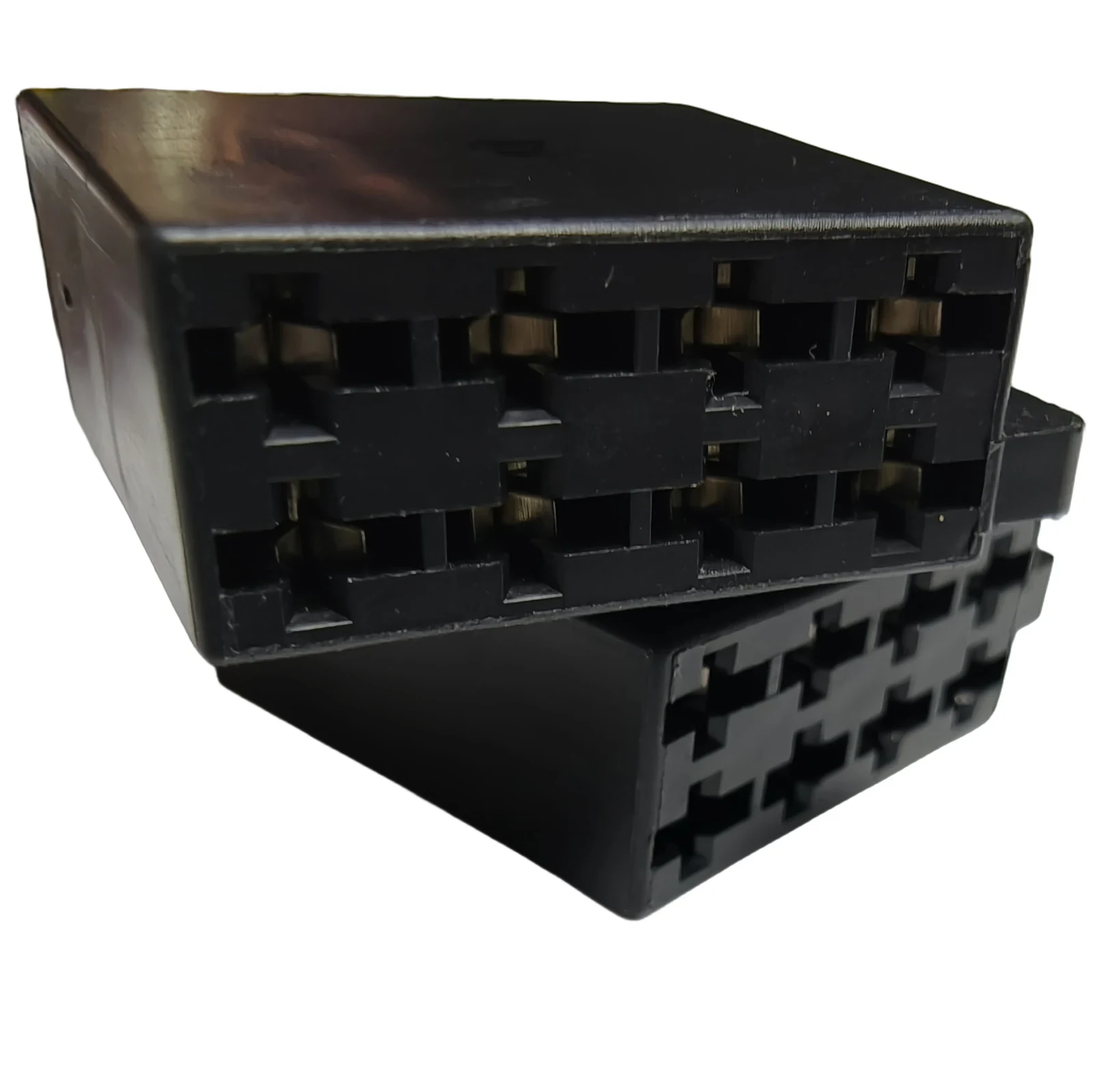

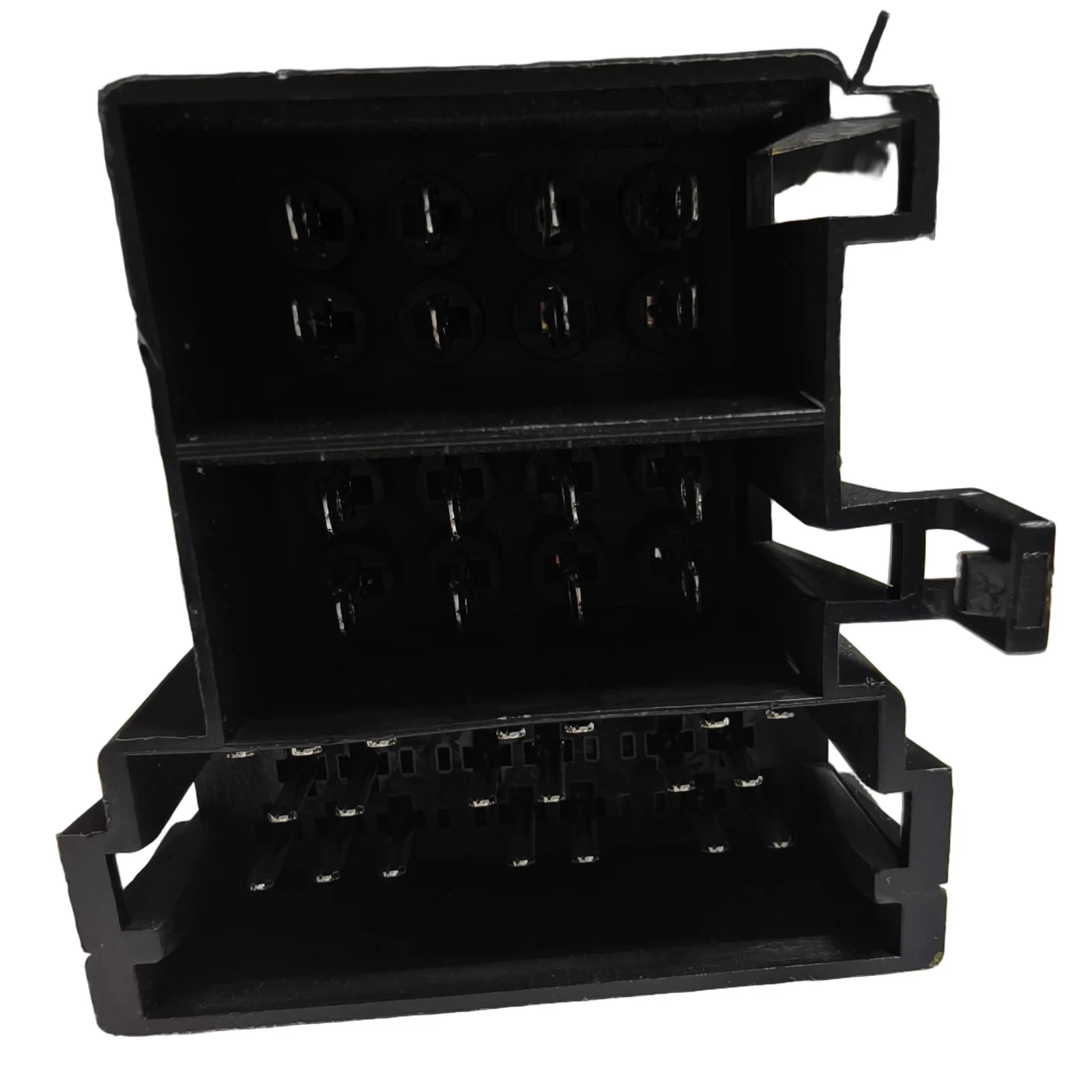

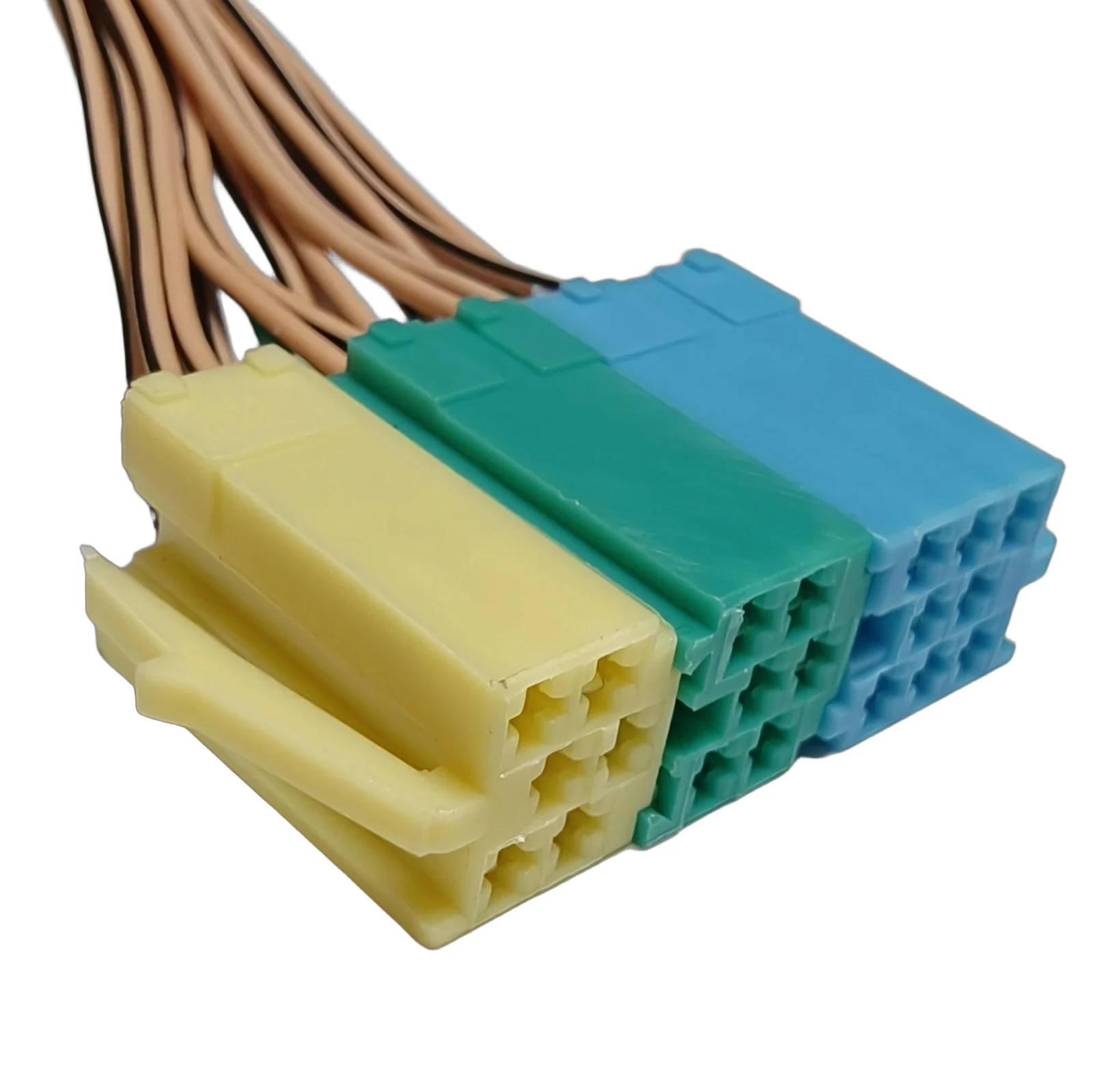

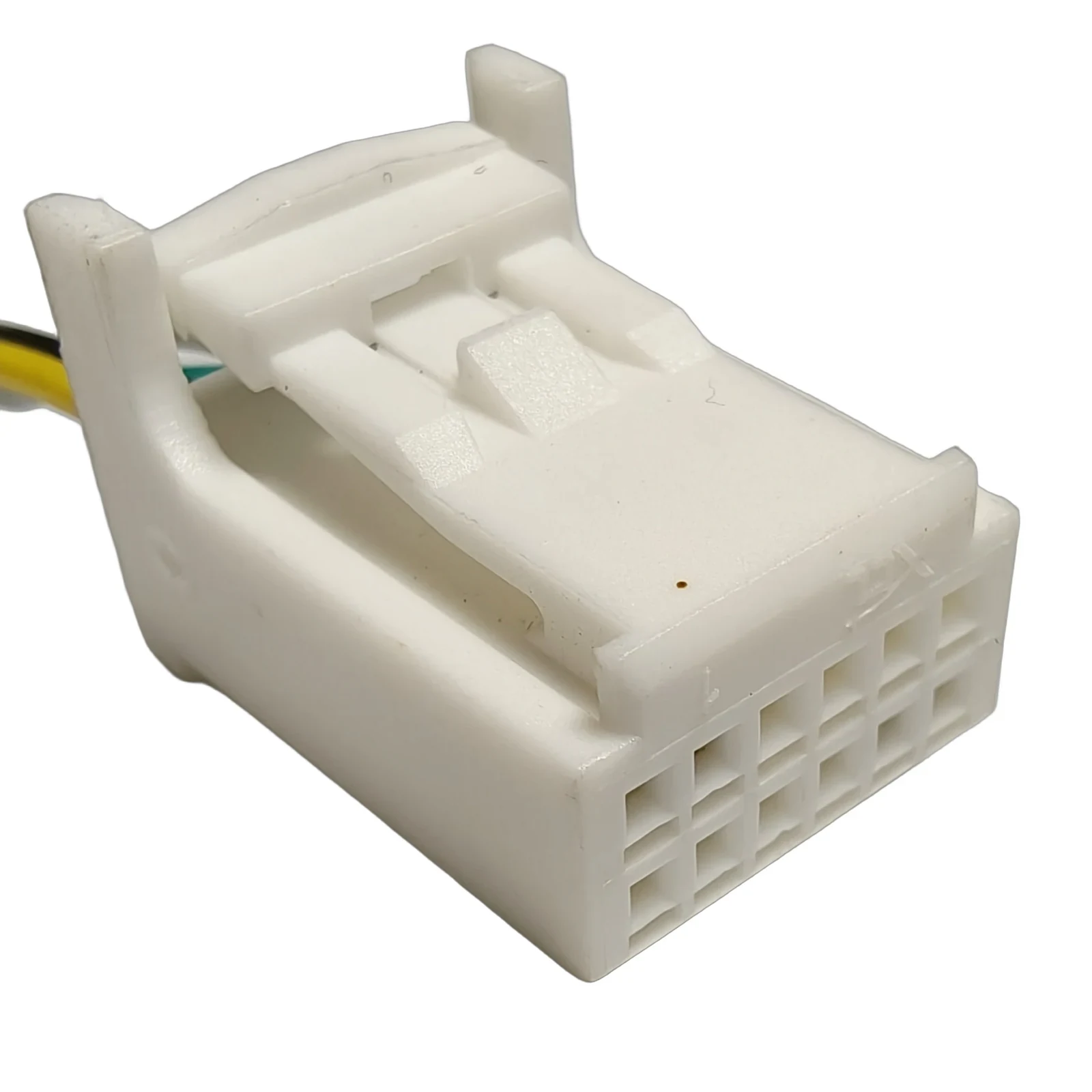

Connector Configuration: Features a complex interface combining ISO36P female, ISO Left Center 8P, 8P Yellow/Green/Blue, and Teana 12P connectors for precise system integration.

Wire Standard: Utilizes UL 1007 18AWG and AVSS 0.3mm² wires, ensuring compliance with international electronic and Japanese automotive wire standards.

Application Specificity: Designed specifically for Beijing brand vehicles and Teana models, ensuring direct fitment for power distribution needs.

Electrical Reliability: The 0.3mm² AVSS wire gauge is selected to handle power loads effectively, minimizing resistance and voltage drop in critical circuits.

Material Compliance: Manufactured using RoHS-compliant raw materials, with supplier SGS test reports available for applicable wire materials to ensure environmental safety.

Quality Assurance: Produced in a factory audited by TÜV Rheinland under an ISO 9001-certified quality management system, guaranteeing consistent build quality.
