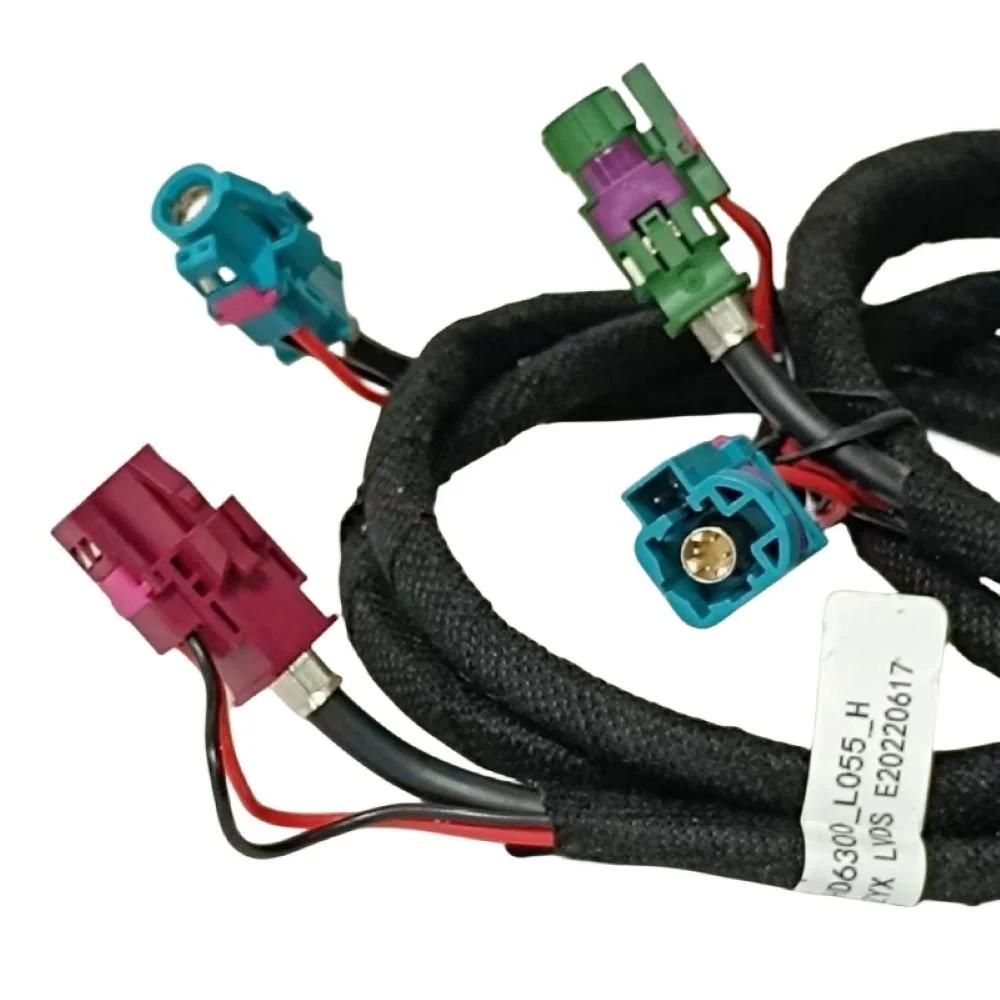

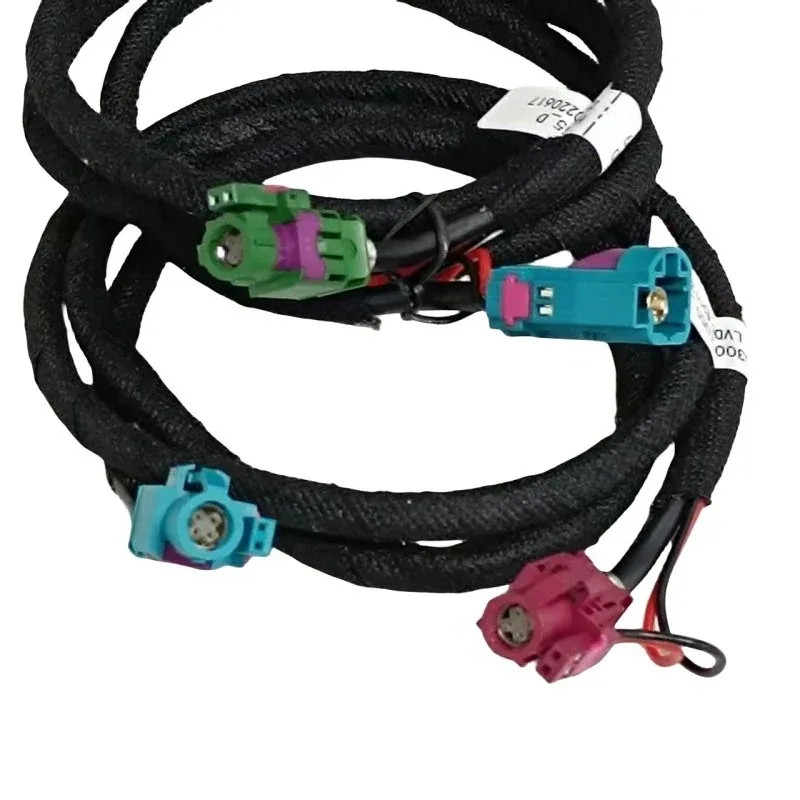

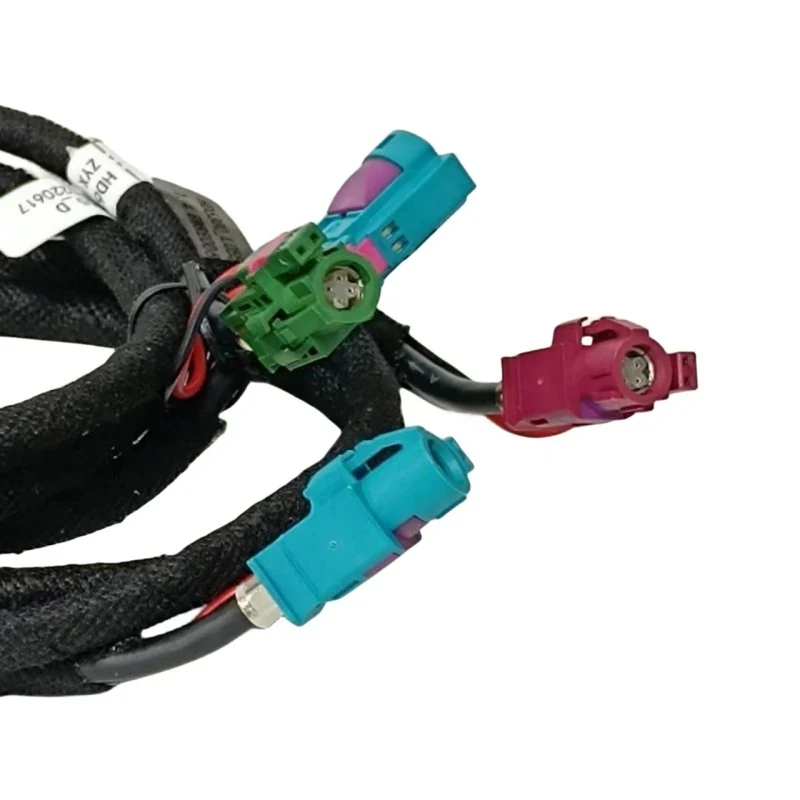

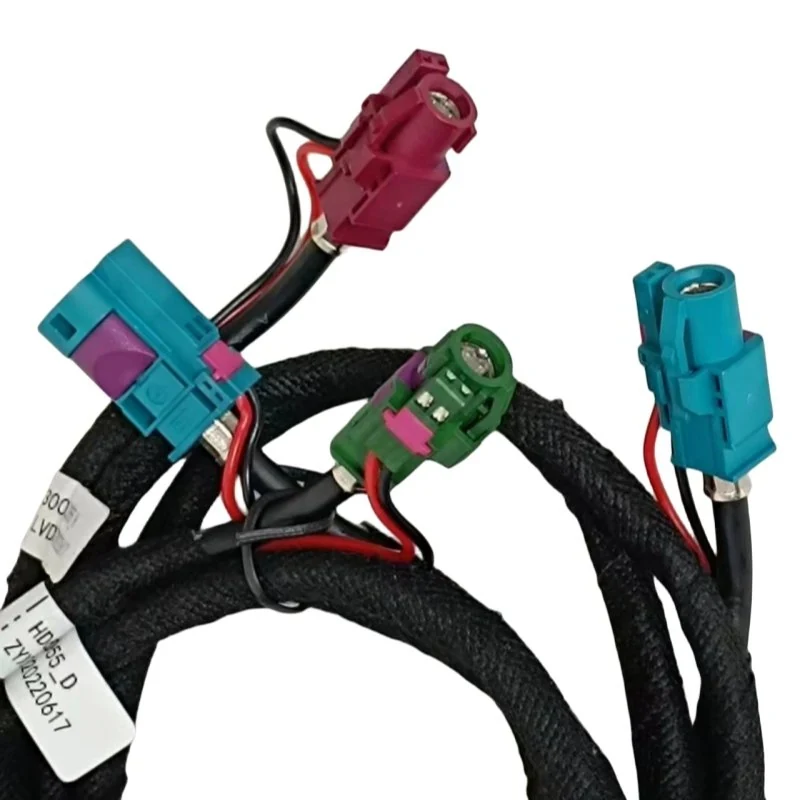

Cable D L=890MM H L=900MM for Beijing BJ40 BJ60 U7

Cable D (L=890MM/H L=900MM) for Beijing BJ40/BJ60/U7, Fengxing T5/T5L/EVO, Yixuan, Chery EQ5, and Infiniti Q50L dashboard screens.

Model No.: QCC-LVDS-0006
Applicable Brands: Beijing Auto, Fengxing, Dongfeng, Chery, Infiniti
Vehicle Models: BJ40, BJ60, U7, BEIJING-BJ80, BEIJING-U5, Wangpai M7, Fengxing T5, Fengxing T5L, Fengxing T5 EVO, Dongfeng Yixuan, Chery EQ5, Infiniti Q50L
Model Years: 2018-2023, 2019, 2022+, 2023, 2021
Connector Part No.: QCC-LVDS-0006
Cable Length: L=890MM H L=900MM
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

OEM/ODM capability is available for this cable assembly. Buyers can provide specific length, connector type, or vehicle application details to customize the harness. Please contact us with your requirements for accurate selection support.

Quality & Testing

RoHS compliance verification for raw materials ISO 9001 quality management process control

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Does this cable work with the Fengxing T5 12-inch vertical screen?
A: Yes, it is compatible with the 2018-2021 Fengxing T5/T5L 12-inch vertical screen. However, if you experience 360-interface black screen or touch failure, you may need to move the GPIO0 pull-up resistor.

Q: What is the exact length of this cable?
A: The cable has a length (L) of 890MM and a height (H L) of 900MM.

**Are samples available?**
A: No, finished-product samples are paid. You can request a sample quotation for this cable.

Part Number: QCC-LVDS-0006

Product Introduction

This Cable D, identified by Article No. QCC-LVDS-0006, is a specialized interconnect harness designed for high-definition display integration in modern automotive dashboards. It primarily serves the Beijing Auto lineup, including the BJ40, BJ60, U7, BJ80, and U5, as well as Fengxing, Dongfeng, Chery, and Infiniti models requiring vertical screen connectivity. Procurement engineers and automotive aftermarket suppliers specify this part to ensure reliable signal transmission for instrument clusters and central control units.

The harness features precise dimensions with a length of 890MM and a height of 900MM, engineered to fit specific chassis constraints without modification. For applications involving the 2018-2021 Fengxing T5/T5L 12-inch vertical screen with Huayang head units, the design accounts for specific GPIO configurations; users may need to adjust the GPIO0 pull-up resistor to resolve 360-interface black screen or touch failure issues. This attention to electrical detail ensures compatibility with complex infotainment systems in vehicles like the 2022 Chery New Energy EQ5 and 2021 Infiniti Q50L.

We support OEM and ODM projects for this cable assembly, backed by an ISO 9001-certified quality management system and factory audits by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. To receive an accurate quotation for this specific harness, please provide your target vehicle model, year, and any specific connector or length requirements.

Key Features

Precise Dimensions: Manufactured with exact L=890MM and H L=900MM specifications to ensure proper fitment in dashboard cavities.
Broad Compatibility: Supports multiple platforms including Beijing BJ40/BJ60, Fengxing T5/EVO, Dongfeng Yixuan, Chery EQ5, and Infiniti Q50L.
Specialized Interface: Designed for vertical screen integration, addressing specific signal needs for 12.8-inch and 12-inch displays.
Technical Adjustment Support: Accommodates GPIO0 pull-up resistor adjustments for Fengxing T5/T5L systems to prevent interface flashing or touch failure.
Verified Compliance: Produced with RoHS-compliant raw materials, supported by supplier SGS test reports for wire materials.
Quality Assured: Manufactured under an ISO 9001-certified quality management system, with the factory audited by TÜV Rheinland.
