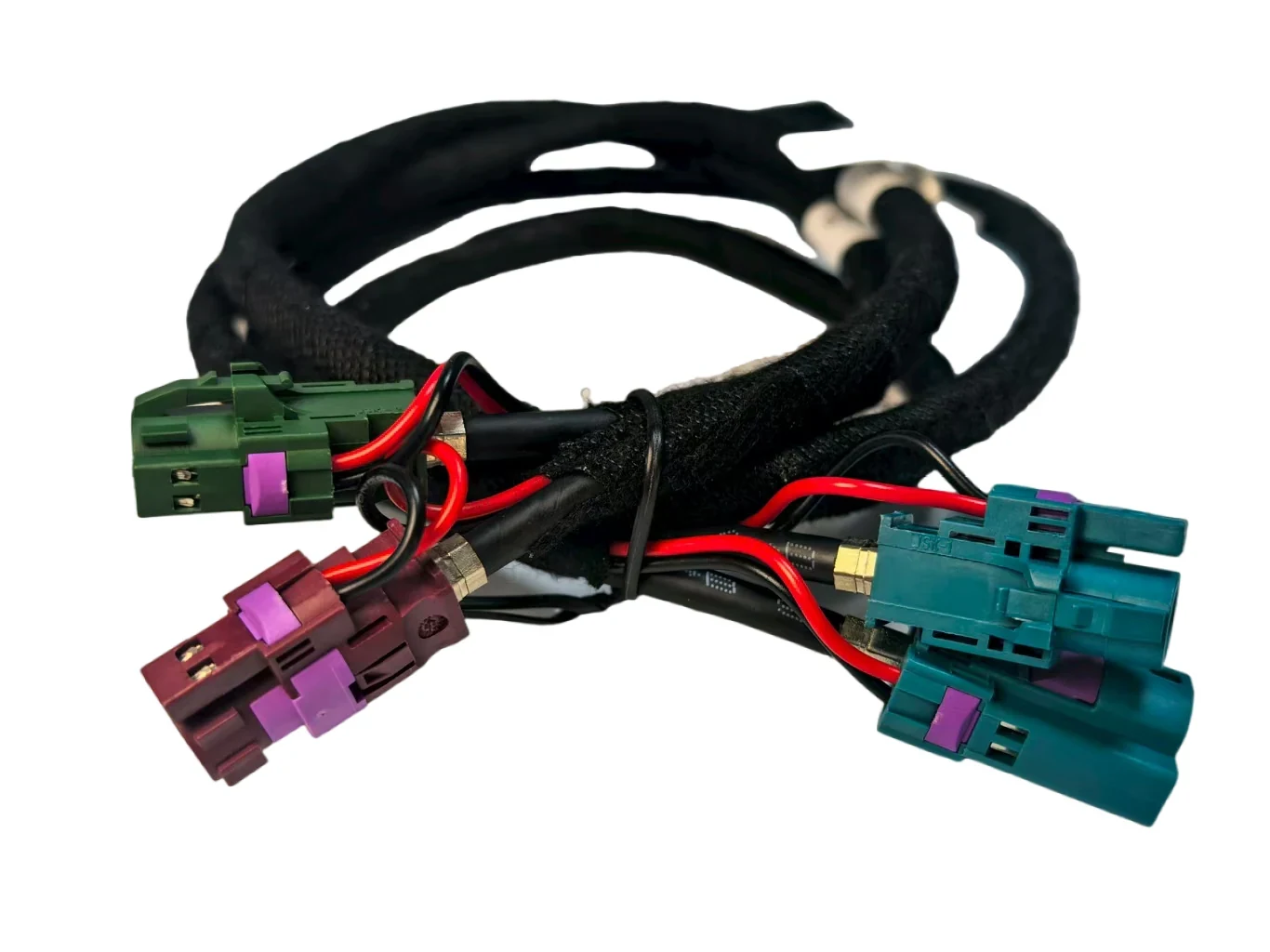

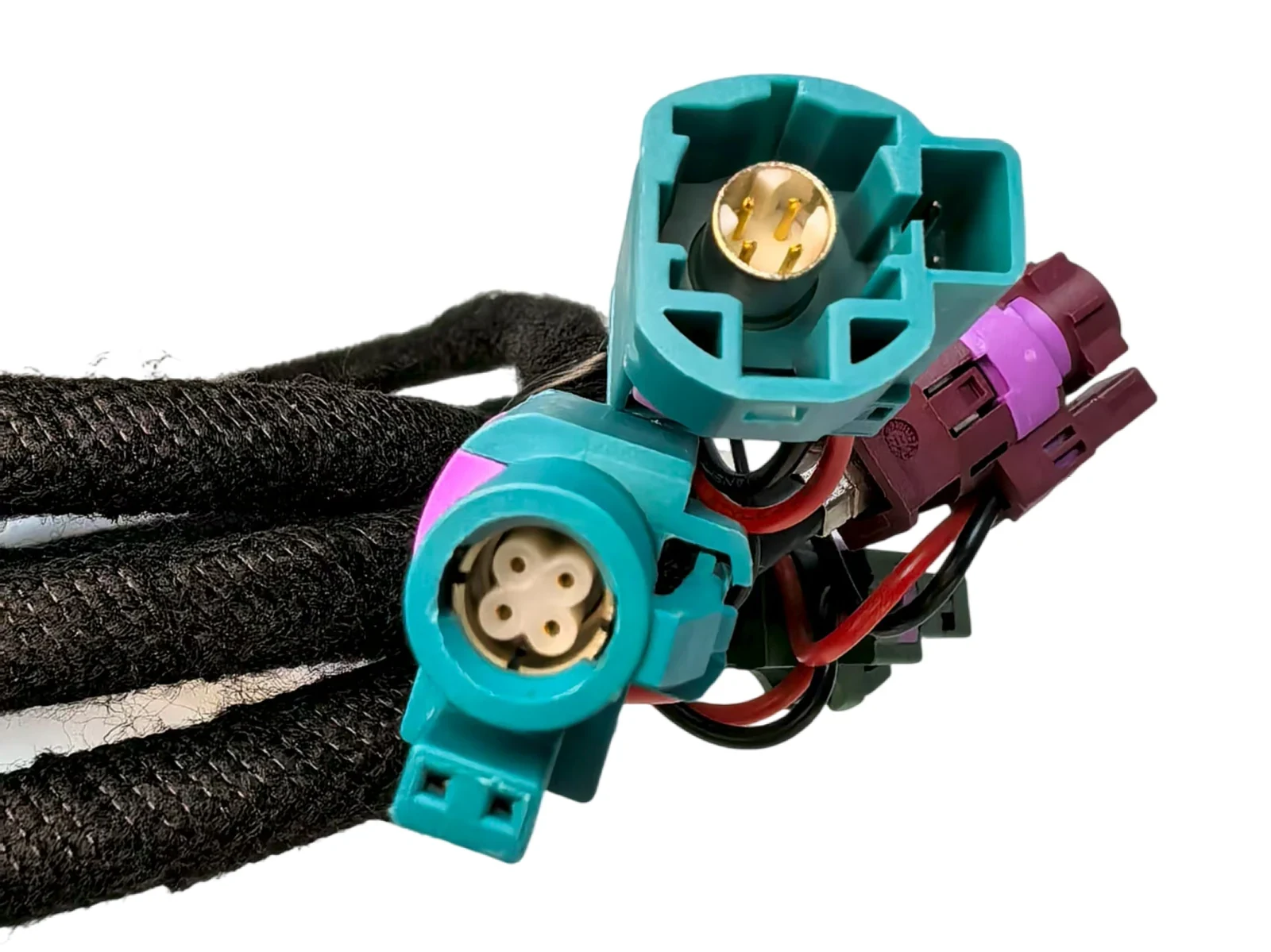

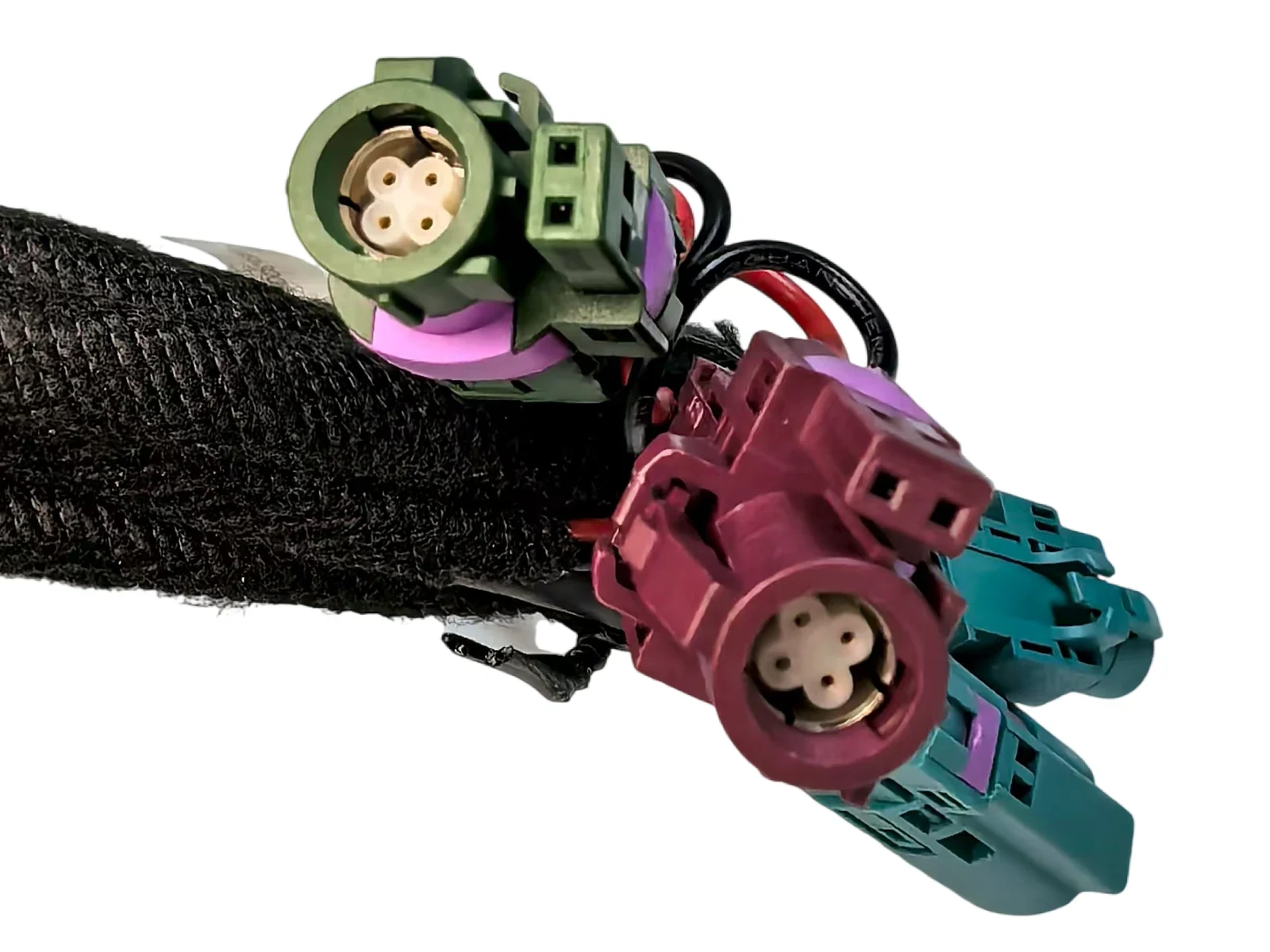

LVDS HSD Cable D L=650MM H=740MM for Chery Arrizo 8 &

LVDS HSD Cable D L=650MM H=740MM for Chery Arrizo 8, Tiggo 7 PLUS, Dongfeng Fengguang 580, and Fengyun A8 integrated displays.

Model No.: QCC-LVDS-0007
Applicable Brands: Chery, Dongfeng
Vehicle Models: Arrizo 8, Tiggo 7 PLUS, Fengguang 580, Fengyun A8
Model Years: 2022, 2024
Cable Length: L=650MM H=740MM
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We support OEM and ODM customization for this LVDS HSD cable, including length adjustments and connector coding modifications. Please provide your specific technical drawings or vehicle model details for tailored solutions.

Quality & Testing

RoHS compliance verification for raw materials

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Which vehicles are compatible with this LVDS HSD Cable?
A: This cable is compatible with the 2022 Chery Arrizo 8, 2022 Chery Tiggo 7 PLUS, 2022 Dongfeng Fengguang 580, and 2024 Chery Fengyun A8.

Q: What are the exact dimensions of this cable?
A: The cable has a length (L) of 650MM and a height/width (H) of 740MM.

Q: Is this cable suitable for integrated instrument and center console screens?
A: Yes, it is specifically designed for integrated instrument and center console configurations in the specified Chery and Dongfeng models.

Part Number: QCC-LVDS-0007

Product Introduction

The LVDS HSD Cable D (L=650MM, H=740MM) is a specialized high-speed data interconnect designed for modern automotive infotainment systems. It bridges the gap between the instrument cluster and the center console in integrated display setups, ensuring stable signal transmission for 15.6-inch screens. This component is typically specified by automotive engineers and procurement specialists looking for precise replacement or integration solutions for specific OEM platforms.

Engineered for compatibility with the 2022 Chery Arrizo 8, 2022 Chery Tiggo 7 PLUS, 2022 Dongfeng Fengguang 580, and 2024 Chery Fengyun A8, this cable supports the integrated instrument and center console architecture. The specific dimensions (L=650MM, H=740MM) ensure correct routing and fitment within the vehicle's dashboard harness. It facilitates reliable video and data transfer between the display modules, critical for maintaining the functionality of dual-screen or single-wide-screen configurations in these models.

We support OEM and ODM requirements for this specific LVDS HSD cable configuration. To receive an accurate quotation, please provide your vehicle VIN or specific part requirements to verify fitment for your model year. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your specific needs to proceed with your order.

Key Features

Specific Application: Designed for Chery Arrizo 8, Tiggo 7 PLUS, Dongfeng Fengguang 580, and Fengyun A8 integrated display systems.
Precise Dimensions: Features L=650MM and H=740MM lengths to ensure correct fitment and routing in the dashboard harness.
Signal Integrity: LVDS HSD technology ensures high-speed, low-interference data transmission for 15.6-inch screen interfaces.
Integrated Display Support: Specifically engineered for models with integrated instrument and center console screens.
OEM Compatibility: Manufactured to meet the stringent requirements of Dongfeng and Chery vehicle platforms.
Quality Assurance: Produced in an ISO 9001-certified facility with RoHS-compliant raw materials and TÜV Rheinland audits.
