DSP amplifier wire harness for Chery Tiggo 9 Article 0000/315011 with AVSS 1.25mm² wiring

DSP Amplifier Wire Harness for Chery Tiggo 9 | Article

Custom DSP amplifier wire harness for Chery Tiggo 9, Article 0000/315011, designed for Musway interface integration.

Model No.: *0000/315011
Applicable Brands: Chery
Vehicle Models: Tiggo 9

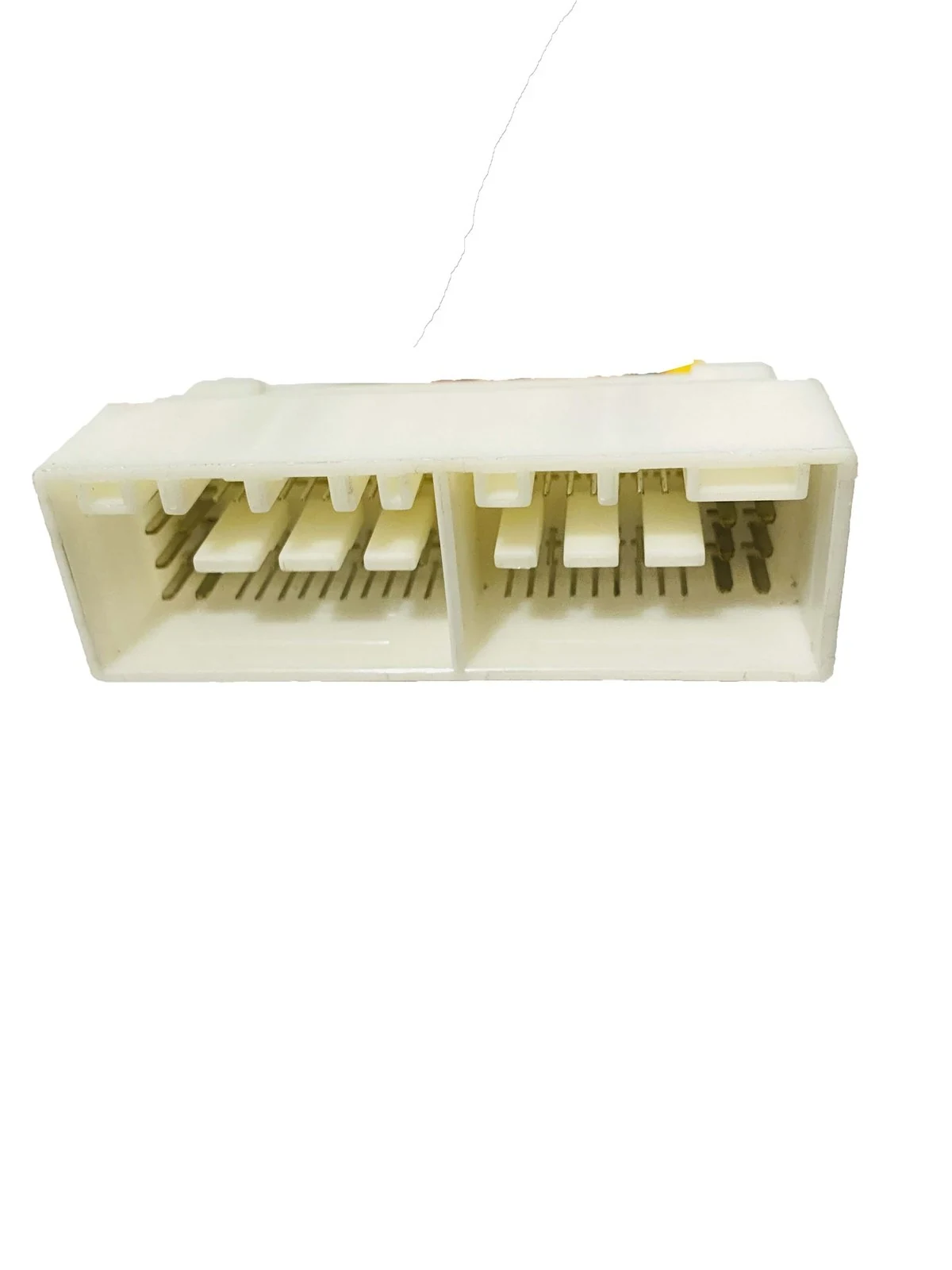

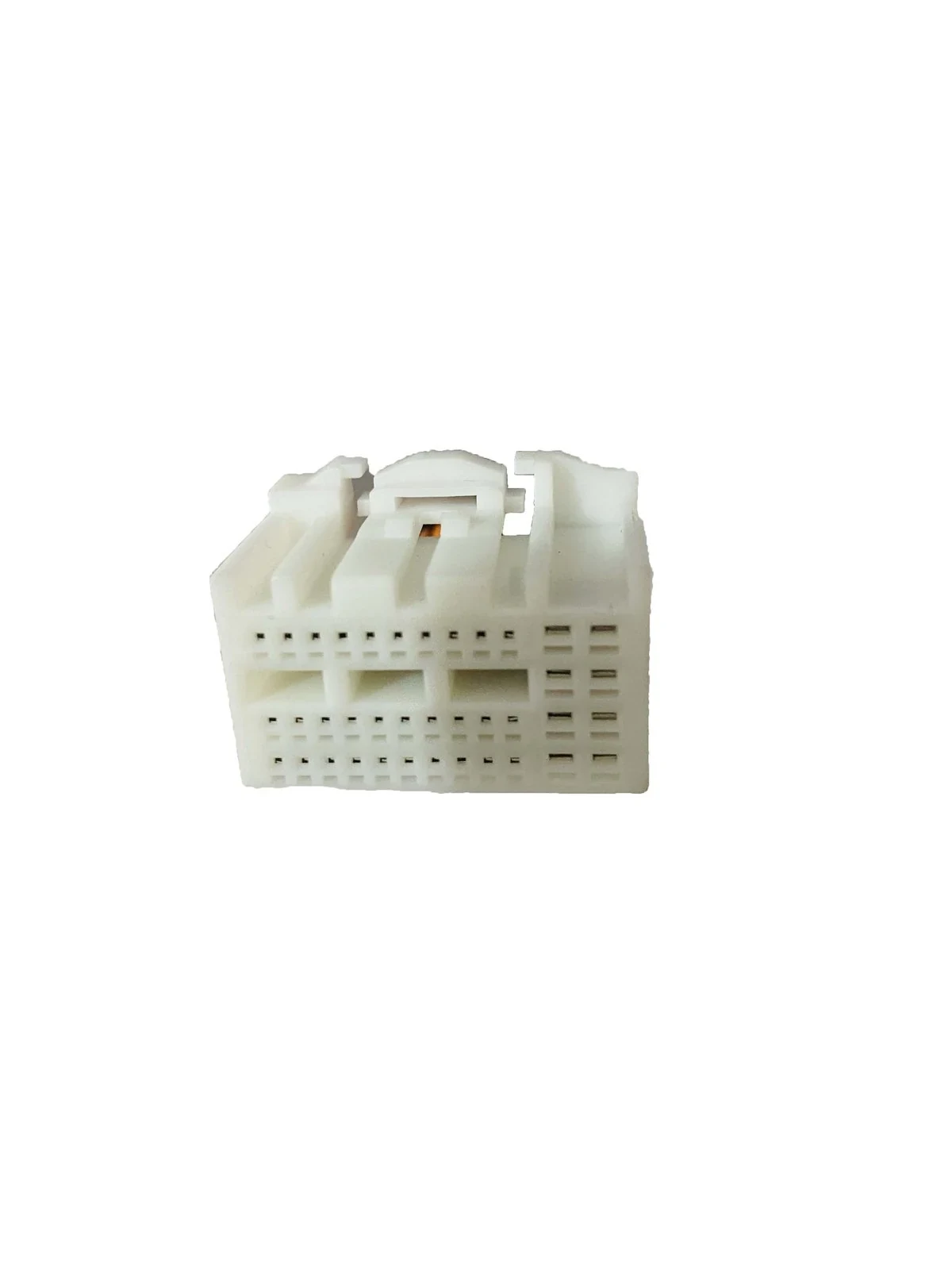

Connector Part No.: Hyundai 73P connector
Pin Count: 73P
Wire Specification: AVSS 1.25mm²
Voltage / Current: 12~24V
Temperature Range: -40~105°
Weight: / 399.0000 kg
MOQ: 200 pcs
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM customization for DSP amplifier wire harnesses. Customers can provide their specific machine or interface requirements, and we will redesign and mass-produce dedicated T-line harnesses with exclusive interfaces for that machine.

Quality & Testing

Visual inspection of connectors and wire routing Continuity testing for electrical connections Insulation resistance testing per AVSS standards RoHS compliance verification for raw materials

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Can this harness be customized for a different DSP amplifier model?
A: Yes, we support OEM/ODM customization. You can provide the target machine or amplifier model, and we will redesign a dedicated T-harness with the appropriate interface.

Q: What is the specific wire specification used in this harness?
A: The harness uses AVSS 1.25mm² wire, which is a Japanese-standard thin-wall automotive wire rated for 105°C, ensuring reliable performance in automotive audio applications.

Q: How do I request a quotation for this product?
A: Please provide the Article number *0000/315011 or specify your customization requirements. We will confirm the lead time and pricing based on your order quantity and specific needs.

Part Number: *0000/315011

Product Introduction

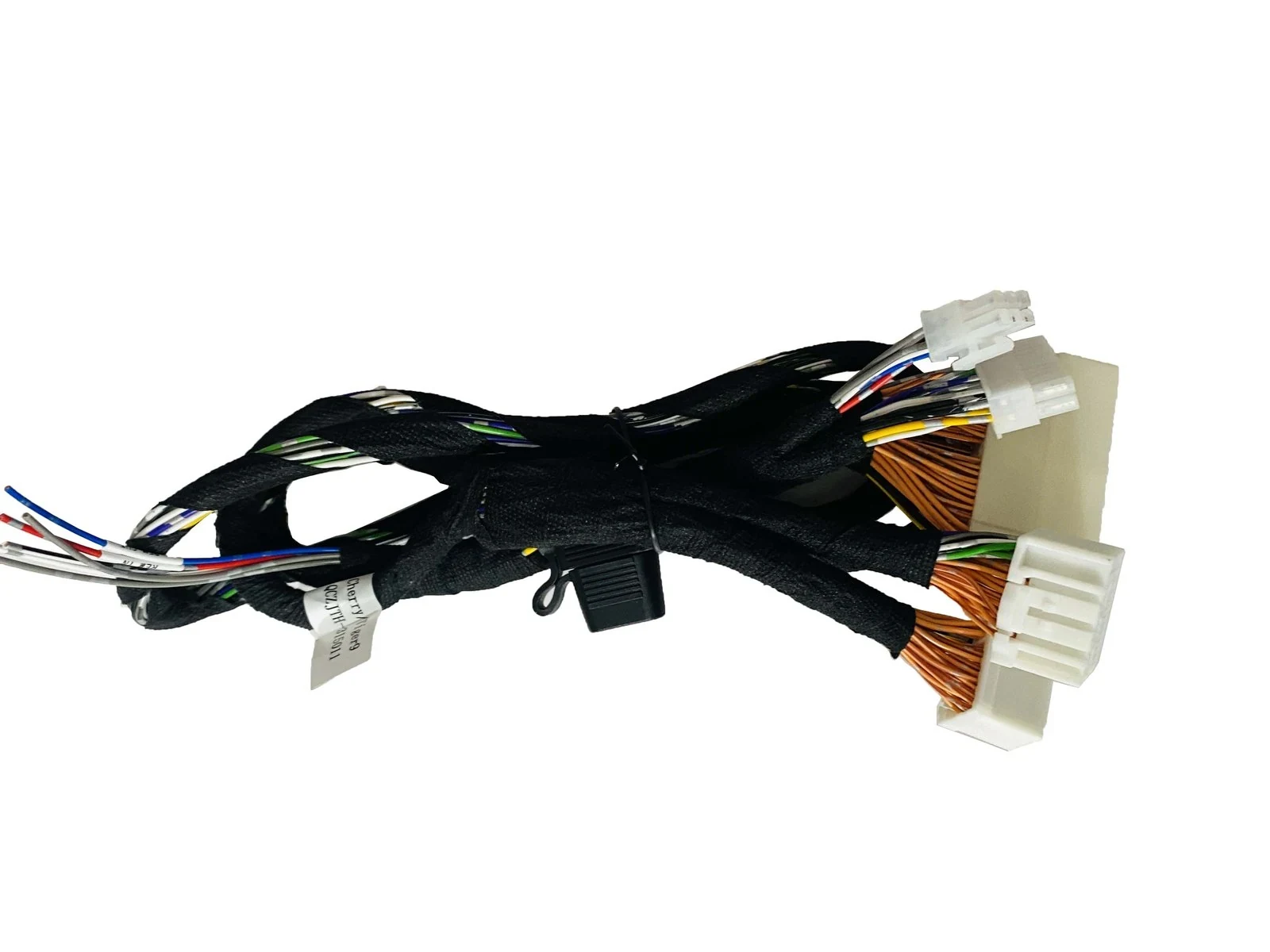

This product is a dedicated DSP amplifier wire harness engineered for the Chery Tiggo 9, specifically designed to interface with Musway systems. It serves as a critical connection component for automotive audio modifications, allowing technicians and procurement buyers to integrate aftermarket DSP amplifiers without damaging factory wiring. The harness is specified for vehicles requiring precise signal and power routing for audio upgrades.

Constructed with AVSS 1.25mm² wire, this harness ensures stable current transmission and signal integrity for connected audio components. The Article *0000/315011 designation confirms its specific application for the Tiggo 9 platform, ensuring a secure fit for Musway-compatible setups. By providing a dedicated interface, it simplifies installation and reduces the risk of electrical faults during the modification process.

We support OEM/ODM customization, including the design and mass production of dedicated T-harnesses for specific customer machines. To obtain an accurate quotation, please provide the target machine model or interface requirements for redesign. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland, with all raw materials being RoHS compliant and supported by supplier SGS test reports. Contact us to discuss your specific engineering needs.

Key Features

Precise Application Fit: Designed specifically for the Chery Tiggo 9, ensuring correct physical and electrical alignment for Musway DSP integration.
Standardized Wire Gauge: Utilizes AVSS 1.25mm² wire, meeting Japanese automotive standards for reliable power and signal transmission in audio circuits.
Dedicated Interface Design: Functions as a specialized T-harness to bridge factory audio outputs with aftermarket DSP amplifiers efficiently.
Article Specificity: Identified by Article *0000/315011, guaranteeing that the connector layout and pinout match the intended vehicle platform.
Customization Capability: Supports OEM/ODM services where dedicated T-harnesses are redesigned and mass-produced based on customer-provided machine specifications.
Quality Assurance: Manufactured in a facility audited by TÜV Rheinland, ensuring consistent production quality and adherence to international standards.
