PAL0105R Ford Series DSP Power Cable 19 UL 1007 16AWG

Ford Series Power Cable (19) | PAL0105R DSP Harness

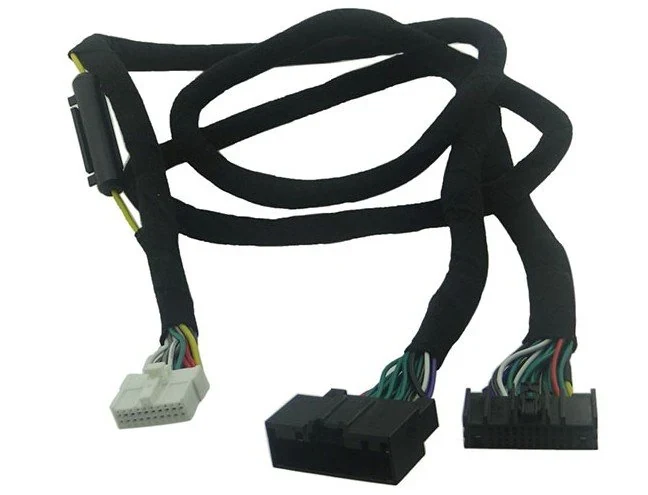

PAL0105R is a 19 power cable designed for Ford series DSP systems, utilizing UL 1007 16AWG wire for reliable power delivery.

Model No.: *10021/000019
Applicable Brands: Ford
Connector Part No.: 24P connector
Pin Count: 24P
Wire Specification: 1007 16AWG
Voltage / Current: 12~24V
Temperature Range: -20~85°
MOQ: 200 pcs
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order; please contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

The factory specializes in custom-building dedicated T-harnesses based on customer-provided machines. You can supply your specific DSP unit or machine, and we will redesign and mass-produce T-line harnesses with interfaces exclusively fitted to your equipment. This OEM/ODM capability ensures precise fitment and reliable connections for unique applications.

Quality & Testing

Visual inspection of wire insulation and conductor RoHS compliance verification of raw materials Dimensional verification of custom interfaces

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact connector type for the PAL0105R?
A: The specific connector part number and pinout are not listed in standard specifications. Please provide your mating device or machine details for precise interface customization and quotation.

Q: Can this power cable be customized for a different vehicle model?
A: Yes, we offer OEM/ODM services. If you provide your specific machine or DSP amplifier, we can redesign and mass-produce a custom T-harness with the correct interfaces for your application.

Q: What is the minimum order quantity for this product?
A: The MOQ is 200 pcs. For customization projects, quantities may vary based on the specific engineering requirements; please contact us for details.

Part Number: *10021/000019

Product Introduction

The PAL0105R is a specialized power cable engineered for Ford series DSP (Digital Signal Processor) audio systems. It serves as a critical power connection component, typically specified by automotive audio installers, fleet maintenance engineers, and aftermarket DSP integration specialists who require precise power delivery to amplifier units.

Constructed with UL 1007 16AWG electronic wire, this harness ensures stable electrical conductivity and durability within the vehicle's power distribution network. The 19# designation identifies its specific circuit role within the broader DSP series architecture. While exact connector pinouts and mating interfaces are not detailed in standard catalogs, this component is part of a platform designed for high-reliability connections in automotive environments.

We support comprehensive OEM/ODM customization for this DSP power cable series. To receive an accurate quotation, please provide your specific machine requirements, including desired cable length, connector type, and any unique interface needs. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us to discuss your customization requirements and obtain a tailored quote.

Key Features

Verified Wire Standard: Utilizes UL 1007 16AWG electronic wire, rated for 80°C and 300V, ensuring reliable performance in automotive electrical environments.
Ford Series Compatibility: Specifically designed for the Ford series DSP platform, providing a targeted solution for compatible audio system power distribution.
OEM/ODM Customization: Factory supports custom T-harness builds; customers can provide their specific machine for redesign and mass production of dedicated interfaces.
Quality Management: Manufactured within an ISO 9001-certified quality management system, ensuring consistent production standards and process control.
Material Compliance: All raw materials used in production are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials upon request.
Engineering Support: Designed to reduce rewiring complexity for installers by providing a dedicated power solution tailored to specific DSP amplifier interfaces.
