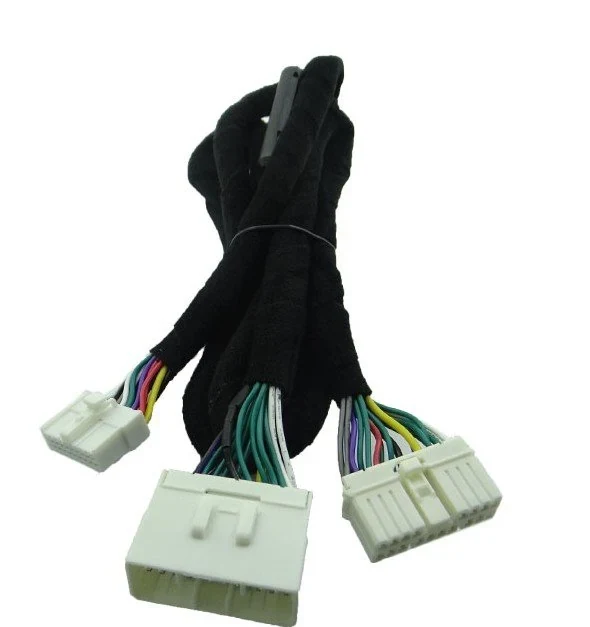

PAL0109R Power Cable 24 for JMC | 10020/000024 | DSP Series
PAL0109R power cable (24) designed for JMC vehicle electrical systems, featuring UL 1007 16AWG construction for reliable power delivery.
- Model No.
- *10020/000024
- Applicable Brands
- JMC
- Connector Part No.
- ISO-16P connector
- Pin Count
- 16P
- Wire Specification
- 1007 16AWG
- Voltage / Current
- 12~24V
- Temperature Range
- -20~85°
- MOQ
- 200 pcs
- Sample
- Paid samples; request a sample quotation.
- Lead Time
- Made to order. Contact us to confirm production lead time.
Customization Options
We offer dedicated T-harness customization based on the customer's machine. Customers provide the machine, and we redesign and mass-produce T-line harnesses with interfaces exclusively fit for that specific unit. This OEM/ODM capability ensures precise compatibility for unique or legacy vehicle platforms.
Quality & Testing
RoHS compliance verification for raw materials
Standards & Compliance
QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.
Frequently Asked Questions
A: The PAL0109R uses UL 1007 16AWG wire, which is a standard electronic hook-up wire rated for automotive power applications.
Q: Can this cable be customized for non-standard JMC models?
A: Yes, we support OEM/ODM customization. If your machine requires a specific interface, you can provide the unit for us to redesign and mass-produce a dedicated T-harness.
Q: What information is needed to get an accurate quote for this power cable?
A: Please provide the vehicle VIN, the original part number (10020/000024), or detailed wiring diagrams to ensure the correct specification and fitment for your project.
Part Number: *10020/000024
Product Introduction
The PAL0109R is a specialized power cable (24#) engineered for JMC vehicle applications, specifically designed to integrate with DSP series electrical systems. It serves as a critical component for maintaining stable power connections within the vehicle's audio or auxiliary electrical infrastructure, meeting the specific requirements of JMC platform designs.
Constructed with UL 1007 16AWG wire, this harness ensures durable power transmission suitable for automotive environments. The 24# designation indicates its specific gauge and application profile within the DSP series lineup. While exact connector types and lengths are not specified in the standard data, the cable is built to support precise fitment for JMC models requiring this specific power interface.
For accurate quotations, please provide your vehicle VIN, existing part number, or detailed wiring diagrams to confirm compatibility. We offer full OEM/ODM support, backed by an ISO 9001-certified quality management system and factory audits by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS test reports available. Contact us to request a quote for PAL0109R or custom DSP harness solutions.
Key Features
Exact Part Number: Identified as PAL0109R with Article No. 10020/000024 for precise procurement and inventory management.
JMC Compatibility: Designed specifically for JMC vehicle electrical systems, ensuring correct fitment for applicable models.
Wire Construction: Utilizes UL 1007 16AWG wire, providing reliable conductivity and durability for automotive power applications.
DSP Series Integration: Part of the DSP series lineup, optimized for connecting power to DSP amplifiers or related audio components.
Customization Ready: Supports OEM/ODM requests; customers can provide machines for dedicated T-harness redesign and mass production.
Quality Assured: Manufactured under ISO 9001 certification with factory audits by TÜV Rheinland, ensuring consistent production standards.
