1.5m OBD 16P to DB 9P diagnostic cable with black jacket

OBD 16P to DB 9P Cable 1.5M | Diagnostic Adapter Harness

1.5m OBD 16P to DB 9P cable for connecting OBDII diagnostic tools to DB9 serial interfaces.

Model No.: QCZJ08-OBD0051
Applicable Brands: QCconnector
Pin Count: 16P (OBD) to 9P (DB9)
Cable Length: 1.5m
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

OEM and ODM services are available to meet specific interface requirements. Buyers can request custom cable lengths, alternative connector types, or specific pin-out configurations. Please provide detailed technical drawings or mating part numbers for accurate customization support.

Quality & Testing

Visual inspection of connectors Continuity testing Insulation resistance testing

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact pinout configuration for this OBD 16P to DB 9P cable?
A: The pinout configuration is not specified in the standard product data. Please provide your specific wiring diagram or mating part numbers to confirm compatibility and request a custom quotation.

Q: Is this cable suitable for automotive OBDII diagnostics?
A: Yes, the 16-pin OBDII connector is designed for standard OBDII interfaces. However, DB9 connections are often used for industrial or legacy diagnostic tools. Verify your device's requirements before ordering.

Q: Can I order a different length for this cable?
A: Yes, OEM and ODM customization is available. You can request a different cable length by providing your specific requirements during the quotation process.

Part Number: QCZJ08-OBD0051

Product Introduction

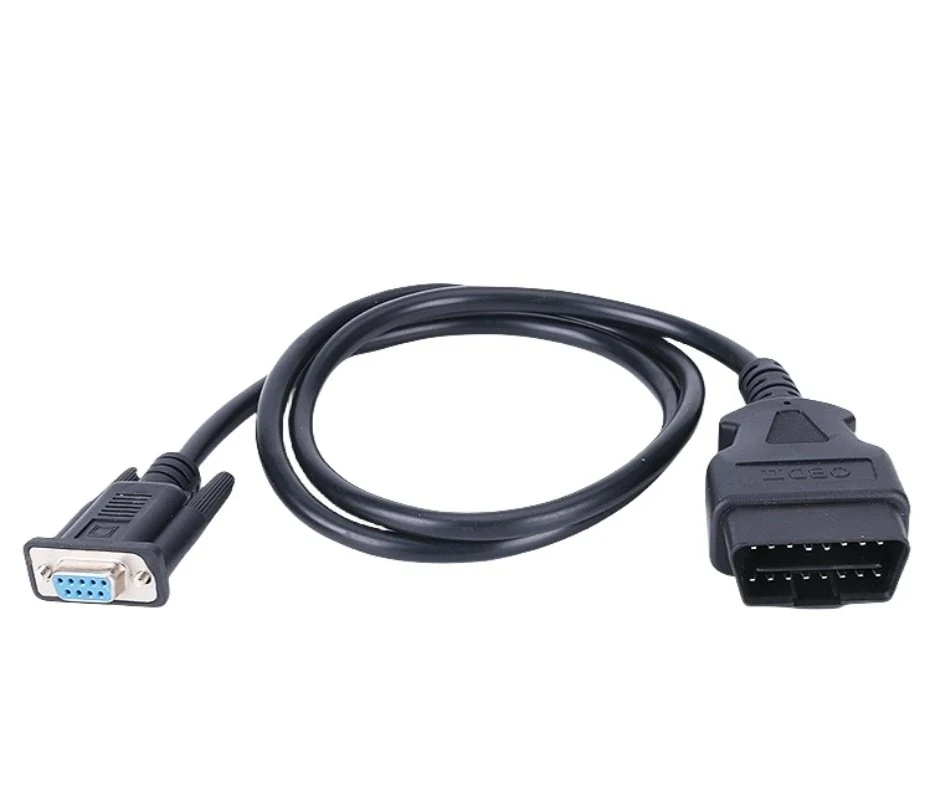

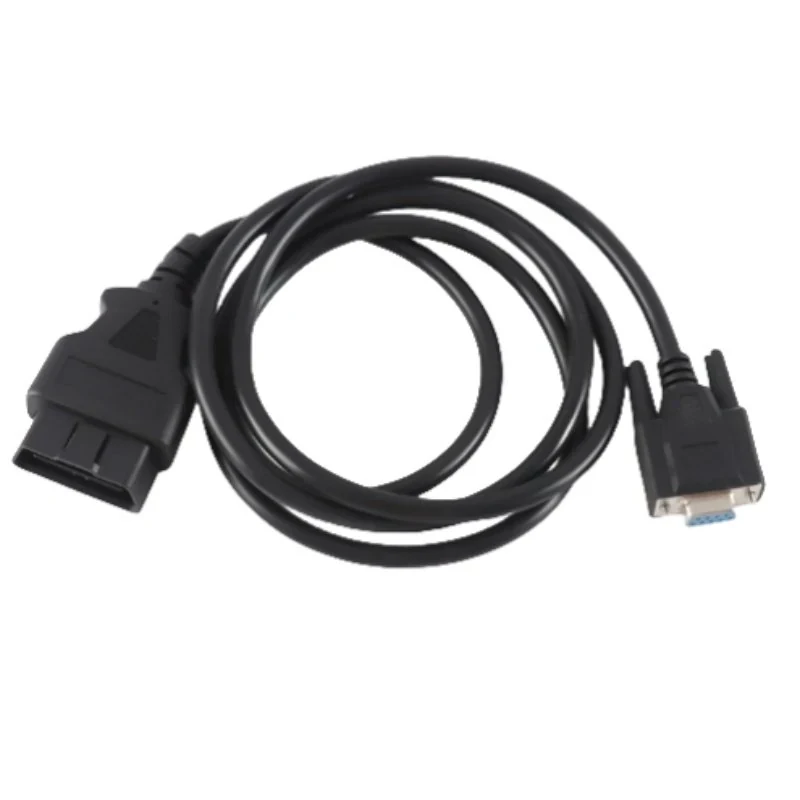

This 1.5m OBD 16P to DB 9P cable serves as a critical interface between standard OBDII diagnostic ports and devices utilizing DB9 serial connections. It is primarily specified by automotive technicians, industrial equipment integrators, and procurement buyers who need to bridge legacy serial hardware with modern OBDII vehicle diagnostic systems or industrial control units.

The harness features a 16-pin OBDII male connector on one end and a DB9 male connector on the other, ensuring a secure physical link for data transmission. While specific wire gauges and electrical ratings are not provided in the product data, the assembly is designed for standard diagnostic signal integrity. The 1.5-meter length provides sufficient flexibility for workshop environments without introducing unnecessary signal degradation.

We support OEM and ODM requirements for custom lengths, connector types, and pin-outs. To receive an accurate quotation, please provide your specific mating connector part numbers, required cable length, and any specific environmental or electrical ratings. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us to confirm production lead time.

Key Features

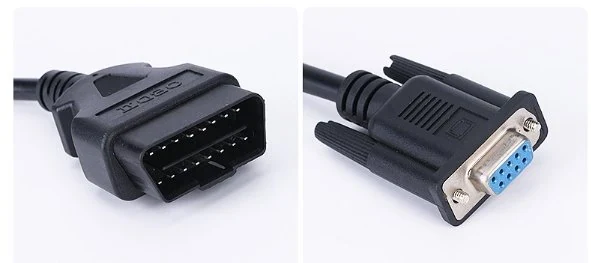

Connector Configuration: Features a 16-pin OBDII connector paired with a DB9 serial connector for direct interface compatibility.
Cable Length: Standard 1.5-meter length provides optimal reach for diagnostic setups and industrial applications.
Part Number: Identified by Article No. QCZJ08-OBD0051 for precise inventory and ordering reference.
Diagnostic Utility: Designed to facilitate data transfer between OBDII ports and DB9-equipped diagnostic or monitoring tools.
Build Quality: Manufactured under an ISO 9001-certified quality management system to ensure consistent assembly standards.
Material Compliance: Constructed with RoHS-compliant raw materials, supporting environmental safety regulations for exported goods.
