OBD 16P to 20PIN round connector diagnostic cable, 200mm length, black housing

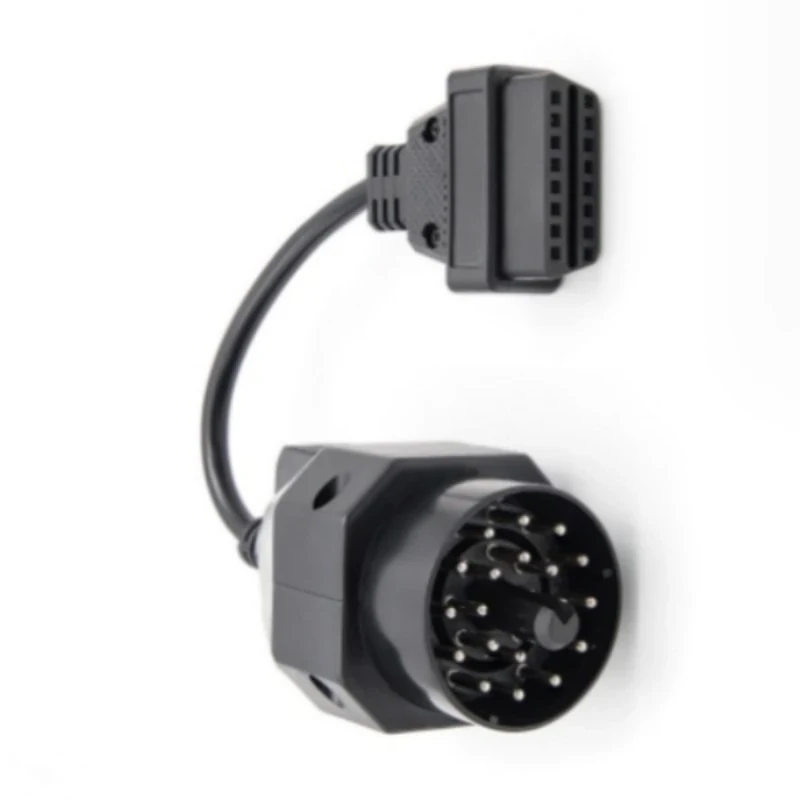

OBD 16P to 20PIN Round Connector Cable, 200mm, part QCZJ08-OBD0052 - detail view 2

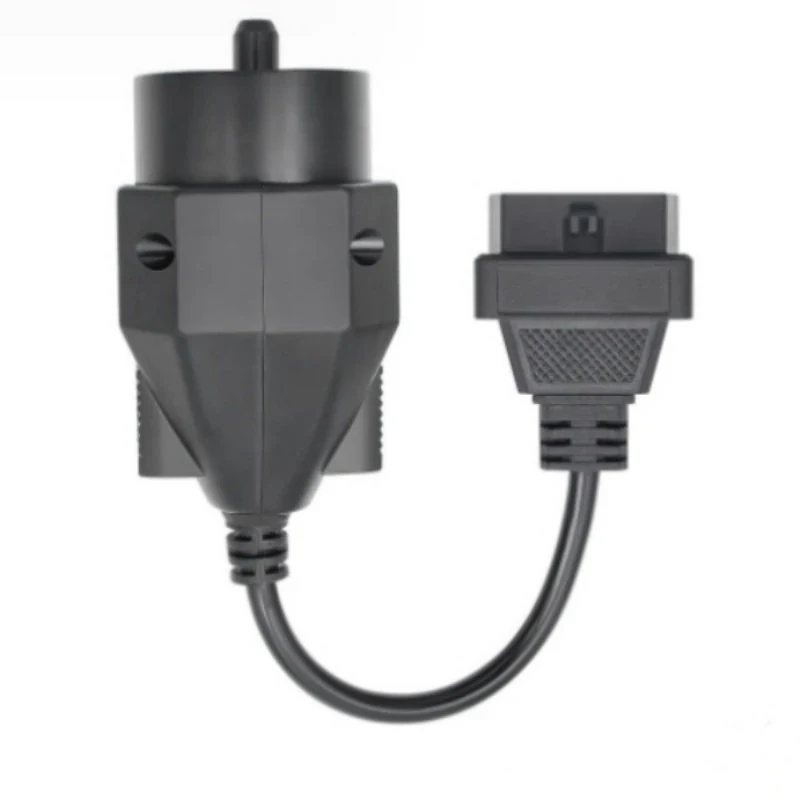

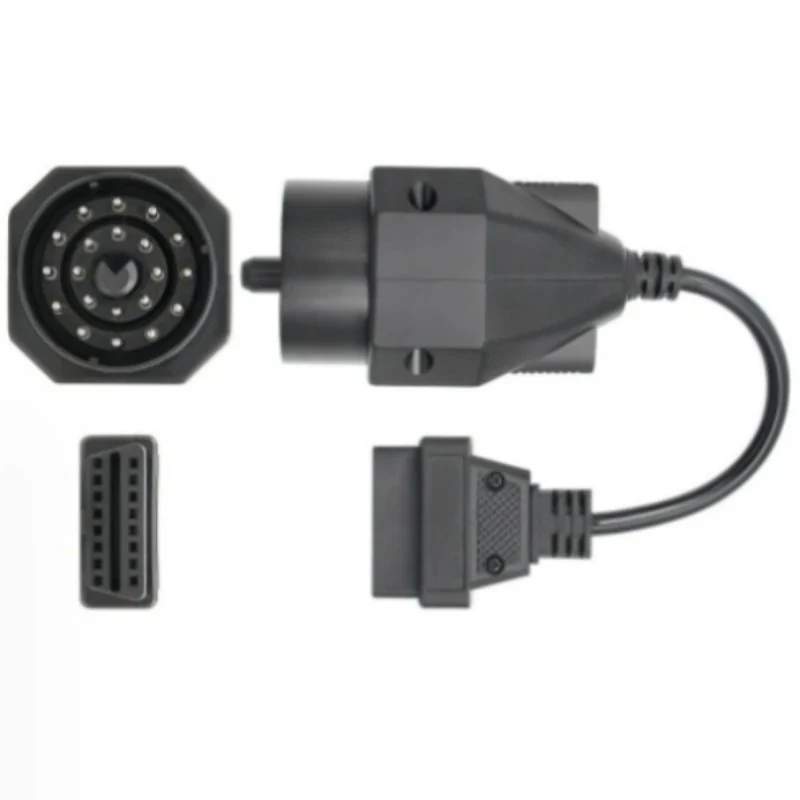

OBD 16P to 20PIN Round Connector Cable, 200mm

This OBD 16P to 20PIN round connector cable, L=200mm, provides a diagnostic interface for automotive applications.

Model No.: QCZJ08-OBD0052
Applicable Brands: QCconnector
Pin Count: 16P to 20PIN
Cable Length: L=200mm
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM services for connector housing materials, pin configurations, and cable lengths. Buyers should provide mating connector drawings or samples to ensure compatibility. Specific environmental ratings or custom wire gauges can be accommodated based on technical requirements.

Quality & Testing

Insulation Resistance Test Hi-Potential (High Voltage) Test Continuity Test Pull Force Test Vibration Test

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact mating interface for this connector?
A: This is an OBD 16P to 20PIN round connector. Please provide your mating connector drawing or sample to verify exact pinout and housing compatibility.

Q: Can I customize the cable length or connector housing?
A: Yes, OEM/ODM customization is available for cable length, connector material, and pin configuration. Please provide your technical specifications for a quote.

Q: What is the minimum order quantity?
A: The MOQ is 500 pieces. For sample orders, please note that finished-product samples are paid.

Part Number: QCZJ08-OBD0052

Product Introduction

This product is an OBD 16P to 20PIN round connector cable designed to bridge diagnostic interfaces in automotive systems. It is typically specified by engineers and procurement buyers requiring a specific physical mating interface for vehicle diagnostics or industrial equipment testing.

The connector features a 200mm length, providing adequate reach for bench testing or under-hood applications without excess slack. The round housing design offers robust mechanical protection for the internal terminals. While specific wire gauges and voltage ratings are not listed, the construction is intended for standard diagnostic signal transmission.

We support OEM and ODM customization for connector housing, pin configuration, and cable length. To receive an accurate quotation, please provide your mating connector drawings, required pinout diagram, and any specific environmental sealing or temperature requirements. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your technical specifications to proceed.

Key Features

Connector Type: OBD 16P to 20PIN round interface, designed for specific diagnostic mating requirements.
Cable Length: Fixed length of 200mm, optimized for compact diagnostic setups or specific vehicle mounting points.
Housing Design: Round connector profile offers durable protection and secure mating compared to flat counterparts.
Application: Suitable for automotive diagnostic equipment, industrial testing rigs, and specialized vehicle interfaces.
Build Quality: Manufactured in an ISO 9001-certified facility audited by TÜV Rheinland, ensuring consistent assembly standards.
Material Compliance: Constructed with RoHS-compliant raw materials, with supplier SGS test reports available for wire components.
