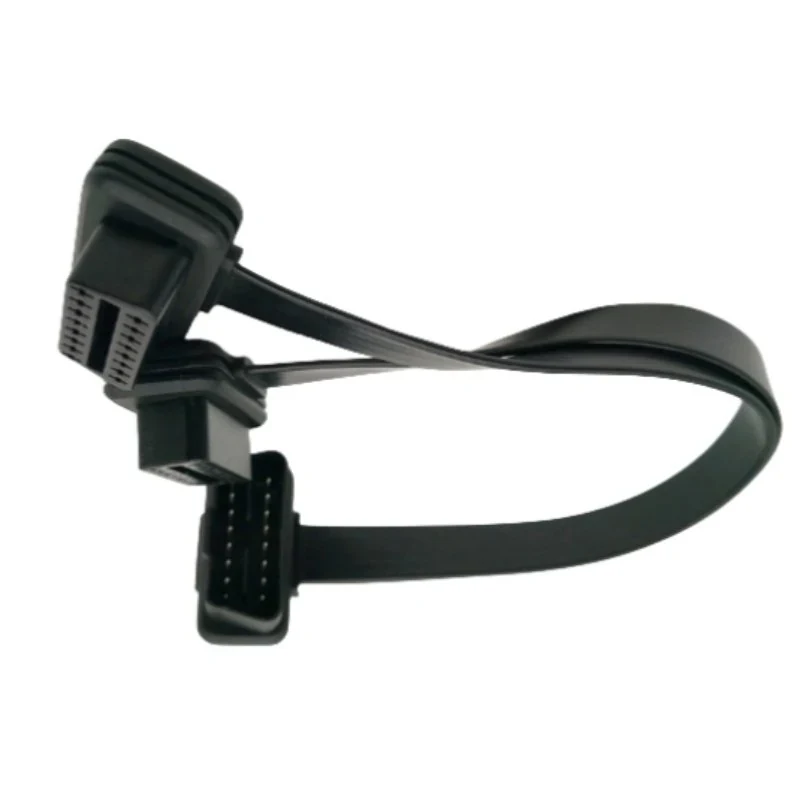

OBD2 Extension Cable L-Type 1-to-2 Flat 16-Pin 500mm

Part Number: QCZJ08-OBD0061

Product Introduction

This OBD2 extension cable is designed to extend the reach of standard diagnostic interfaces, featuring an L-type right-angle connector for improved ergonomics in tight engine bays or dashboards. It splits one input into two outputs via a flat cable design, allowing simultaneous connection of multiple diagnostic tools or power sources to the vehicle's OBDII port. This product is typically specified by automotive technicians, fleet maintenance engineers, and industrial equipment operators who require reliable signal integrity over extended distances.

The cable features a 16-pin 16-core configuration compatible with standard OBDII protocols. Constructed with a durable flat cable design, it reduces bulk and snagging risks compared to round cables. The L-type right-angle connector ensures a secure, low-profile connection that sits flush with the port, preventing accidental disconnection during operation. The 500mm length provides sufficient extension without excessive signal degradation.

OEM/ODM customization is available for specific connector types, cable lengths, and core counts. To receive an accurate quotation, please provide your required cable length, connector orientation, and any specific material or performance requirements. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Contact us to confirm production lead time.

Key Features

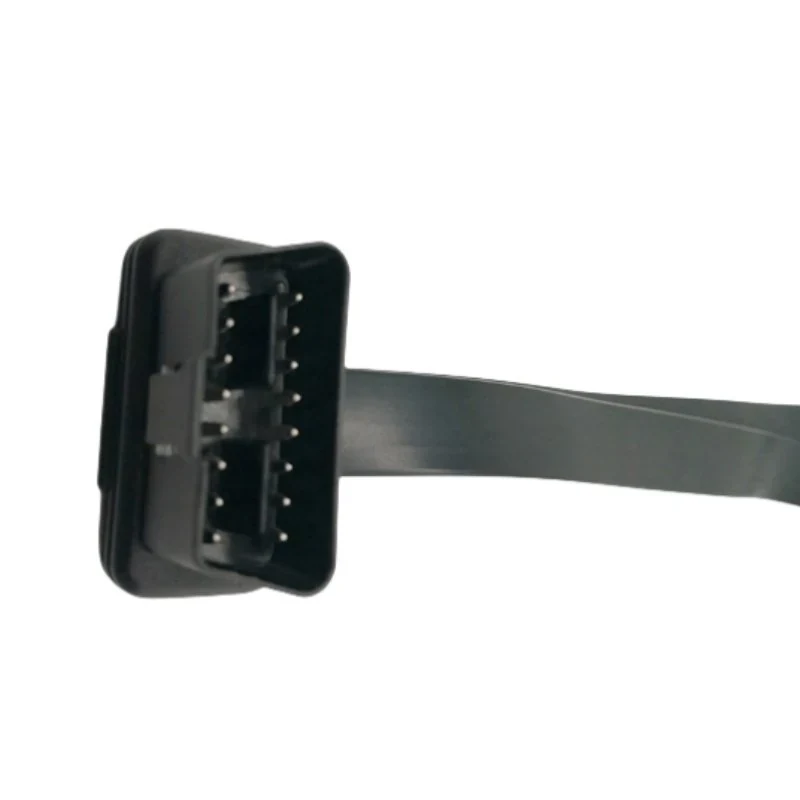

L-Type Right-Angle Connector: Designed for ergonomic installation in confined spaces, reducing strain on the OBDII port and preventing cable snagging.

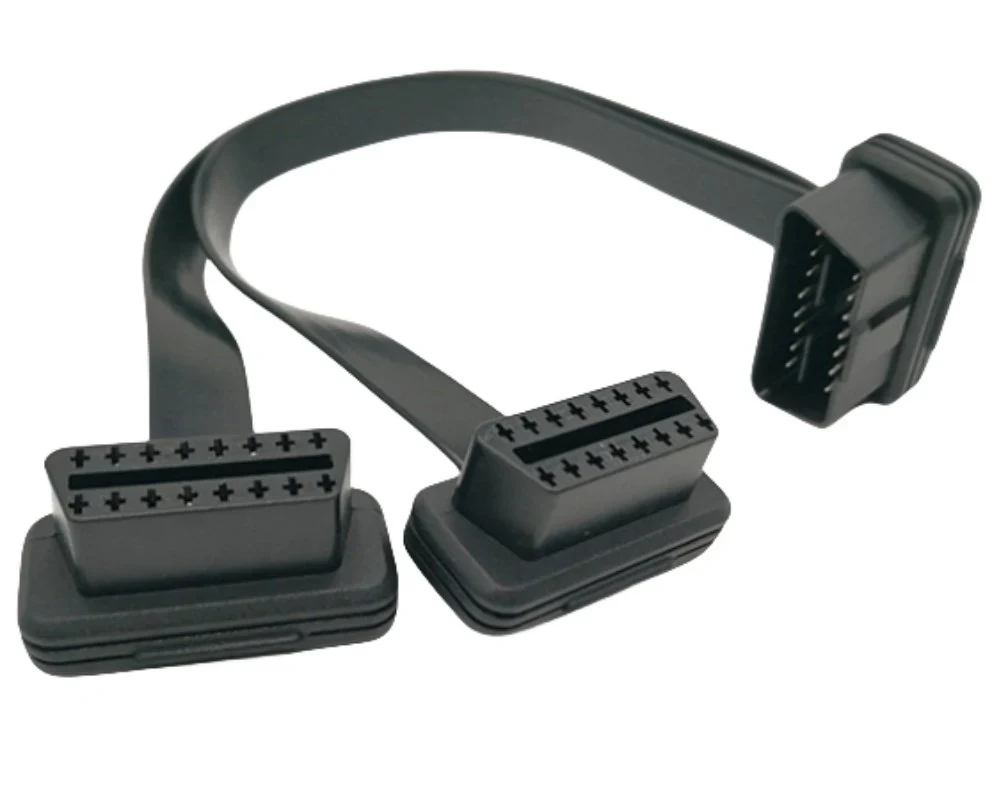

1-to-2 Split Design: Allows a single OBDII port to serve two devices simultaneously, ideal for powering and data logging with multiple diagnostic tools.

Flat Cable Construction: Minimizes bulk and improves routing flexibility, making it easier to manage cables in tight vehicle compartments or industrial setups.

16-Pin 16-Core Interface: Full pinout compatibility with standard OBDII connectors, ensuring reliable data transmission and power delivery for diagnostics.

500mm Extension Length: Provides sufficient reach for convenient tool placement while maintaining signal integrity for standard diagnostic applications.

Durable Build: Constructed with high-quality materials to withstand typical automotive and industrial environments, ensuring long-term reliability.
