OBD 16 Pin to 4 Pin Cable 200mm | QCZJ08-OBD0050 Diagnostic

Part Number: QCZJ08-OBD0050

Product Introduction

This OBD 16 Pin to 4 Pin cable serves as a critical interface solution for automotive diagnostic applications, bridging standard OBD ports to specialized 4-pin diagnostic equipment. It is primarily specified by automotive engineers, fleet maintenance managers, and industrial procurement buyers who require reliable signal transmission for vehicle troubleshooting and system diagnostics.

The cable features a precise length of 200mm, ensuring optimal reach without excess bulk in tight engine bays or dashboard compartments. Constructed with high-quality materials, it maintains signal integrity under standard operating conditions. The design supports robust connectivity for diagnostic tools, ensuring consistent performance for technical teams requiring accurate data transfer during vehicle maintenance and repair procedures.

We support OEM and ODM requirements for custom diagnostic cable assemblies. To receive an accurate quotation, please provide your specific connector type requirements, desired cable length, and any special environmental constraints. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Contact us to discuss your specific diagnostic cable needs.

Key Features

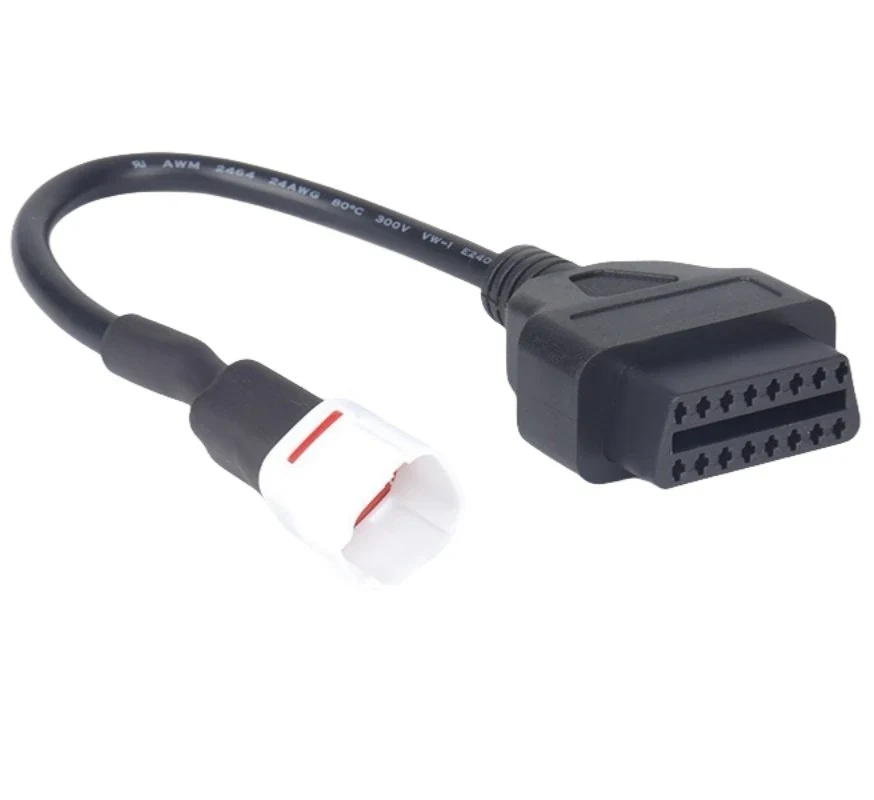

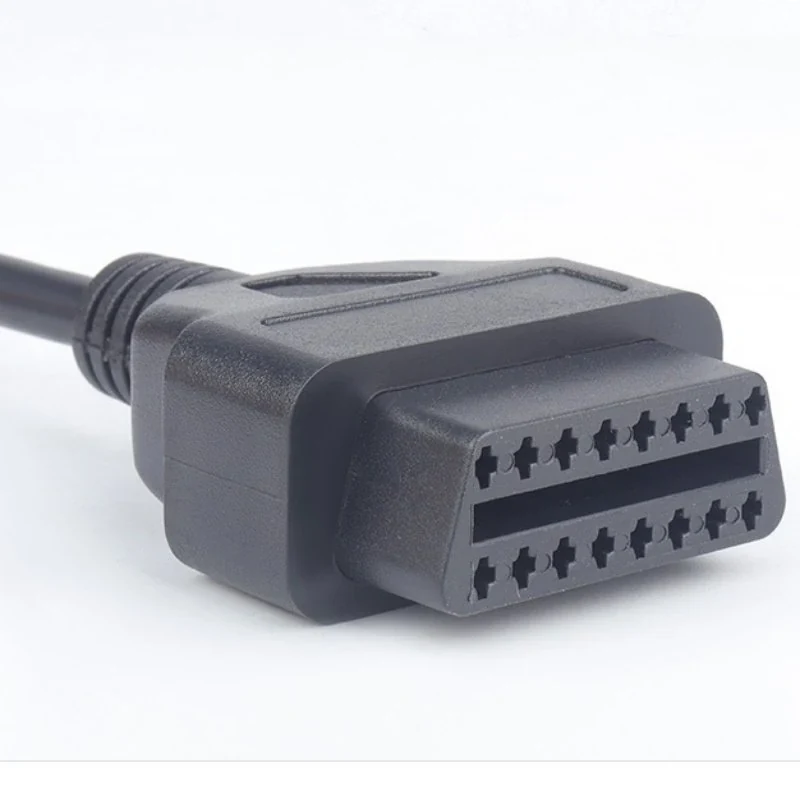

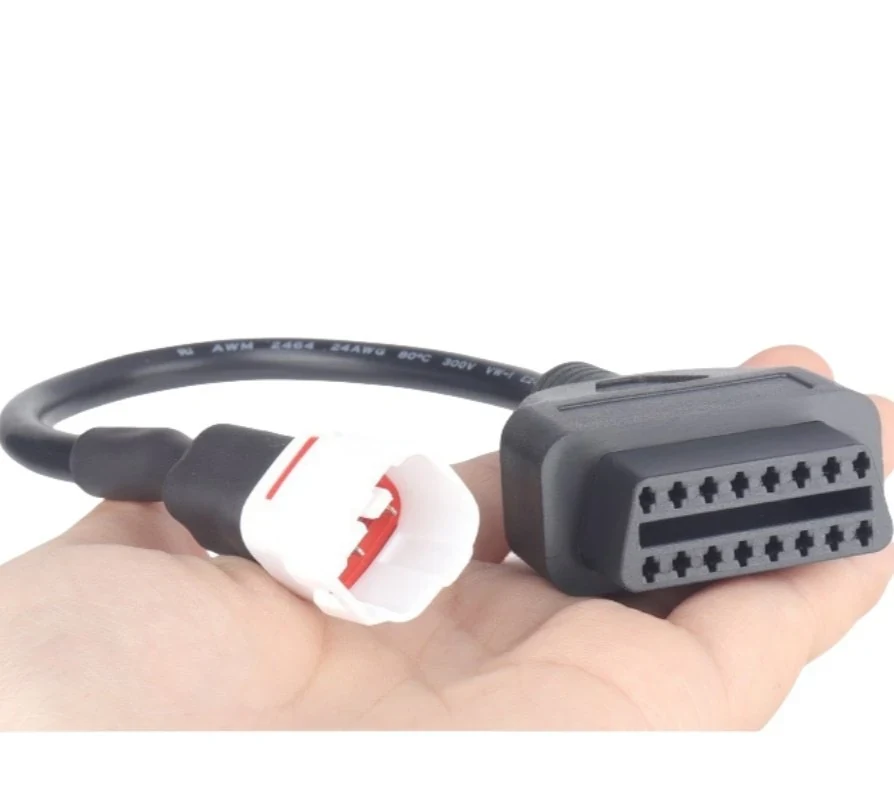

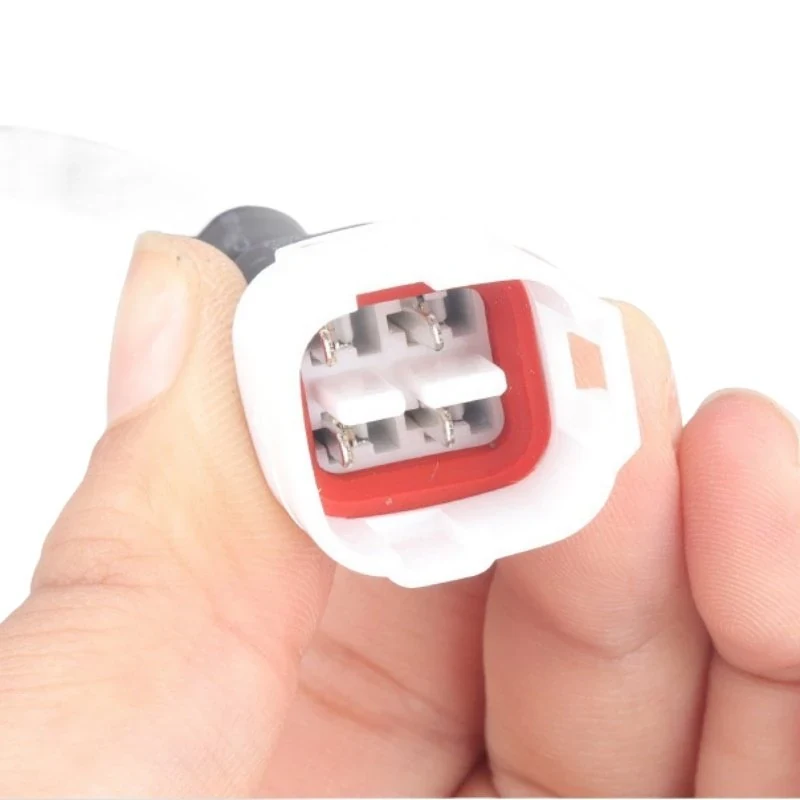

• Connector Configuration: Features a standard OBD 16-pin interface on one end and a 4-pin connector on the other, facilitating direct connection to compatible diagnostic tools.
• Optimal Length: Designed with a fixed length of 200mm, providing sufficient reach for most diagnostic setups while minimizing signal interference and clutter.
• Diagnostic Compatibility: Specifically engineered for automotive diagnostic applications, ensuring reliable data transmission between vehicle OBD ports and testing equipment.
• Durable Construction: Built to withstand the rigors of automotive environments, offering consistent performance for professional technicians and industrial users.
• Customization Options: Supports OEM and ODM requests, allowing buyers to tailor connector types and specifications to match specific diagnostic hardware requirements.
• Quality Assurance: Produced in a facility audited by TÜV Rheinland, adhering to ISO 9001 standards to ensure consistent quality and reliability in every unit.
