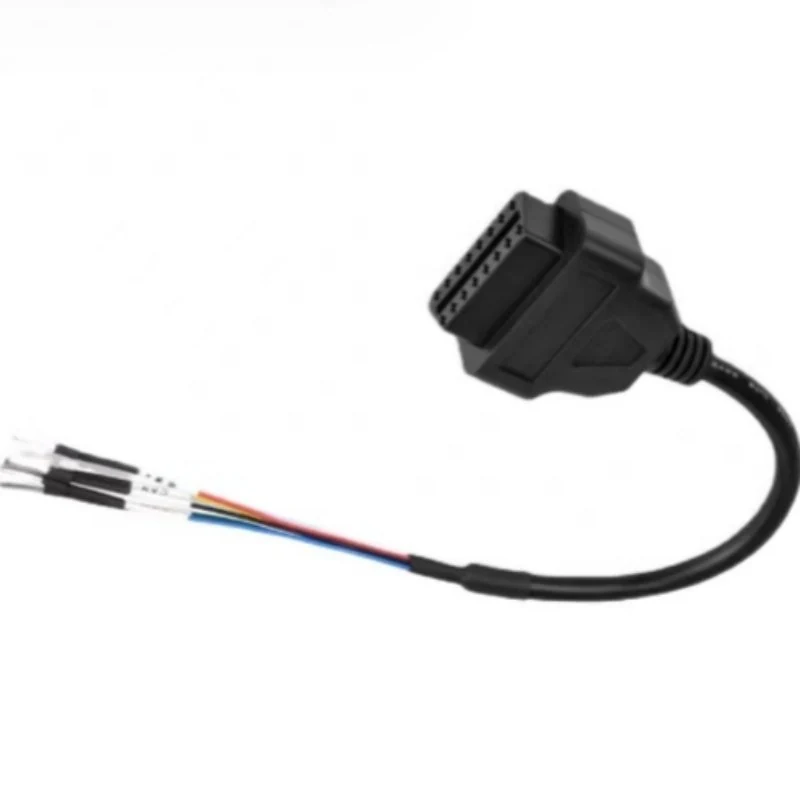

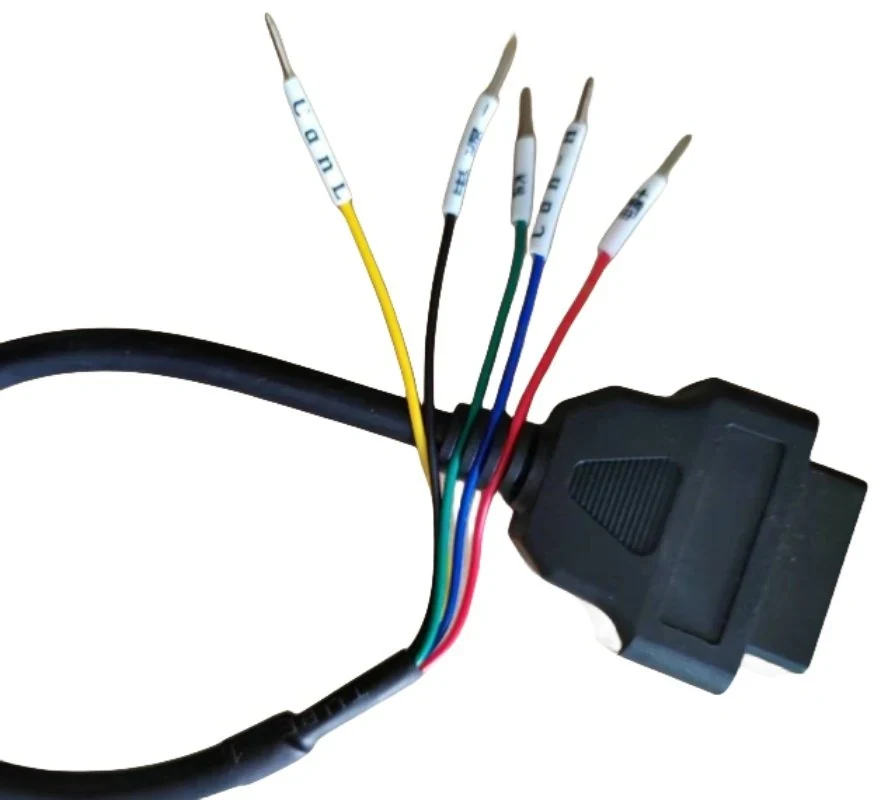

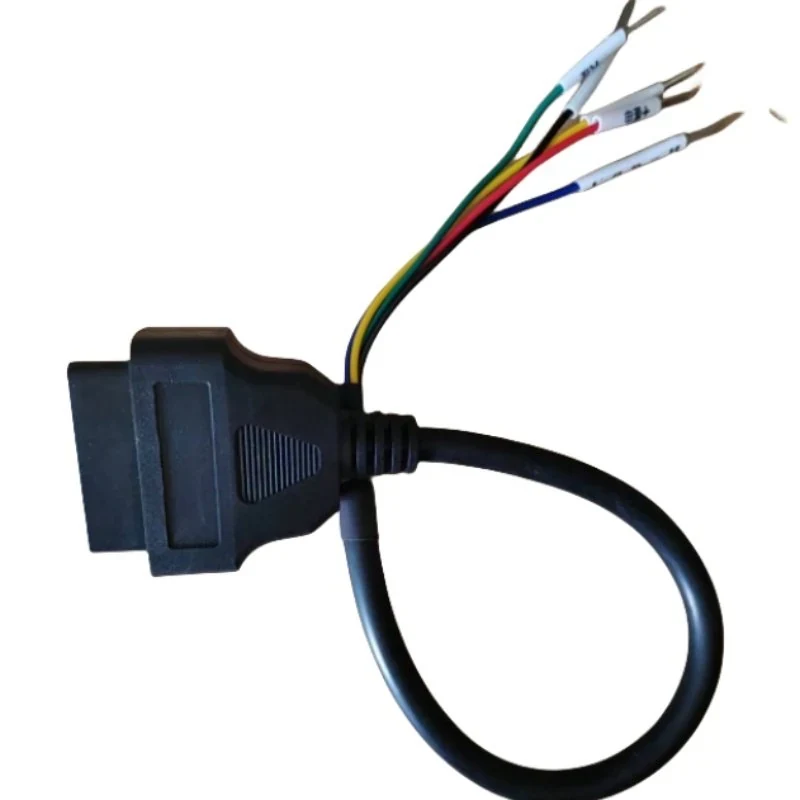

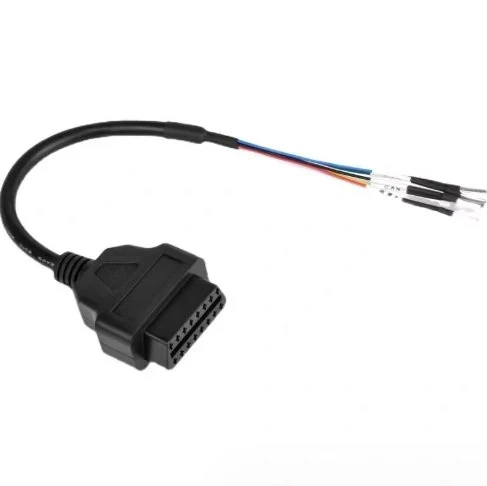

OBD 16P to 5PIN Cable L=400mm - Diagnostic Interface Wire

Part Number: QCZJ08-OBD0055

Product Introduction

The OBD 16P to 5PIN cable is a specialized diagnostic interface wire harness designed to bridge the connection between standard OBD-II diagnostic equipment and specific vehicle ports or test points. Measuring 400mm in length, this cable facilitates quick and reliable data exchange for automotive engineers, mechanics, and procurement specialists who require precise connectivity for vehicle diagnostics and system testing.

Constructed with durable materials suitable for industrial and automotive environments, this cable ensures stable signal transmission between the 16-pin OBD connector and the 5-pin interface. The fixed 400mm length provides optimal reach for bench testing or under-hood diagnostics without excess slack. While specific electrical ratings are not listed, the build quality supports standard diagnostic current and voltage requirements, ensuring compatibility with a wide range of scanning tools and interface adapters.

We support OEM and ODM projects for custom diagnostic cables. To receive an accurate quotation, please provide your specific connector types, required cable length, wire gauge preferences, and any environmental or electrical specifications. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Contact us to confirm production lead time for your custom order.

Key Features

• Connector Configuration: Features a robust 16-pin OBD male connector on one end and a 5-pin connector on the other, ensuring secure mating with diagnostic tools and vehicle interfaces.
• Optimal Length: The 400mm cable length offers a balanced reach for diagnostic setups, reducing clutter while providing sufficient flexibility for various testing scenarios.
• Durable Construction: Built with high-quality materials to withstand the rigors of automotive workshops and industrial testing environments, ensuring long-term reliability.
• Diagnostic Compatibility: Designed to support standard OBD-II communication protocols, making it suitable for a wide range of vehicle diagnostic and troubleshooting applications.
• Customization Options: Available for OEM and ODM requirements, allowing buyers to specify connector types, lengths, and wire specifications to match unique system needs.
• Quality Assurance: Manufactured in a facility certified to ISO 9001 standards and audited by TÜV Rheinland, ensuring consistent quality and material compliance.
