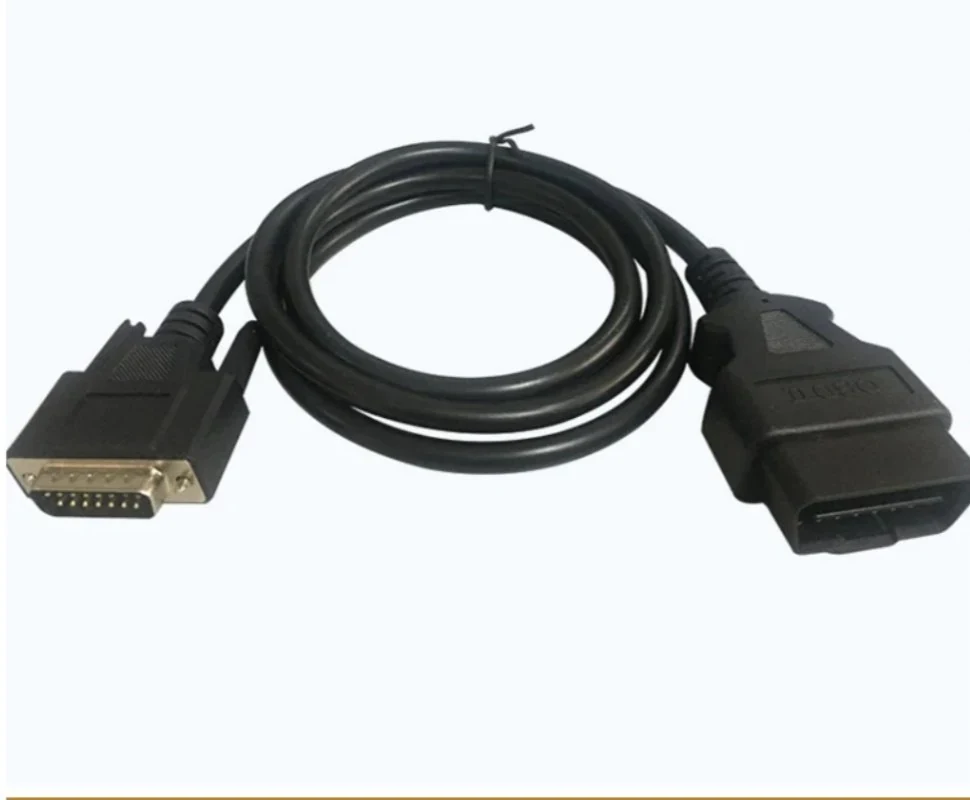

OBD 16 PIN to DB 15PIN cable 2m length diagnostic adapter QCZJ08-OBD0054

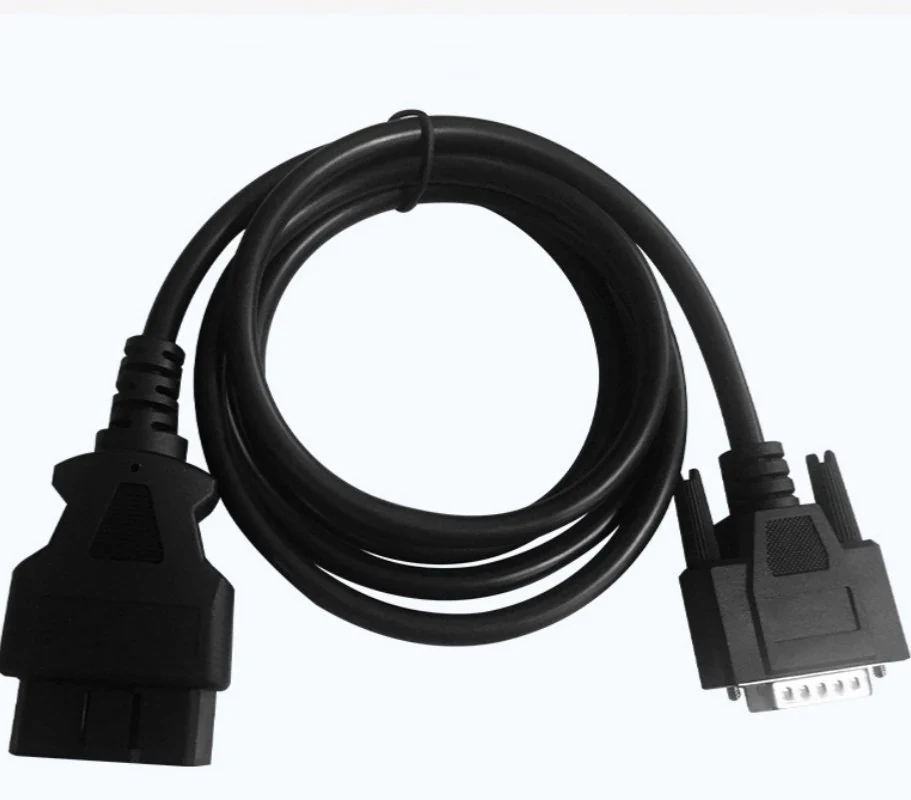

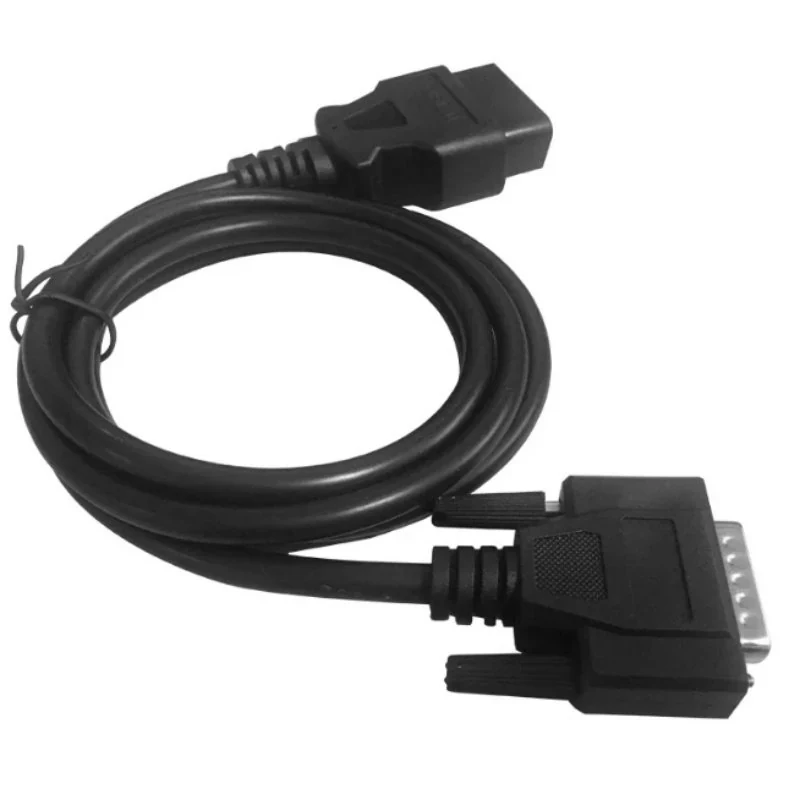

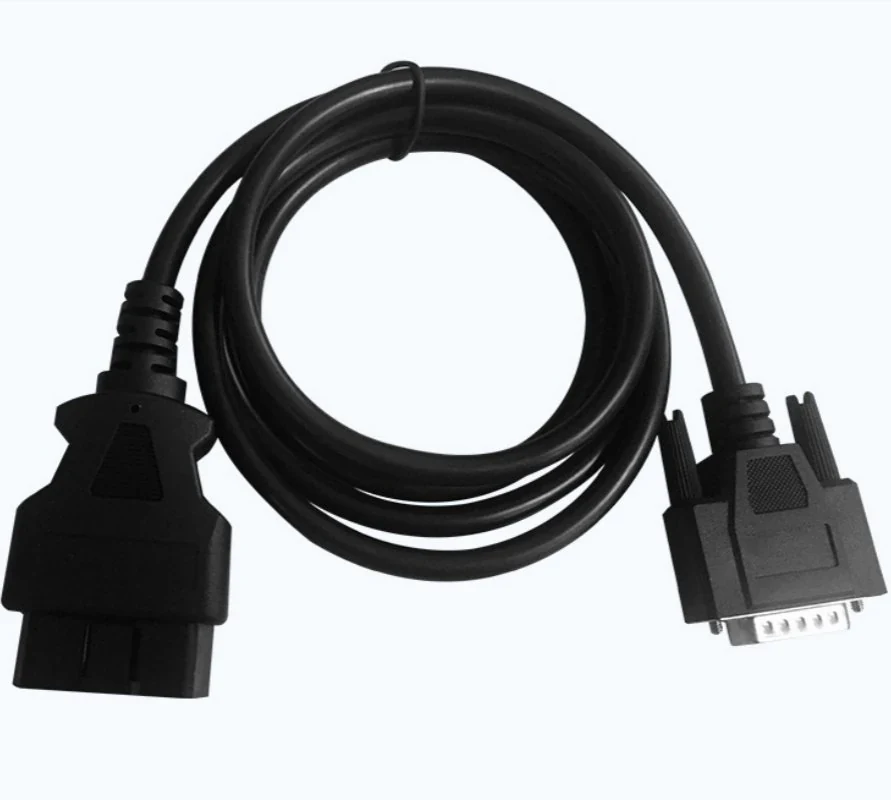

OBD 16 PIN to DB 15PIN Cable L=2m | QCZJ08-OBD0054, part QCZJ08-OBD0054 - detail view 2

OBD 16 PIN to DB 15PIN Cable L=2m | QCZJ08-OBD0054

This 2-meter OBD 16 PIN to DB 15PIN cable facilitates diagnostic connections for automotive and industrial applications.

Model No.: QCZJ08-OBD0054
Applicable Brands: QCserver
Pin Count: 16 PIN (OBD) to 15 PIN (DB)
Cable Length: 2m
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM services to tailor cable length, connector types, and pin configurations to your specific requirements. Please provide detailed specifications or mating part information for accurate customization quotes.

Quality & Testing

RoHS compliance verification (material level)

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the exact length of this OBD to DB15 cable?
A: The cable length is fixed at 2 meters. Custom lengths are available through our OEM/ODM service.

Q: Is this cable compatible with all OBD2 vehicles?
A: This cable connects an OBD 16-pin port to a DB15 connector. Compatibility depends on the specific diagnostic tool or equipment interface requirements, not just the vehicle OBD port.

Q: What is the minimum order quantity for this product?
A: The minimum order quantity is 500 units.

Part Number: QCZJ08-OBD0054

Product Introduction

This product is a specialized OBD 16 PIN to DB 15PIN cable, designed to bridge diagnostic interfaces between OBD ports and DB15 connectors. It is typically specified by automotive technicians, industrial equipment integrators, and procurement buyers requiring reliable signal transmission for vehicle diagnostics or machinery monitoring systems.

The cable features a fixed length of 2 meters, providing adequate reach for workshop environments without excessive slack. It connects a standard OBD 16-pin interface to a DB15 connector, ensuring secure mating for diagnostic tools. The construction utilizes RoHS-compliant raw materials, with supplier SGS RoHS test reports available for the wire materials, ensuring safety and regulatory compliance for electronic assemblies.

We support OEM/ODM customization for specific pinouts, lengths, and connector configurations. For an accurate quotation, please provide your target application, required cable length, and any specific environmental or electrical requirements. Our facility operates under an ISO 9001-certified quality management system and has been audited by TÜV Rheinland, ensuring consistent manufacturing standards for all custom orders.

Key Features

Connector Configuration: Features a 16-pin OBD connector on one end and a 15-pin DB connector on the other, enabling specific diagnostic interface connections.
Cable Length: Fixed 2-meter length provides optimal reach for workshop diagnostics and industrial panel mounting without signal degradation.
Material Compliance: Constructed with RoHS-compliant raw materials, supported by supplier SGS RoHS test reports for applicable wire components.
Quality Management: Manufactured in a facility certified to ISO 9001 standards and audited by TÜV Rheinland for process reliability.
OEM/ODM Support: Available for custom pinouts, lengths, and connector types to meet specific engineering and integration requirements.
Diagnostic Utility: Designed for reliable data transmission in automotive and industrial diagnostic applications, supporting various interface protocols.
