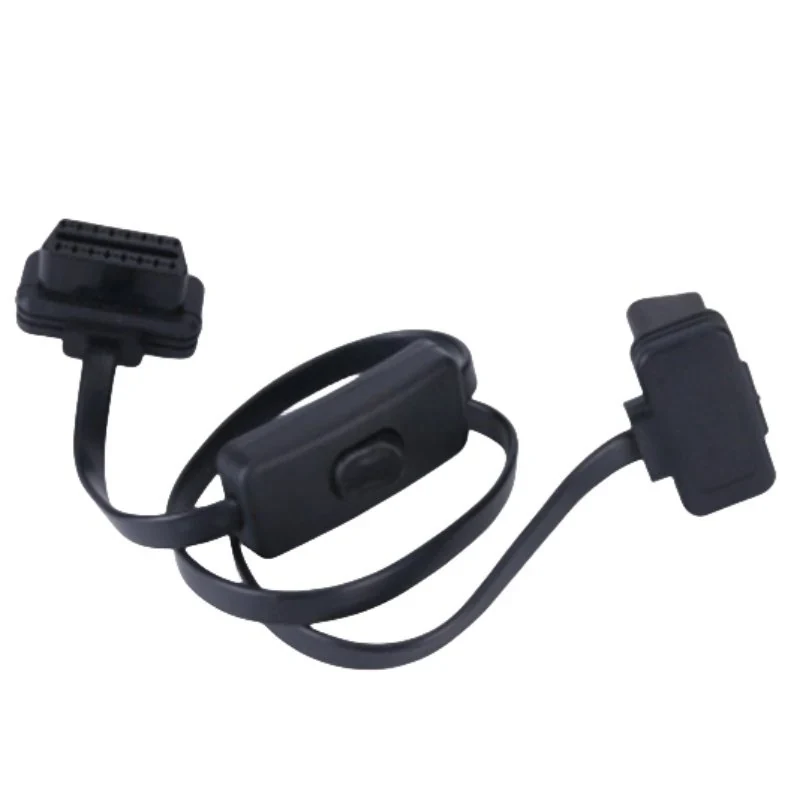

OBD 16P to OBD 16P Extension Cable with Switch, 2m

2m OBD 16P to OBD 16P extension cable with switch for extended diagnostic access.

Model No.: QCZJ08-OBD0056
Applicable Brands: QCconnector
Pin Count: 16
Cable Length: 2m
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer full OEM and ODM support for this extension cable. Buyers can specify custom cable lengths, switch types, and connector housing materials to fit specific application requirements. Please provide detailed technical drawings or specifications for accurate quoting.

Quality & Testing

Visual Inspection Continuity Test Insulation Resistance Test RoHS Compliance Verification (Raw Materials)

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: Is this cable compatible with all OBD-II vehicles?
A: It fits standard 16-pin OBD-II ports. Verify your vehicle's port type before purchase.

Q: Can I customize the cable length?
A: Yes, OEM/ODM services are available. Specify your required length in your inquiry.

Q: What is the minimum order quantity?
A: The MOQ is 500 pcs. Contact us for bulk pricing details.

Part Number: QCZJ08-OBD0056

Product Introduction

The OBD 16P to OBD 16P Extension Cable with Switch is a specialized diagnostic accessory designed to extend the reach of standard OBD-II connectors. It allows technicians and procurement specialists to access vehicle diagnostic ports in confined or obstructed engine bays, ensuring reliable communication with the ECU without strain on the original connector interface.

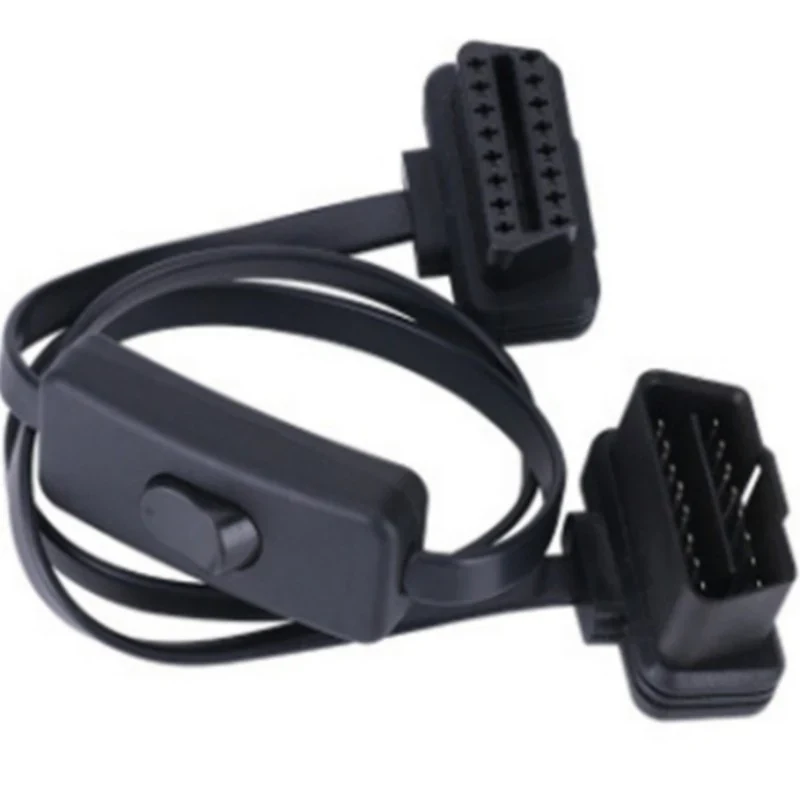

This assembly features a robust 16-pin male-to-female configuration with an integrated inline switch for power control during connection. The 2-meter length provides necessary flexibility for workshop environments. Constructed with high-grade, RoHS-compliant raw materials, the cable ensures durability against vibration and temperature fluctuations common in automotive applications. The switch mechanism offers operational convenience, allowing users to isolate the diagnostic tool from the vehicle's electrical system when not in use.

We support OEM and ODM projects for custom diagnostic harnesses. To receive an accurate quotation, please provide your required cable length, switch type preference, and any specific connector housing material requirements. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Contact us to discuss your specific engineering requirements and obtain a competitive quote for your project.

Key Features

Integrated Switch: Includes an inline power switch for convenient control of the diagnostic connection, enhancing safety and ease of use during vehicle servicing.

Extended Reach: 2-meter length provides ample flexibility to access OBD-II ports in tight or hard-to-reach locations within the vehicle chassis.

16-Pin Interface: Standard 16P male-to-female connector design ensures compatibility with standard OBD-II diagnostic tools and vehicle ports.

Durable Construction: Built with high-quality, RoHS-compliant materials to withstand automotive environmental stresses, including vibration and temperature variations.

Customization Available: Supports OEM and ODM modifications for cable length, connector housing, and switch specifications to meet specific engineering needs.

Quality Assurance: Manufactured in a facility audited by TÜV Rheinland under an ISO 9001-certified quality management system, ensuring consistent production standards.
