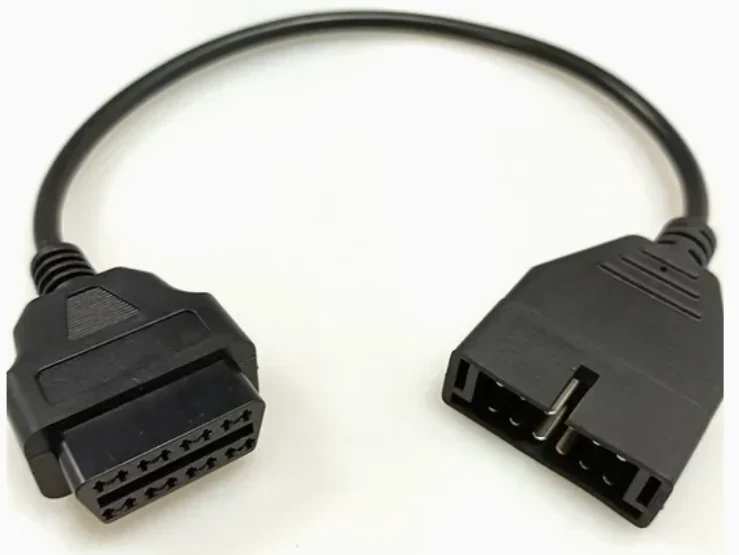

300mm OBD1 to OBD2 universal adapter cable with 12-pin to 16-pin connectors

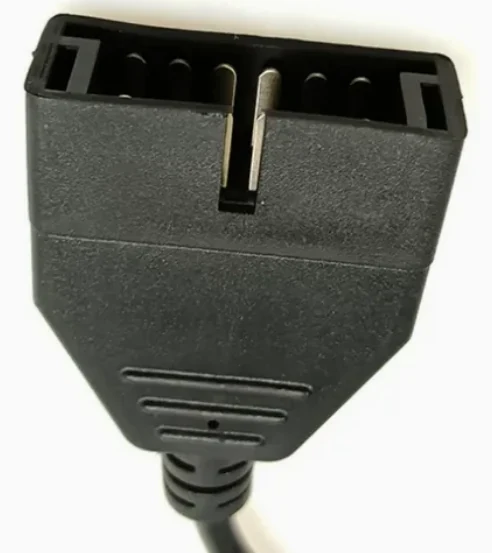

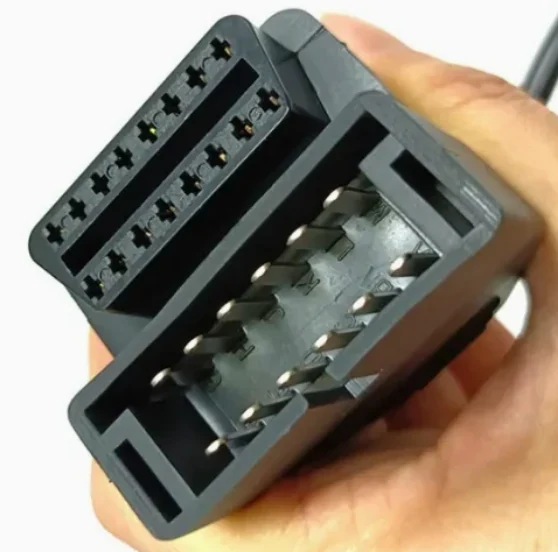

OBD1 to OBD2 Universal Cable 300mm - 12-Pin to 16-Pin, part QCZJ08-OBD0064 - detail view 2

OBD1 to OBD2 Universal Cable 300mm - 12-Pin to 16-Pin

300mm OBD1 to OBD2 universal cable connecting 12-pin to 16-pin automotive diagnostic interfaces.

Model No.: QCZJ08-OBD0064
Applicable Brands: QCconnector
Pin Count: 12-pin to 16-pin
Cable Length: 300mm
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM and ODM services for this OBD adapter cable, allowing for adjustments in connector types, cable length, and housing materials to suit specific engineering requirements. Buyers should provide detailed specifications or mating part information to ensure the custom harness meets their exact diagnostic interface needs.

Quality & Testing

Continuity testing Insulation resistance testing RoHS compliance verification (raw materials)

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the primary function of this cable?
A: It connects 12-pin OBD1 diagnostic ports to 16-pin OBD2 ports, enabling vehicle diagnostics across different automotive eras.

Q: Can the cable length be customized?
A: Yes, we support OEM/ODM services, so the 300mm length can be adjusted based on your specific engineering requirements.

Q: What is the minimum order quantity?
A: The MOQ is 500 units. For samples, please request a quotation as finished-product samples are paid.

Part Number: QCZJ08-OBD0064

Product Introduction

This OBD1 to OBD2 universal cable is an essential diagnostic interface tool designed to bridge legacy and modern automotive systems. It allows technicians to connect 12-pin OBD1 connectors to 16-pin OBD2 ports, facilitating vehicle diagnostics, ECU programming, and system troubleshooting across various eras of automotive engineering.

The cable features a precise 300mm length to provide adequate reach without excess slack that could interfere with workspace management. Constructed with durable materials suitable for industrial environments, it ensures reliable signal transmission during critical diagnostic procedures. The robust connector housing protects the internal wiring from mechanical stress, ensuring longevity in high-use workshop settings.

We support OEM and ODM requirements for this adapter harness, allowing for custom configurations to meet specific client needs. To obtain an accurate quotation, please provide your required connector types, cable length preferences, and any specific material or performance standards. Our factory operates under an ISO 9001-certified quality management system, is audited by TÜV Rheinland, and uses RoHS-compliant raw materials with available supplier SGS test reports. Contact us to discuss your specific adaptation requirements.

Key Features

Universal Compatibility: Bridges the gap between legacy 12-pin OBD1 systems and standard 16-pin OBD2 ports for comprehensive diagnostic coverage.
Precise Dimensions: Fixed 300mm length provides optimal reach for bench testing and under-hood diagnostics without clutter.
Durable Construction: Built with high-quality materials to withstand repeated plugging and unplugging in professional automotive environments.
Reliable Connectivity: Ensures stable signal transmission for accurate data reading and ECU communication during vehicle servicing.
OEM/ODM Support: Available for customization to meet specific connector pinouts or length requirements for unique fleet or industrial applications.
Quality Assured: Manufactured in a TÜV Rheinland audited facility under ISO 9001 standards, ensuring consistent product reliability.
