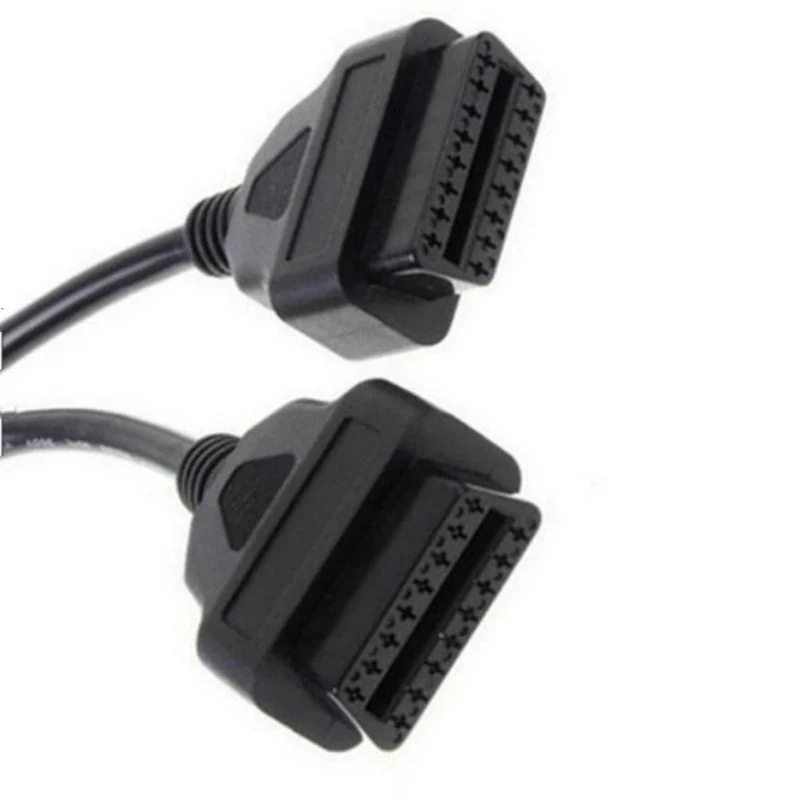

OBD 16 Pin Y Cable diagnostic adapter harness for automotive use

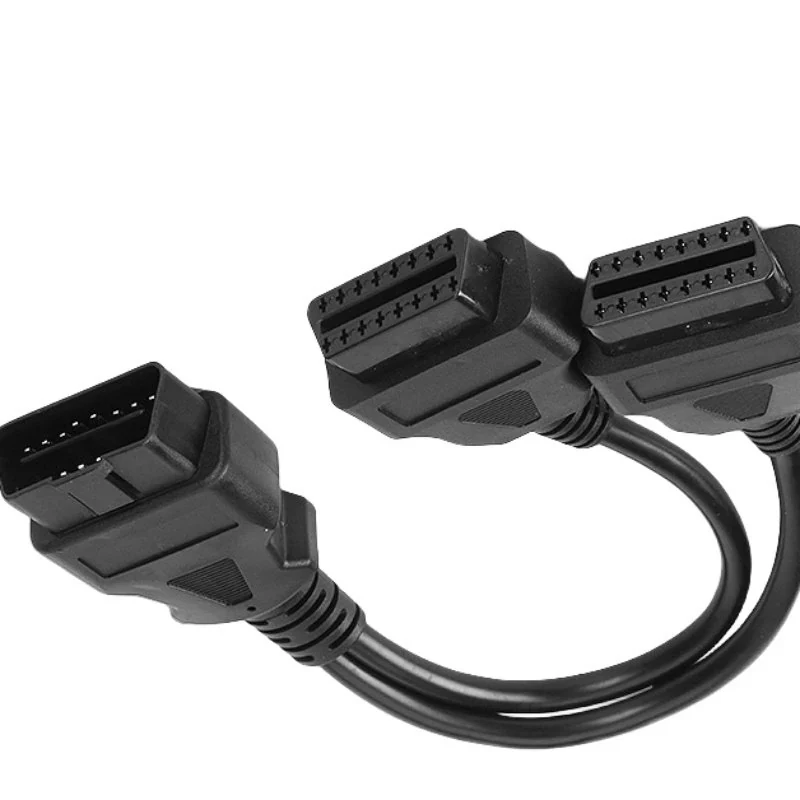

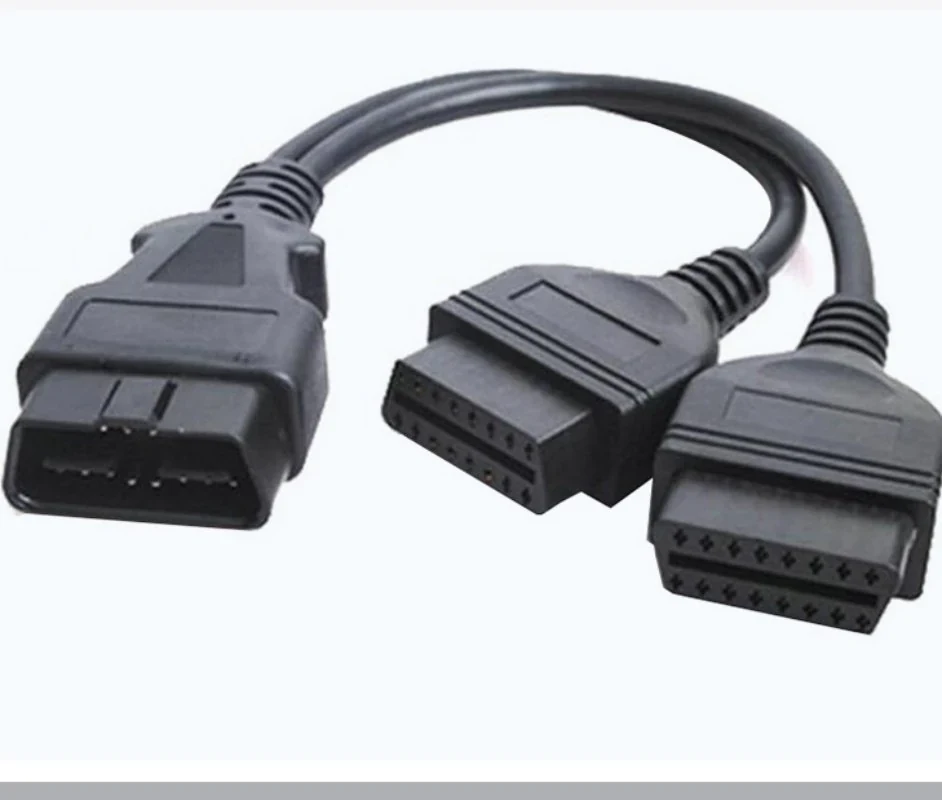

OBD 16 Pin Y Cable (QCZJ08-OBD0058) | Diagnostic Adapter, part QCZJ08-OBD0058 - detail view 2

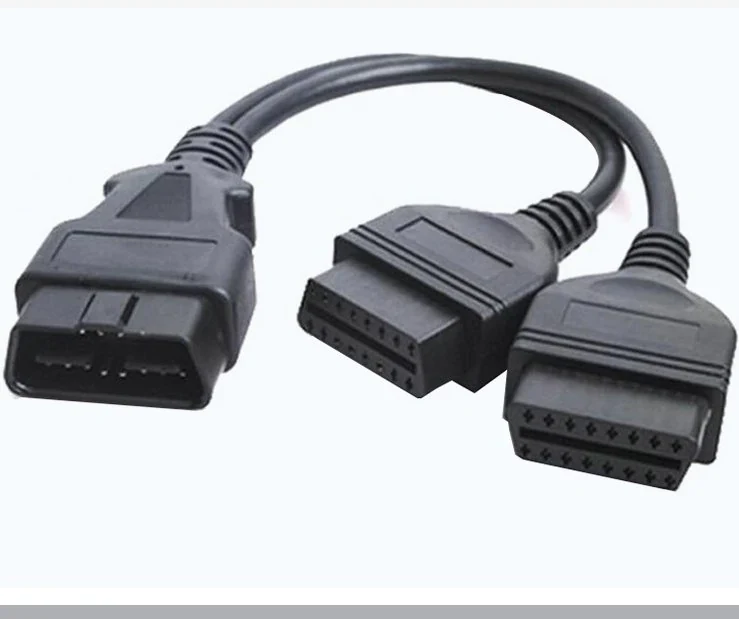

OBD 16 Pin Y Cable (QCZJ08-OBD0058) | Diagnostic Adapter, part QCZJ08-OBD0058 - detail view 3

OBD 16 Pin Y Cable (QCZJ08-OBD0058) | Diagnostic Adapter

The OBD 16 Pin Y Cable (QCZJ08-OBD0058) is a diagnostic adapter harness designed for reliable vehicle interface connections.

Model No.: QCZJ08-OBD0058
Applicable Brands: QCconnector
Pin Count: 16
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We support OEM and ODM customization for the OBD 16 Pin Y Cable, allowing for tailored cable lengths, connector types, and material specifications. Buyers should provide detailed technical requirements to ensure the final product meets their specific application needs.

Quality & Testing

RoHS compliance verification for raw materials

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the primary function of this cable?
A: It serves as a diagnostic adapter harness, connecting diagnostic tools to vehicle OBD interfaces for service and testing.

Q: Is this product customizable?
A: Yes, OEM and ODM customization is available. Please provide your specific technical requirements for a tailored solution.

Q: What are the sample and MOQ terms?
A: The Minimum Order Quantity is 500 units. Samples are paid; please request a sample quotation for details.

Part Number: QCZJ08-OBD0058

Product Introduction

The OBD 16 Pin Y Cable is a specialized diagnostic adapter harness engineered for automotive service and testing environments. It provides a robust physical interface for connecting diagnostic tools to vehicle onboard systems, ensuring signal integrity during maintenance and troubleshooting procedures.

This harness features a 16-pin connector configuration, optimized for standard OBD interfaces. The construction utilizes durable materials to withstand the mechanical stresses of frequent plugging and unplugging in workshop settings. While specific wire gauges and electrical ratings are not disclosed, the assembly is built to meet general industrial standards for connectivity reliability and environmental resistance.

We support OEM and ODM customization for this product line. To receive an accurate quotation, please provide your specific requirements regarding cable length, connector type, and any unique environmental or electrical constraints. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your technical specifications to proceed.

Key Features

16-Pin Interface: Designed with a standard 16-pin connector to ensure compatibility with common OBD diagnostic protocols and tools.
Diagnostic Utility: Serves as a critical link for automotive technicians, facilitating accurate data transmission during vehicle servicing.
Durable Construction: Built with high-quality materials to resist wear and tear, ensuring longevity in professional workshop environments.
RoHS Compliant Materials: Manufactured using raw materials that are RoHS compliant, supporting environmental safety standards for automotive components.
Quality Assured: Produced within a facility certified to ISO 9001 standards and audited by TÜV Rheinland, ensuring consistent manufacturing quality.
Customization Support: Available for OEM and ODM projects, allowing buyers to tailor specifications to specific diagnostic or industrial needs.
