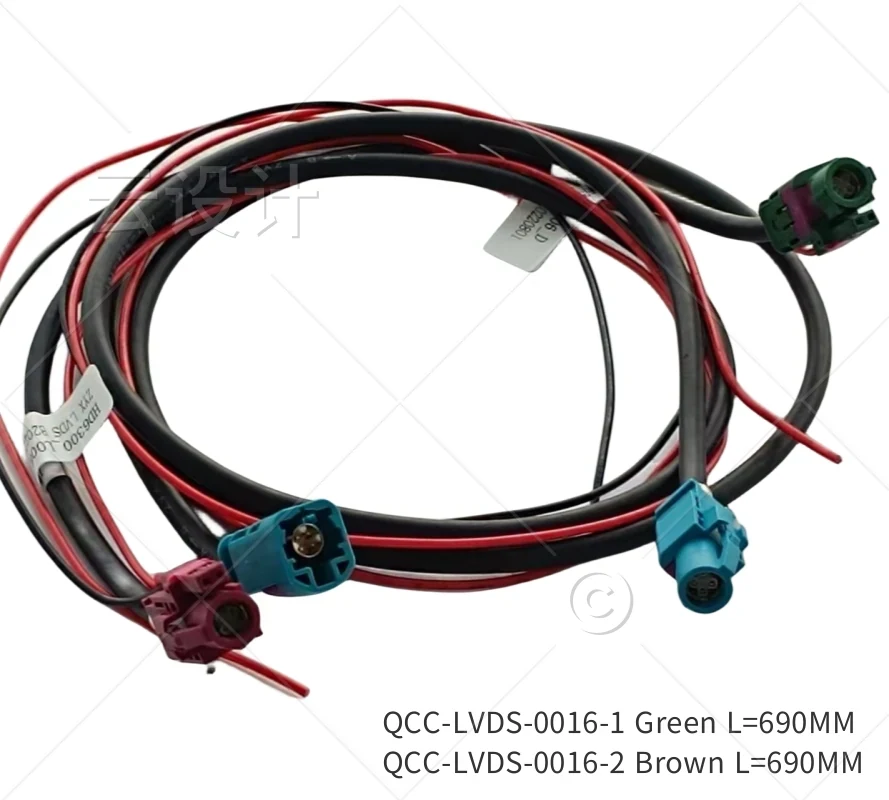

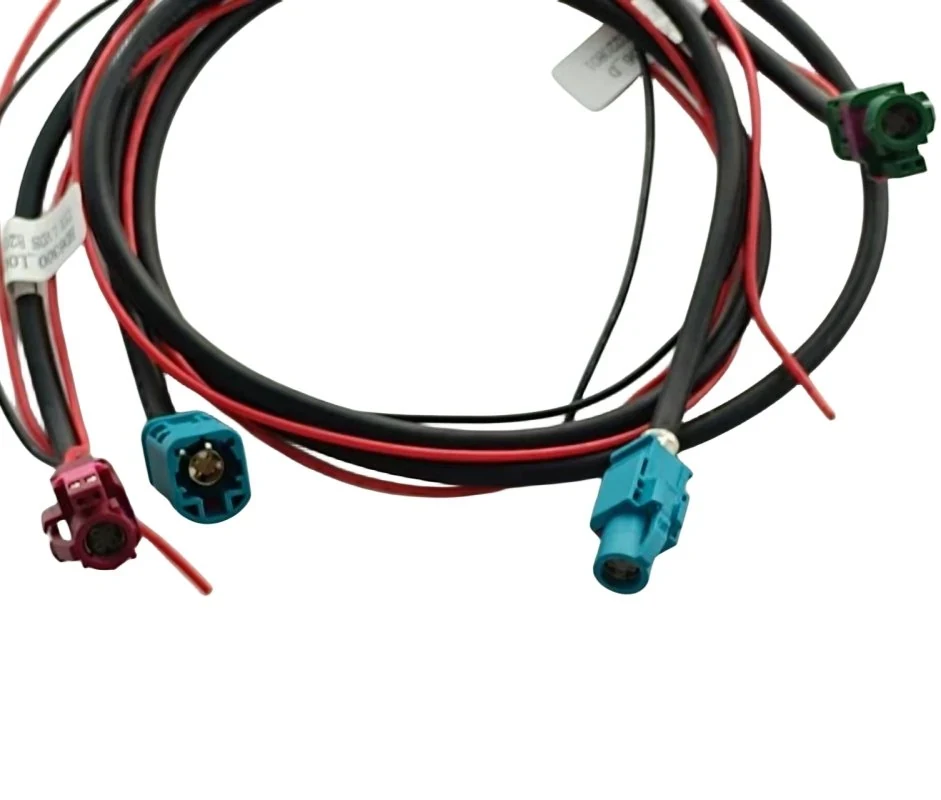

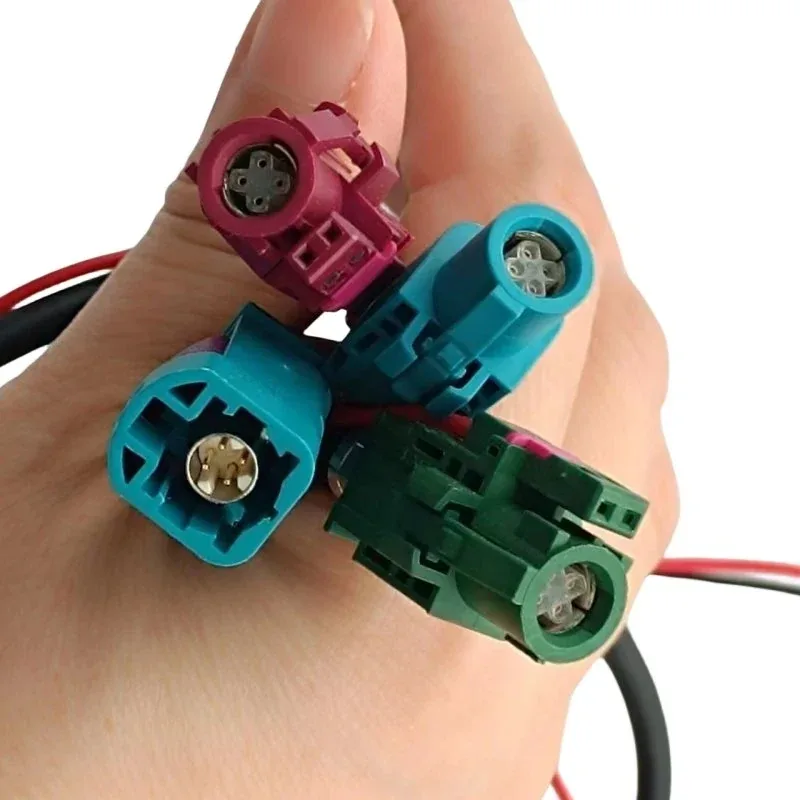

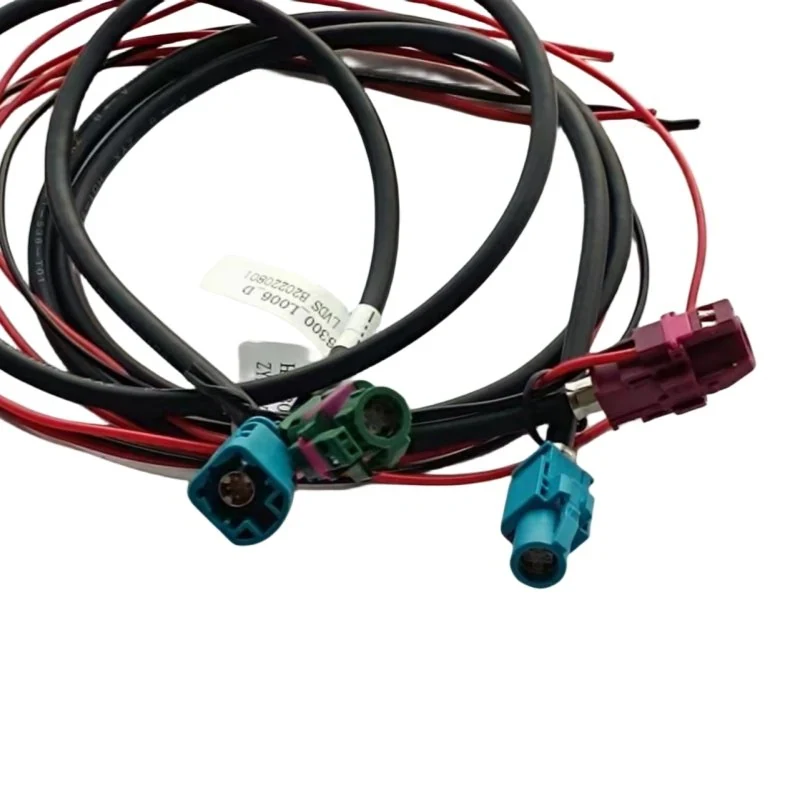

LVDS HSD Cable L=690mm for Hongqi H9 2020-2023 12.3-inch

LVDS HSD Cable L=690mm for Hongqi H9 2020-2023 12.3-inch display.

Model No.: QCC-LVDS-0016
Applicable Brands: Hongqi
Vehicle Models: H9
Model Years: 2020-2023
Cable Length: L=690MM
Voltage / Current: 12~24V
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM and ODM services for this LVDS HSD cable. Buyers can provide specific connector types, pin configurations, or length requirements for custom manufacturing. Please contact our sales team with your detailed technical specifications for a tailored solution.

Quality & Testing

RoHS Compliance Testing (Raw Materials) ISO 9001 Quality Management Audit

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What vehicle models is this cable compatible with?
A: This cable is designed for the Hongqi H9, specifically for the 2020-2023 model years equipped with a 12.3-inch display.

Q: Is this product RoHS certified?
A: The raw materials used in this assembly are RoHS compliant, and supplier SGS RoHS test reports are available for the applicable wire materials. The finished assembly is not individually RoHS certified.

Q: What is the minimum order quantity?
A: The minimum order quantity (MOQ) for this product is 500 units.

Part Number: QCC-LVDS-0016

Product Introduction

This LVDS HSD Cable, specifically engineered for the Hongqi H9 (2020-2023) with a 12.3-inch display, serves as a critical link in the vehicle's infotainment system. It ensures high-speed, low-latency video signal transmission between the head unit and the digital instrument cluster or central touchscreen. Procurement specialists and automotive engineers specify this component for its precise dimensions and reliable connectivity in modern automotive electronics.

The cable features a standardized length of 690mm, ensuring exact fitment without excess slack or tension in the Hongqi H9's dashboard assembly. Constructed with high-quality materials compliant with RoHS standards, it offers durability against automotive environmental stressors. While specific connector pin counts and wire gauges are not explicitly listed for this SKU, the assembly is built using verified raw materials with supplier SGS RoHS test reports available for applicable wire materials, ensuring signal integrity and safety.

We support OEM and ODM requirements for this specific interface. To obtain an accurate quotation, please provide your exact mating connector details or reference the Article No. QCC-LVDS-0016. Our manufacturing facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. We guarantee that all raw materials are RoHS compliant. Please contact us with your technical requirements to proceed with your order.

Key Features

Precise Fitment: Designed specifically for Hongqi H9 models from 2020 to 2023, ensuring seamless integration with the 12.3-inch display system.

Optimal Length: Fixed cable length of 690mm provides the exact reach required for the vehicle's internal wiring harness layout.

Signal Integrity: Utilizes LVDS/HSD technology to deliver high-definition video signals with minimal interference for clear display output.

RoHS Compliant Materials: Manufactured using raw materials that are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials.

Quality Assurance: Produced in a facility certified to ISO 9001 standards and audited by TÜV Rheinland, ensuring consistent manufacturing quality.

OEM/ODM Support: Available for customization to meet specific OEM or ODM engineering requirements upon request.
