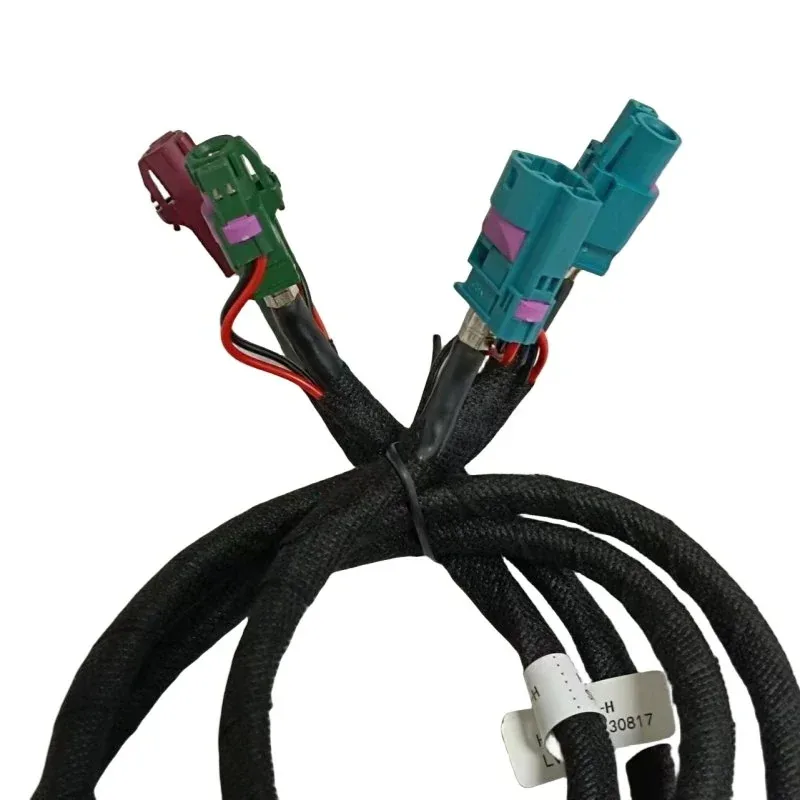

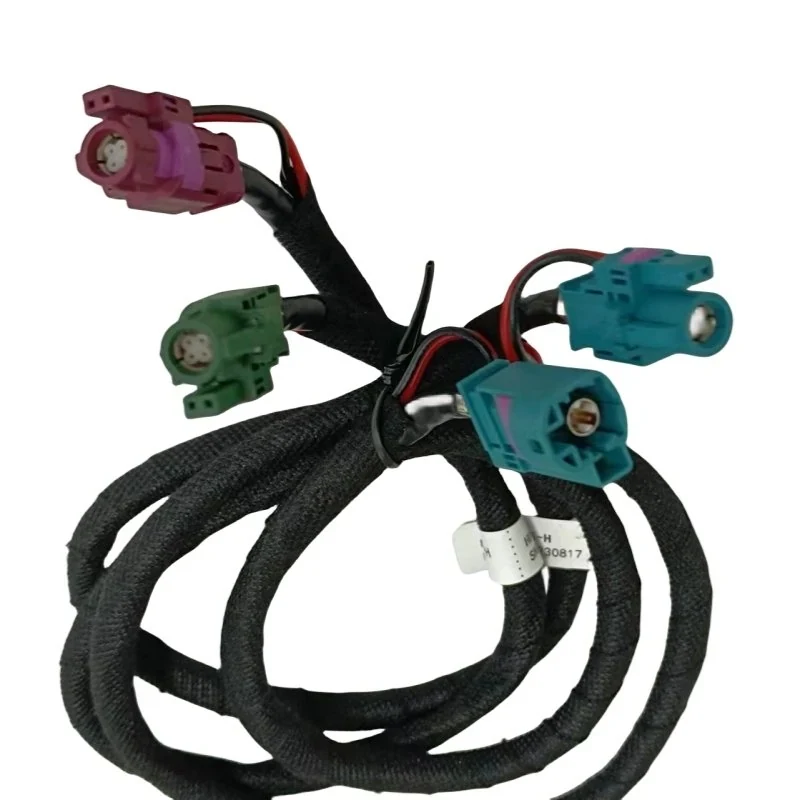

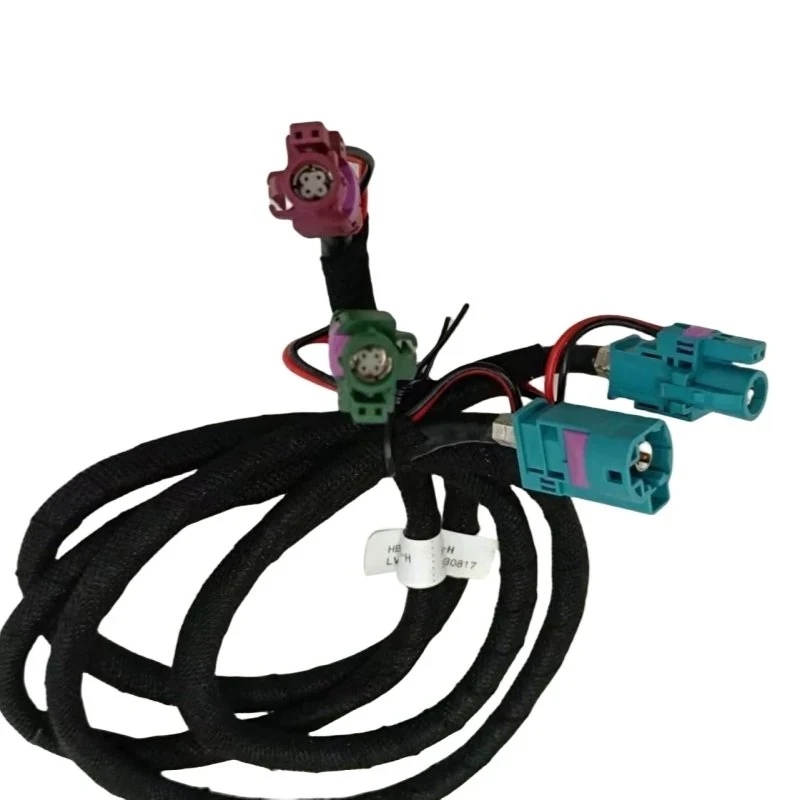

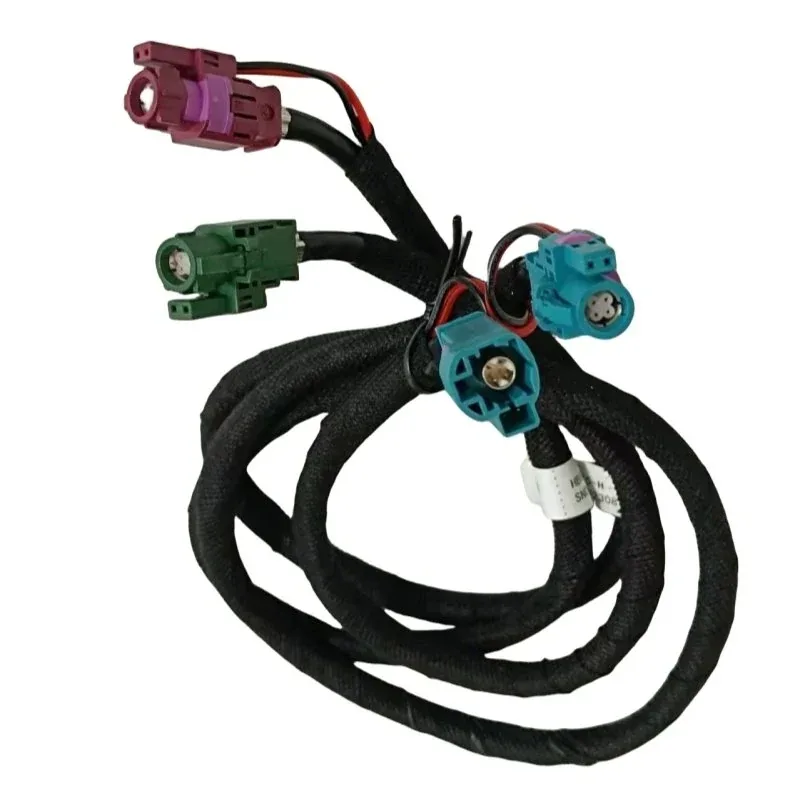

LVDS HSD Cable QCC-LVDS-0020 for Ford/Lincoln 27" Screen
QCC-LVDS-0020 LVDS HSD cable for Ford/Lincoln 21+ 27" screens; D/L=650mm, H/L=780mm.
- Model No.
- QCC-LVDS-0020
- Applicable Brands
- Ford, Lincoln
- Vehicle Models
- Ford EVOS, Ford Mondeo, Ford Edge L, Ford Explorer, Lincoln Z, Lincoln Corsair
- Model Years
- 21+, 22+
- Cable Length
- D L=650MM H L=780MM
- Voltage / Current
- 12~24V
- MOQ
- 500
- Sample
- Paid samples; request a sample quotation.
- Lead Time
- Made to order. Contact us to confirm production lead time.
Customization Options
We support OEM/ODM customization for LVDS HSD cables, including adjustments to cable length, connector type, and shielding requirements. Please provide your specific technical drawings or mating part numbers for tailored solutions. Our engineering team will verify compatibility and provide a quotation based on your exact specifications.
Quality & Testing
Visual Inspection Continuity Test Insulation Resistance Test RoHS Compliance Verification (Raw Materials)
Standards & Compliance
QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.
Frequently Asked Questions
A: It fits Ford EVOS, Mondeo, Edge L, Explorer (22+), and Lincoln Z, Corsair (21+/22+) with 27-inch screen series.
Q: What are the standard cable lengths available?
A: The standard specifications are D L=650MM and H L=780MM. Custom lengths are available via OEM/ODM.
Q: How can I get a quotation for this part?
A: Please contact us with your required quantity (MOQ 500), specific length, and connector details for a precise quote.
Part Number: QCC-LVDS-0020
Product Introduction
The QCC-LVDS-0020 is a specialized LVDS HSD Cable engineered for high-bandwidth video transmission in modern automotive infotainment systems. It is specifically designed to connect display modules to head units in Ford and Lincoln vehicles equipped with 27-inch screen series from model years 2021 onward. Procurement buyers and automotive engineers specify this component to ensure reliable signal integrity for large-format in-car displays.
This cable assembly features precise dimensional specifications with D L=650MM and H L=780MM, tailored to fit the routing constraints of Ford EVOS, Mondeo, Edge L, Explorer, Lincoln Z, and Corsair models. Constructed with LVDS technology, it supports the high-speed data requirements of 27-inch displays, ensuring minimal signal loss and interference. The design accommodates the specific connector coding and pin configurations required by these OEM platforms, providing a direct fitment solution for replacement or manufacturing needs.
We support OEM/ODM projects for automotive display harnesses. For accurate quotation, please provide your mating connector part numbers, required cable length variations, and specific vehicle VIN or model details. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us with your technical requirements to receive a precise quote for the QCC-LVDS-0020.
Key Features
Product Type: High-performance LVDS HSD Cable designed for automotive display connectivity.
Part Number: QCC-LVDS-0020 ensures precise identification for procurement and inventory management.
Compatibility: Supports Ford and Lincoln 27-inch screen series from 2021 and 2022 models.
Dimensions: Available in D L=650MM and H L=780MM configurations for specific vehicle routing.
Application: Optimized for Ford EVOS, Mondeo, Edge L, Explorer, Lincoln Z, and Corsair.
Quality Assurance: Manufactured in an ISO 9001-certified facility audited by TÜV Rheinland.
