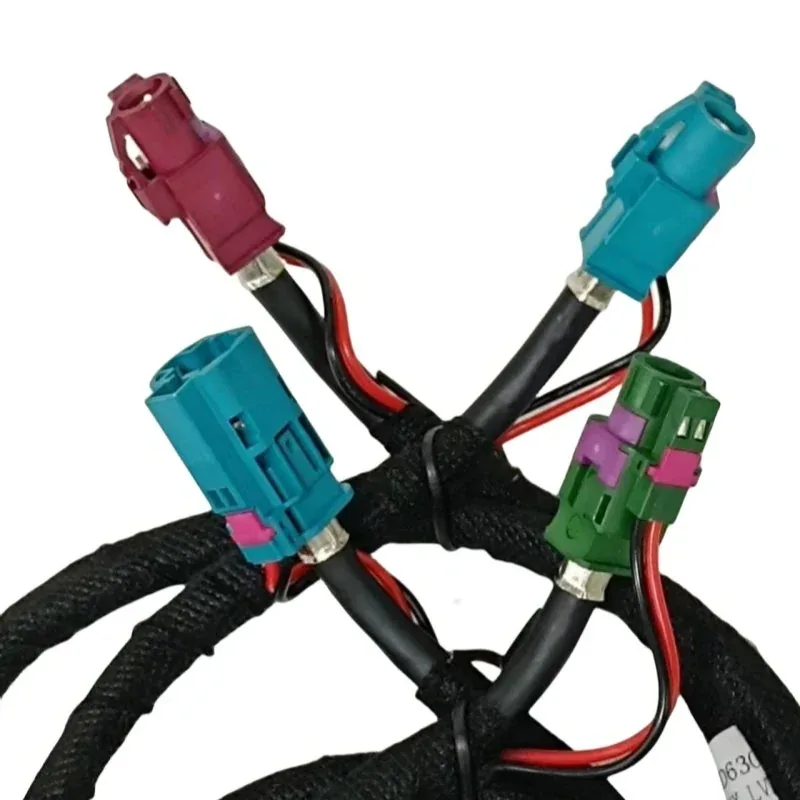

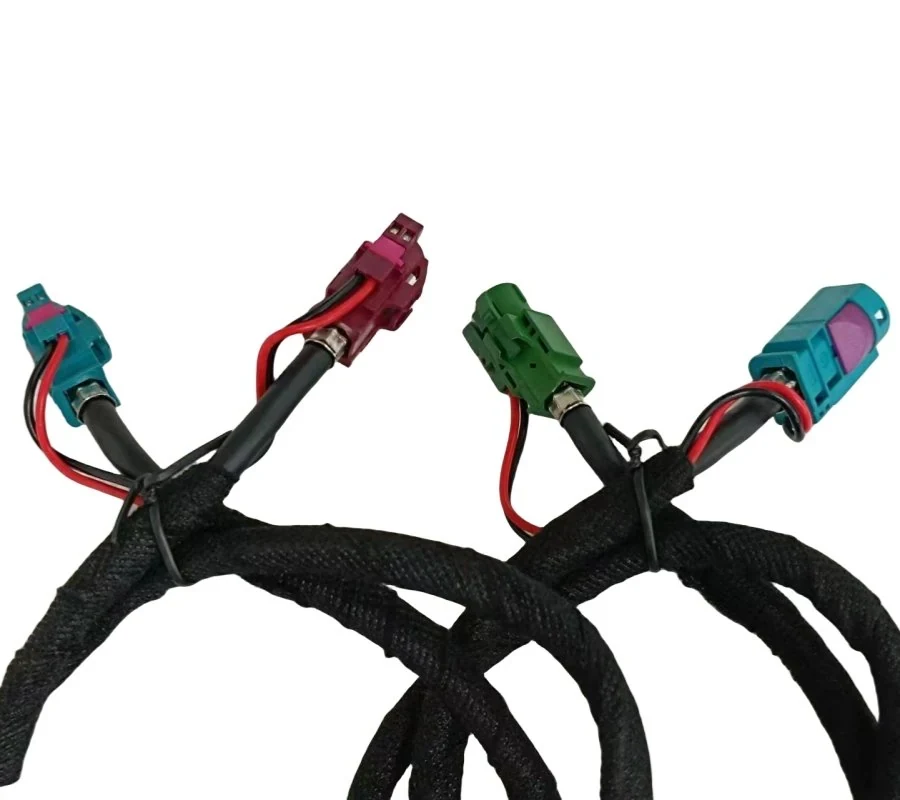

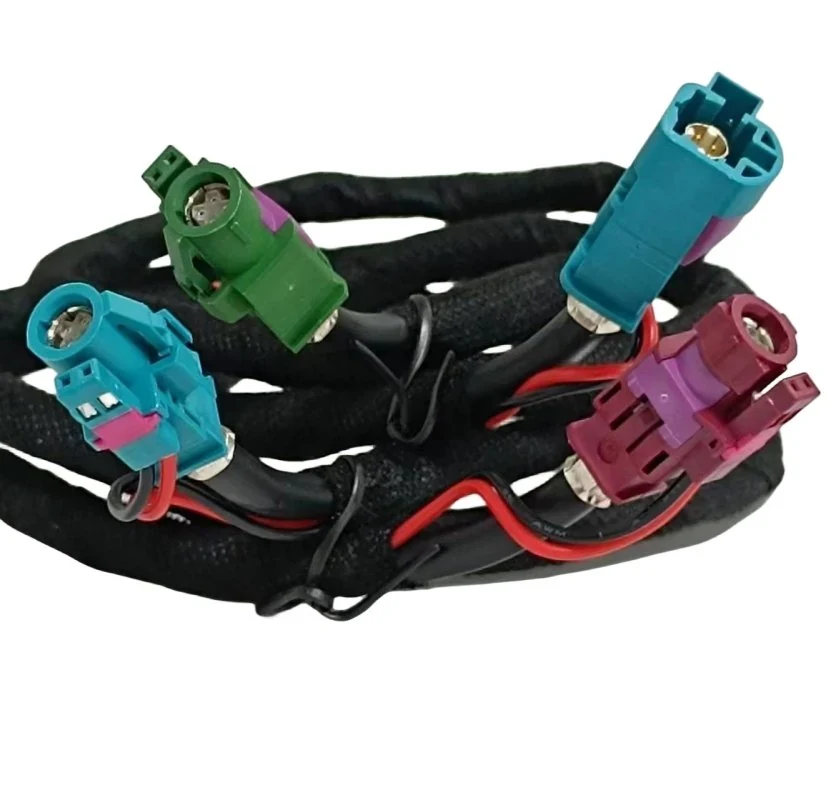

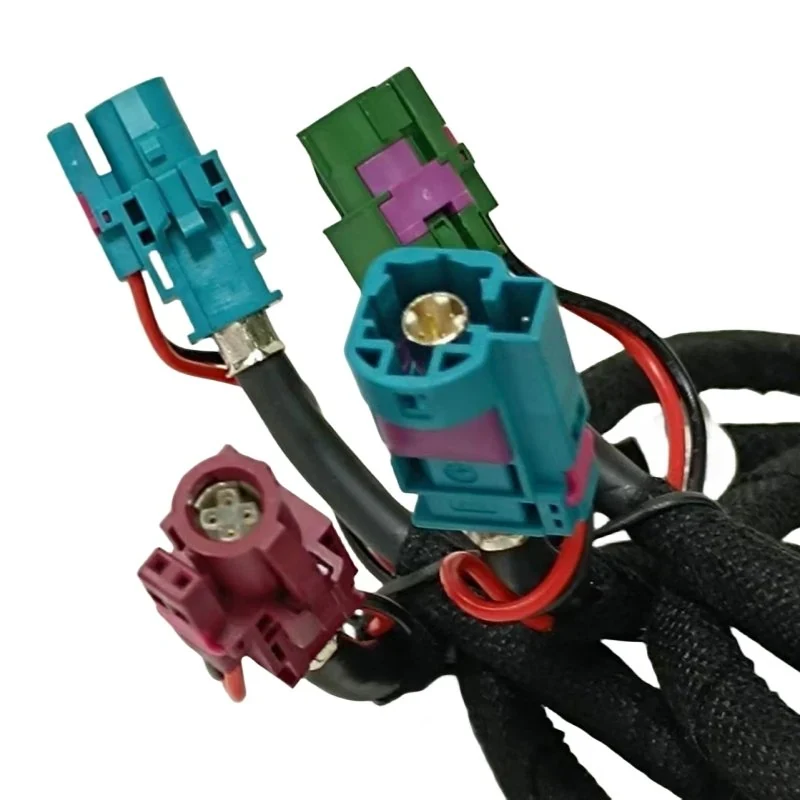

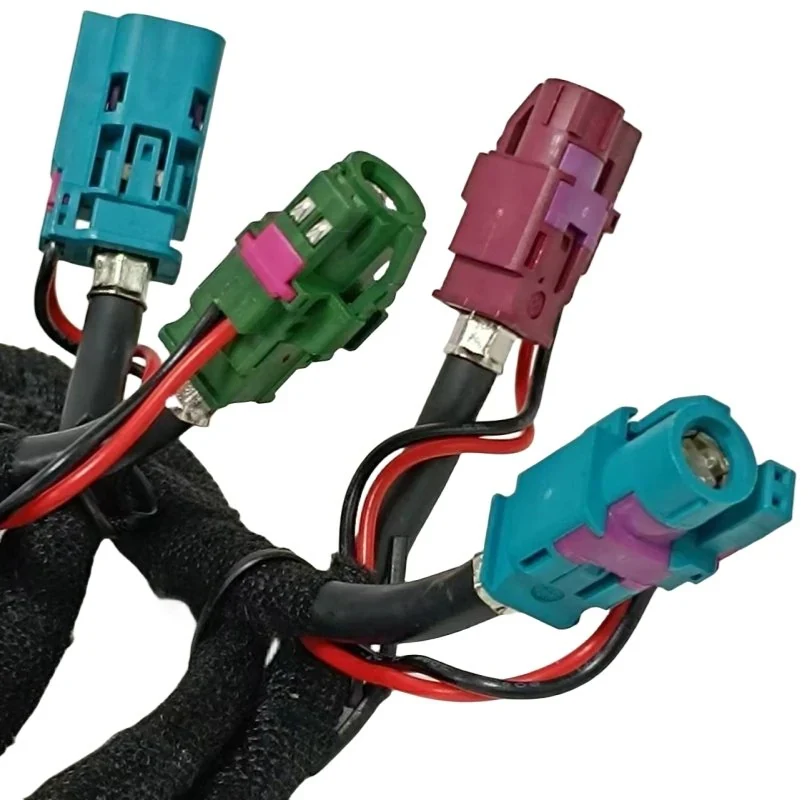

LVDS HSD Cable QCC-LVDS-0008 for Chery Tiggo 5X & Wujié PRO
QCC-LVDS-0008 LVDS HSD Cable for Chery Wujié PRO and Tiggo 5X 10.25-inch manual display systems.
- Model No.
- QCC-LVDS-0008
- Applicable Brands
- Dongfeng
- Vehicle Models
- Chery Wujié PRO, Chery Tiggo 5X
- Model Years
- 2022 August - Present, 2023
- Cable Length
- L=660MM, H=790MM
- Voltage / Current
- 12~24V
- MOQ
- 500
- Sample
- Paid samples; request a sample quotation.
- Lead Time
- Made to order. Contact us to confirm production lead time.
Customization Options
OEM/ODM capabilities are available for this LVDS HSD cable. Buyers can specify custom lengths, connector types, and shielding requirements to meet specific vehicle platform needs. Please provide detailed engineering drawings or mating part numbers for precise customization.
Quality & Testing
RoHS compliance verification for raw materials ISO 9001 quality management process audit
Standards & Compliance
QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.
Frequently Asked Questions
A: This cable is compatible with the Chery Wujié PRO (2023) and Chery Tiggo 5X (August 2022 - Present).
Q: What are the available cable lengths?
A: The standard specifications include L=660MM and H=790MM. Custom lengths are available via OEM/ODM services.
Q: Is this cable suitable for the JAC Ruifeng M3?
A: Yes, it is listed for the JAC 23+ Ruifeng M3 with a 10.25-inch manual display configuration.
Part Number: QCC-LVDS-0008
Product Introduction
The QCC-LVDS-0008 is a specialized LVDS HSD cable designed for automotive infotainment and display applications. It serves as a critical data link for 10.25-inch screen installations, specifically engineered for the Chery Wujié PRO and Chery Tiggo 5X vehicle platforms. This component is typically specified by automotive engineers and procurement buyers looking for precise replacement or upgrade solutions for high-speed video transmission in modern electric and hybrid vehicles.
This cable features specific length configurations (L=660MM and H=790MM) to ensure accurate fitment within the vehicle's dashboard harnessing. It supports the connectivity requirements for Chery models produced from August 2022 onwards, including the 2023 Chery Wujié PRO. The design prioritizes signal integrity for high-definition displays, ensuring reliable performance in the demanding environment of an automotive interior.
We support OEM/ODM requirements for this interface cable. To receive an accurate quotation, please provide your specific vehicle model, year, and any unique connector coding or length requirements not covered by the standard QCC-LVDS-0008 specification. Our facility operates under an ISO 9001-certified quality management system, is factory audited by TÜV Rheinland, and utilizes raw materials that are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us to confirm production lead time for your order.
Key Features
Product Type: LVDS HSD Cable designed for high-speed digital video transmission in automotive infotainment systems.
Compatible Models: Specifically fitted for Chery Wujié PRO and Chery Tiggo 5X with 10.25-inch displays.
Length Specifications: Available in L=660MM and H=790MM variants to match specific dashboard routing requirements.
Application Scope: Supports manual transmission versions of the JAC Ruifeng M3 and Chery models from August 2022.
Material Compliance: Manufactured using RoHS-compliant raw materials, with supplier SGS RoHS test reports available.
Quality Assurance: Produced in a facility audited by TÜV Rheinland under an ISO 9001-certified quality management system.
