Ultra-Thin OBD CAN Adapter Cable | Universal OBD Line

Universal ultra-thin OBD CAN adapter cable designed for diagnostic interface connectivity.

Model No.: QCZJ08-OBD0223
Connector Part No.: PH-4P connector
Pin Count: 4P
Voltage / Current: 12~24V
Weight: 35
Carton Size: 40.0 x 30.0 x 20.0 cm
MOQ: 500
Sample: Paid samples; request a sample quotation.
Lead Time: Made to order. Contact us to confirm production lead time.

Chat on WhatsApp Get a Quote

Drawing & BOM ReviewOEM / ODM SupportProject-Specific TestingNDA Available

Customization Options

We offer OEM/ODM services to tailor cable lengths, connectors, and shielding to your specific engineering drawings or requirements. Please provide detailed specifications for accurate quoting.

Quality & Testing

RoHS compliance verification for raw materials

Standards & Compliance

QCconnector operates an ISO 9001-certified quality management system and has undergone a TÜV Rheinland factory audit.

Frequently Asked Questions

Q: What is the specific pin count and voltage rating for this cable?
A: The general product information does not specify the exact pin count or voltage rating. Please contact us with your specific interface requirements for detailed technical data.

Q: Is this cable compatible with all vehicle brands?
A: This is a universal OBD line designed for standard interfaces. For specific vehicle model compatibility, please provide the target vehicle details for verification.

Q: What is the minimum order quantity and sample policy?
A: The MOQ is 500 PCS. Finished-product samples are paid; please request a sample quotation for testing purposes.

Part Number: QCZJ08-OBD0223

Product Introduction

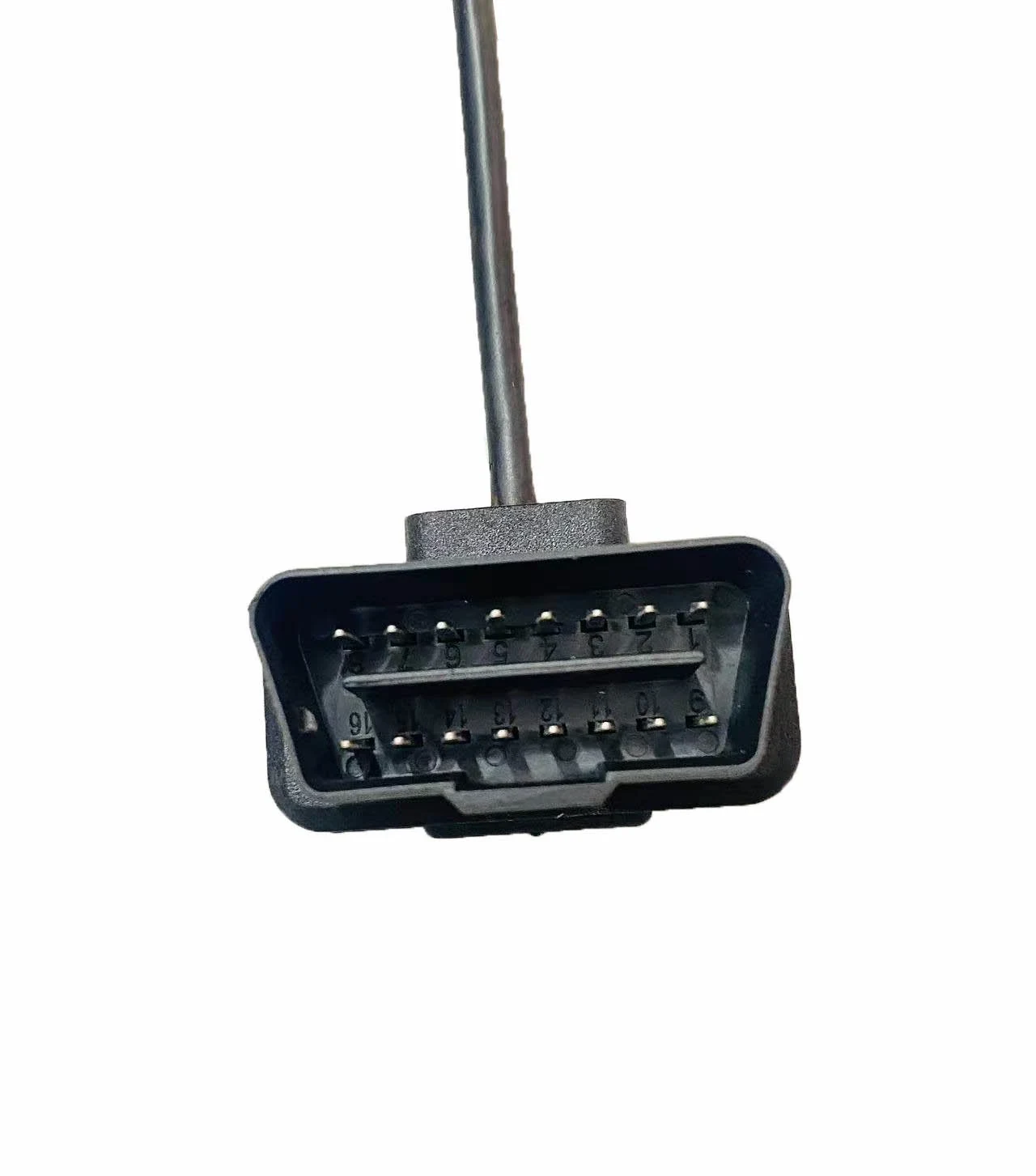

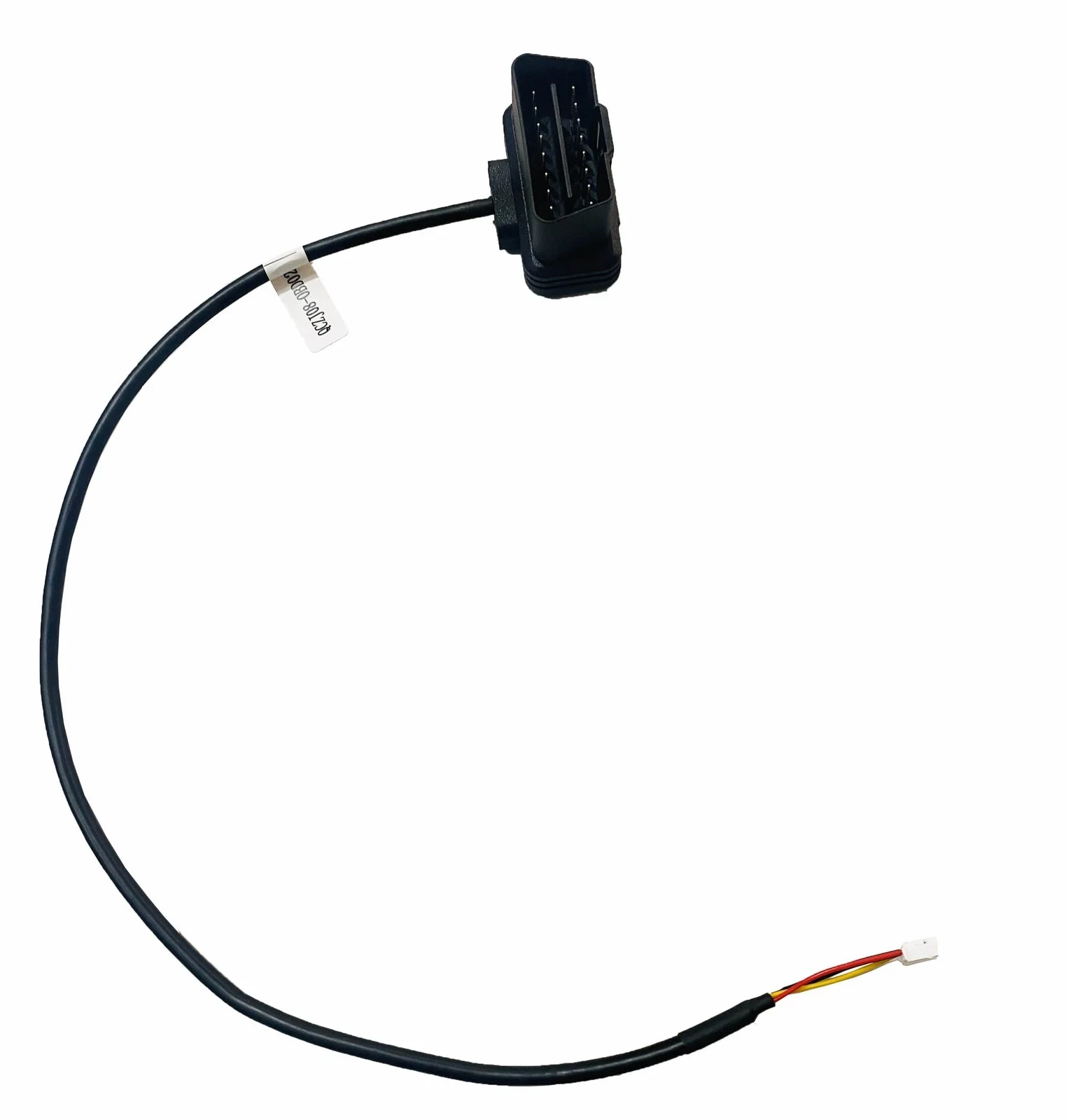

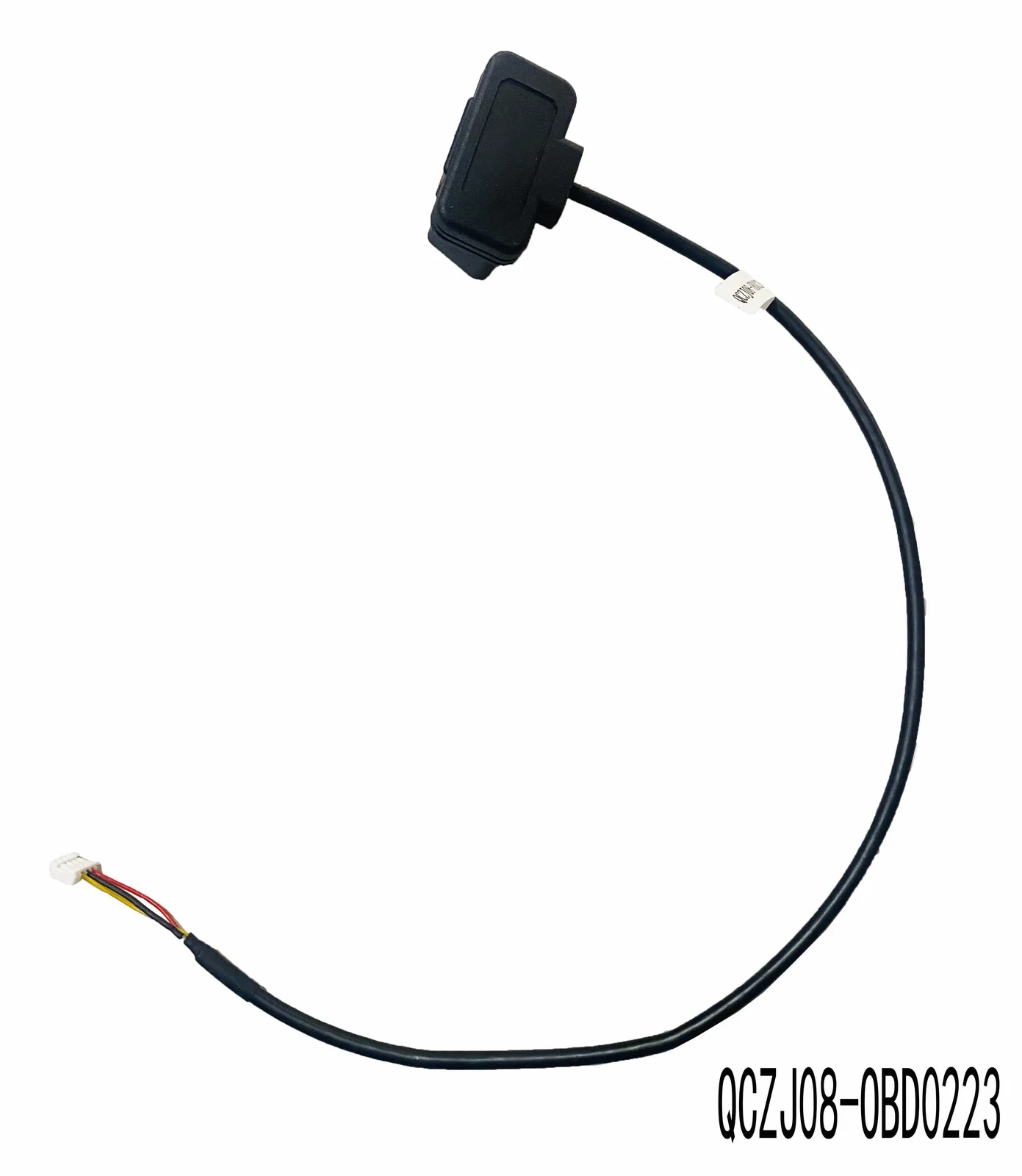

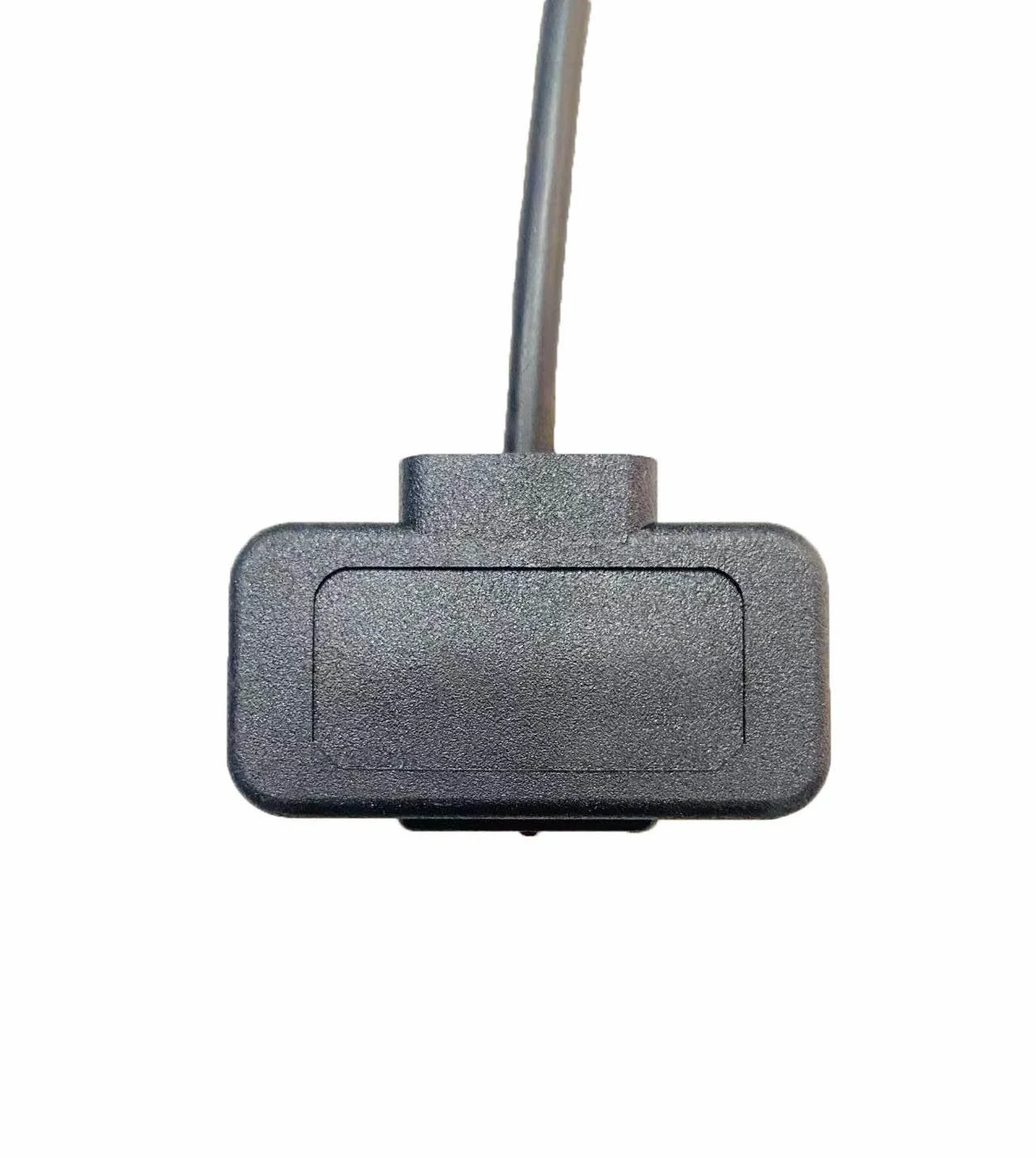

The Ultra-Thin OBD CAN Adapter Cable (Article No.: QCZJ08-OBD0223) is a universal diagnostic interface solution designed for seamless vehicle communication. This compact cable facilitates reliable data transmission between OBD ports and diagnostic tools, serving automotive engineers, fleet maintenance teams, and industrial procurement specialists who require standardized connectivity for vehicle diagnostics and system integration.

Engineered for high-density packaging, this adapter utilizes a slim profile to fit into tight dashboard or under-dash compartments without interfering with surrounding components. The construction employs RoHS-compliant raw materials to ensure environmental safety and durability. While specific pin counts and voltage ratings are not listed in the general specifications, the cable supports standard CAN bus protocols for universal application across various vehicle architectures.

We support OEM/ODM customization for specific connector types and cable lengths to meet precise engineering requirements. To obtain an accurate quotation, please provide your required connector interface, cable length, and total quantity. Our facility operates under an ISO 9001-certified quality management system and is audited by TÜV Rheinland, ensuring consistent production standards. All raw materials are RoHS compliant, with supplier SGS RoHS test reports available for applicable wire materials. Please contact us to confirm production lead times and request a quote.

Key Features

Ultra-Thin Design: Compact form factor allows installation in confined spaces without bulk or interference.
Universal Compatibility: Designed as a general-purpose OBD line for broad diagnostic interface applications.
RoHS Compliant Materials: Manufactured using raw materials that meet RoHS standards, with SGS test reports available for wire materials.
Quality Certified Production: Produced in a factory audited by TÜV Rheinland under an ISO 9001-certified quality management system.
OEM/ODM Support: Customizable specifications available to meet specific connector or length requirements.
Standardized Connectivity: Supports standard CAN bus communication protocols for reliable diagnostic data transfer.
